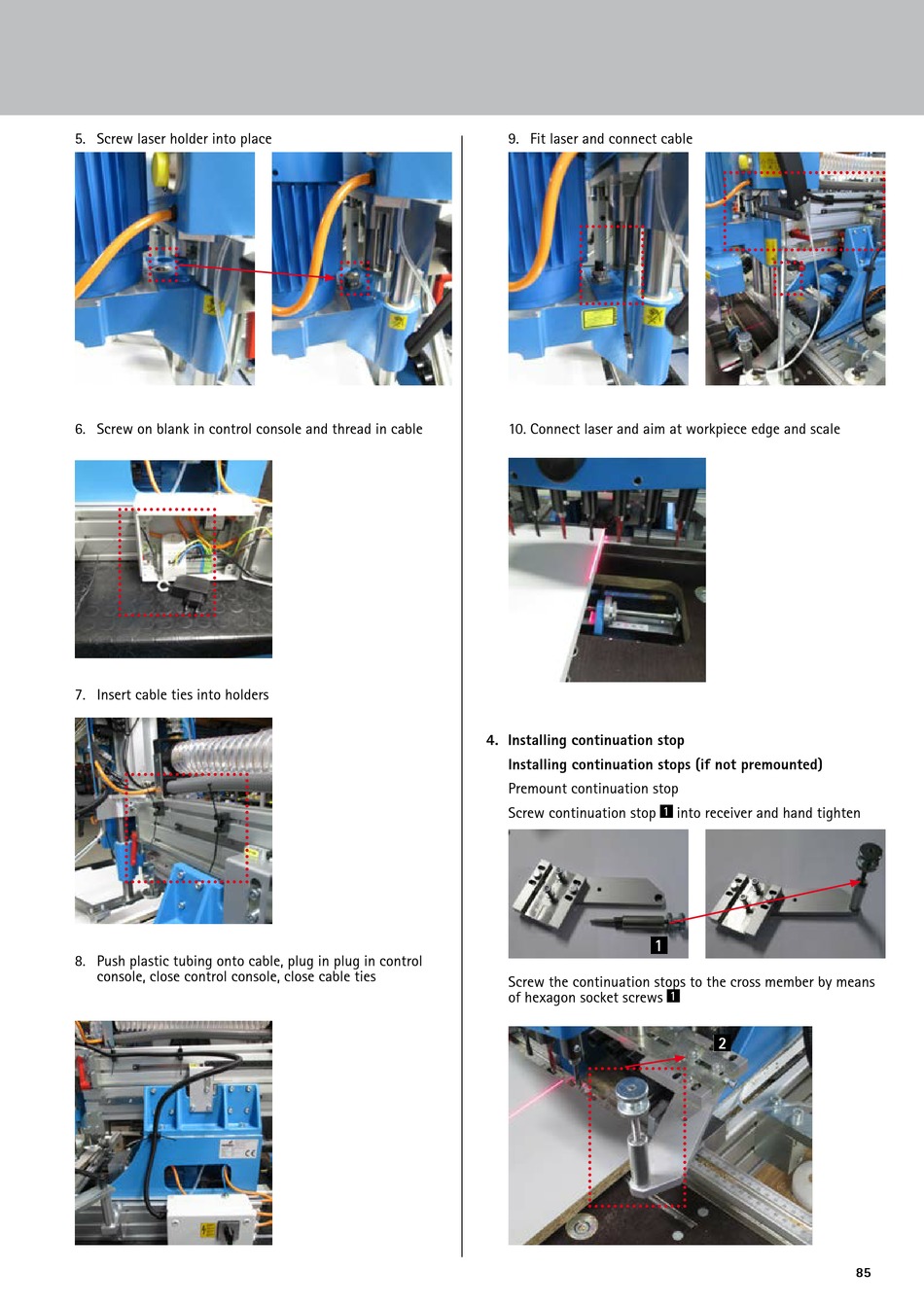

5. Screw laser holder into place
6. Screw on blank in control console and thread in cable
7. Insert cable ties into holders
8. Push plastic tubing onto cable, plug in plug in control
console, close control console, close cable ties
9. Fit laser and connect cable
10. Connect laser and aim at workpiece edge and scale

4. Installing continuation stop

Installing continuation stops (if not premounted)
Premount continuation stop
Screw continuation stop
1
1
Screw the continuation stops to the cross member by means
of hexagon socket screws
into receiver and hand tighten
1
2
