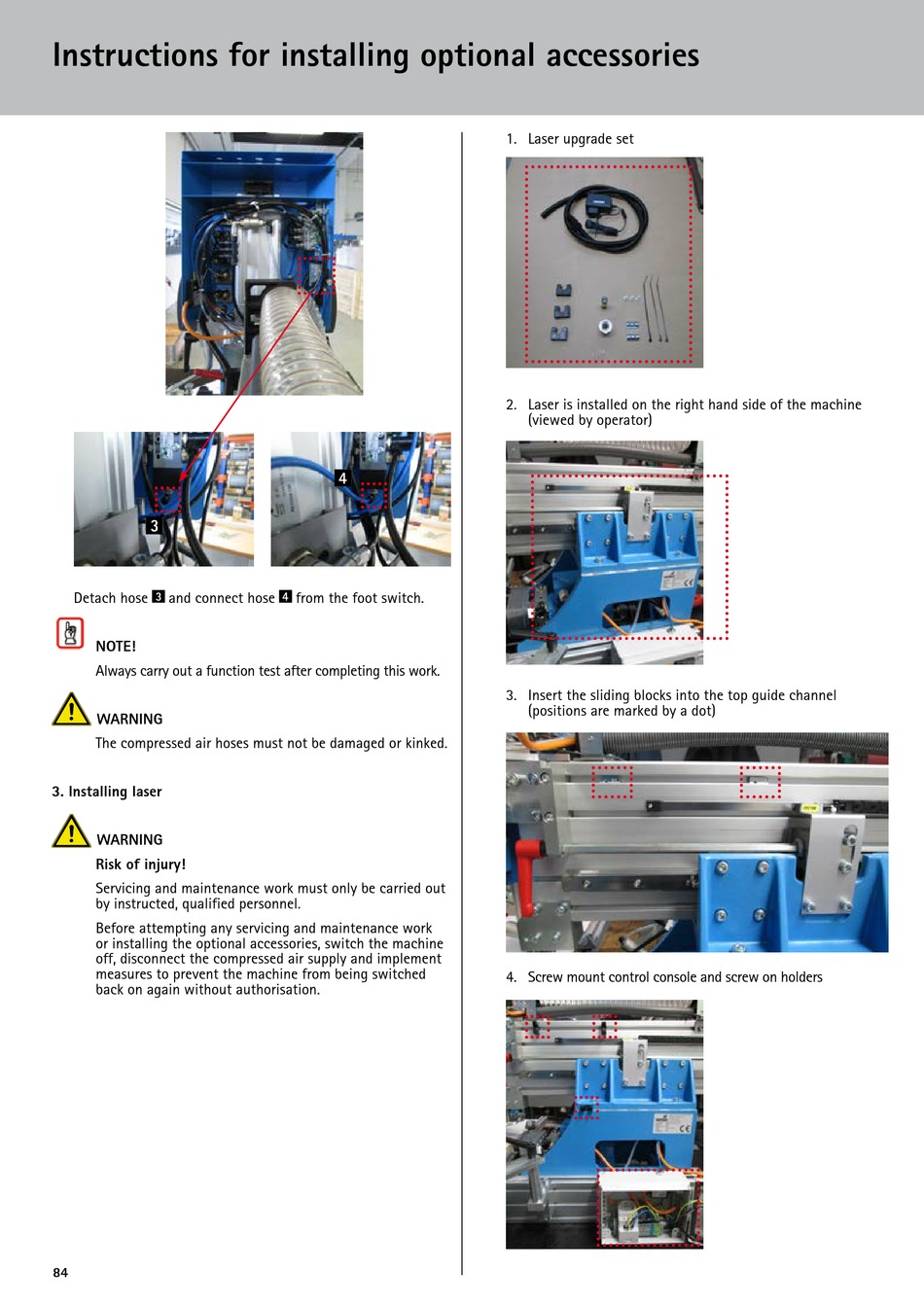

Installing Laser - Hettich BlueMax Mini Modular Plus Operating Manual

Instructions for installing optional accessories
3
Detach hose and connect hose
3
NOTE!
Always carry out a function test after completing this work.
WARNING
The compressed air hoses must not be damaged or kinked.

3. Installing laser

WARNING
Risk of injury!
Servicing and maintenance work must only be carried out
by instructed, qualified personnel.
Before attempting any servicing and maintenance work
or installing the optional accessories, switch the machine
off, disconnect the compressed air supply and implement
measures to prevent the machine from being switched
back on again without authorisation.
84
4
from the foot switch.
4
1. Laser upgrade set
2. Laser is installed on the right hand side of the machine
(viewed by operator)
3. Insert the sliding blocks into the top guide channel
(positions are marked by a dot)
4. Screw mount control console and screw on holders
