Setting up

Switching on

Preparatory work
• Connect to the power supply by plugging in the mains plug
• Connect to compressed air supply and switch this on
• Prepare material (panels, hinges, connectors etc.)
Operation
You can operate the machine either via foot switch or
pushbutton on the control unit. The machine cannot be
operated via foot switch and pushbutton at the same time.
1

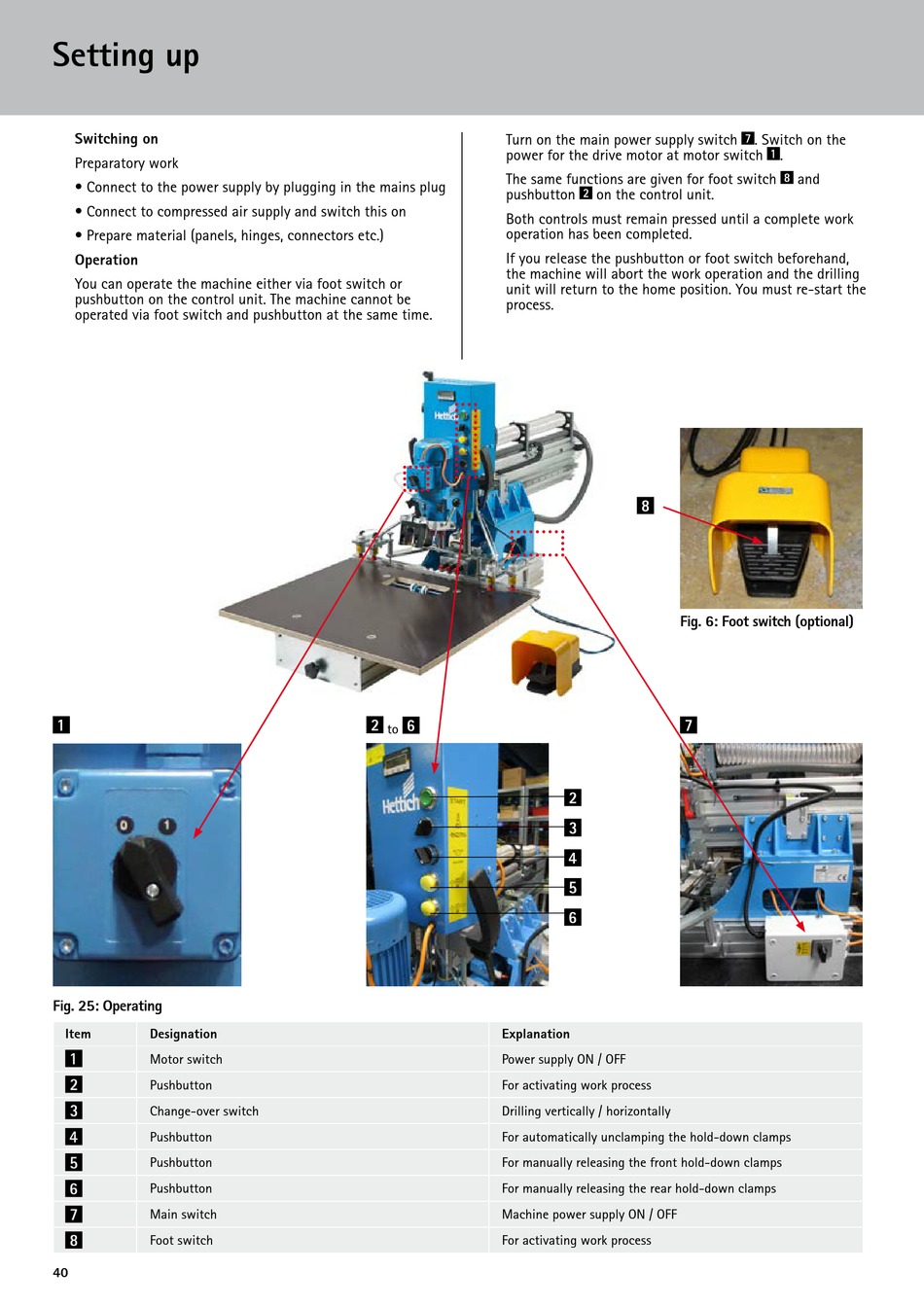

Fig. 25: Operating
Item Designation
1 Motor switch
2
Pushbutton
3
Change-over switch
4 Pushbutton
5
Pushbutton
6
Pushbutton
7 Main switch
8
Foot switch
40 40
Turn on the main power supply switch
power for the drive motor at motor switch
The same functions are given for foot switch
pushbutton
Both controls must remain pressed until a complete work
operation has been completed.
If you release the pushbutton or foot switch beforehand,
the machine will abort the work operation and the drilling
unit will return to the home position. You must re-start the
process.
2 6
to
Explanation
Power supply ON / OFF
For activating work process
Drilling vertically / horizontally
For automatically unclamping the hold-down clamps
For manually releasing the front hold-down clamps
For manually releasing the rear hold-down clamps
Machine power supply ON / OFF
For activating work process
on the control unit.
2
8
Fig. 6: Foot switch (optional)
7
2
3
4
5
6
. Switch on the
7
.
1
and
8
