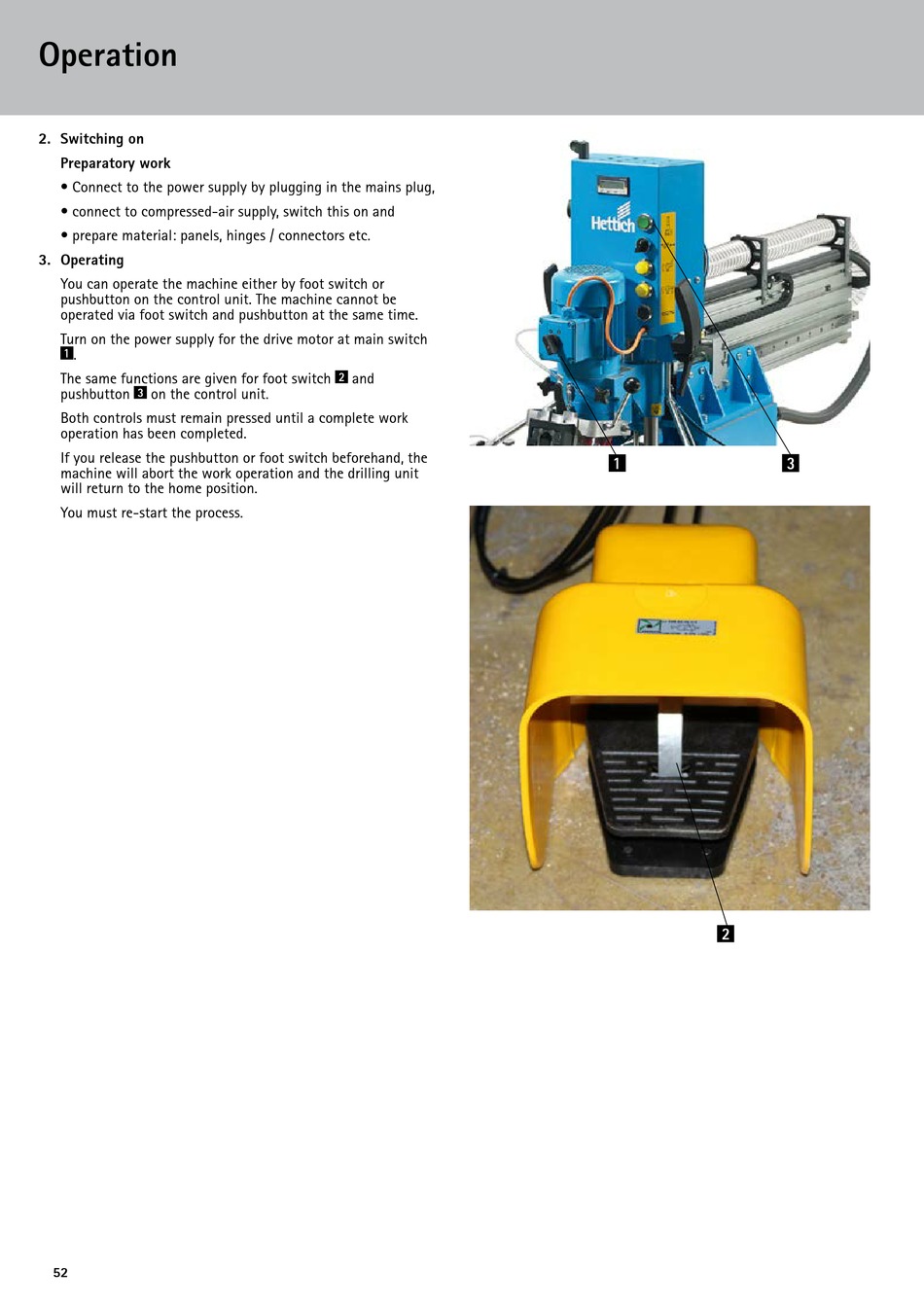

Operation
2. Switching on
Preparatory work
• Connect to the power supply by plugging in the mains plug,
• connect to compressed-air supply, switch this on and
• prepare material: panels, hinges / connectors etc.

3. Operating

You can operate the machine either by foot switch or
pushbutton on the control unit. The machine cannot be
operated via foot switch and pushbutton at the same time.
Turn on the power supply for the drive motor at main switch
.
1
The same functions are given for foot switch
pushbutton on the control unit.
3
Both controls must remain pressed until a complete work
operation has been completed.
If you release the pushbutton or foot switch beforehand, the
machine will abort the work operation and the drilling unit
will return to the home position.
You must re-start the process.
