Technical information

4. Equipment

Switches and other controls for operating and
monitoring the machine are described below.
1

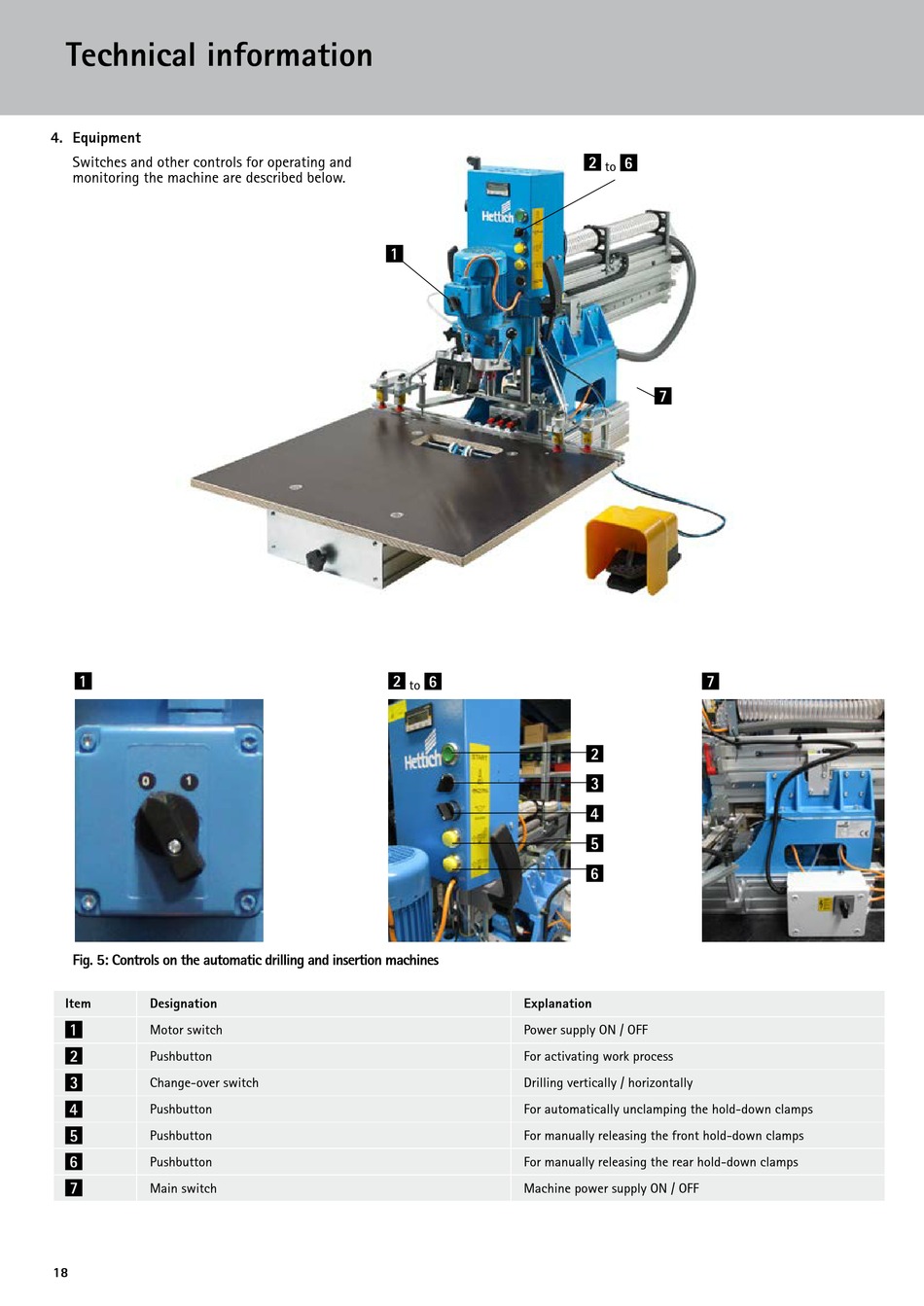

Fig. 5: Controls on the automatic drilling and insertion machines
Item Designation
1
Motor switch
2
Pushbutton
3
Change-over switch
4
Pushbutton
5
Pushbutton
6 Pushbutton
7 Main switch
18 18 18
1
2 6
to
Explanation
Power supply ON / OFF
For activating work process
Drilling vertically / horizontally
For automatically unclamping the hold-down clamps
For manually releasing the front hold-down clamps
For manually releasing the rear hold-down clamps
Machine power supply ON / OFF
2 6
to
7
7
2
3
4
5
6
