Start up / trial run

5. Machine versions supplied

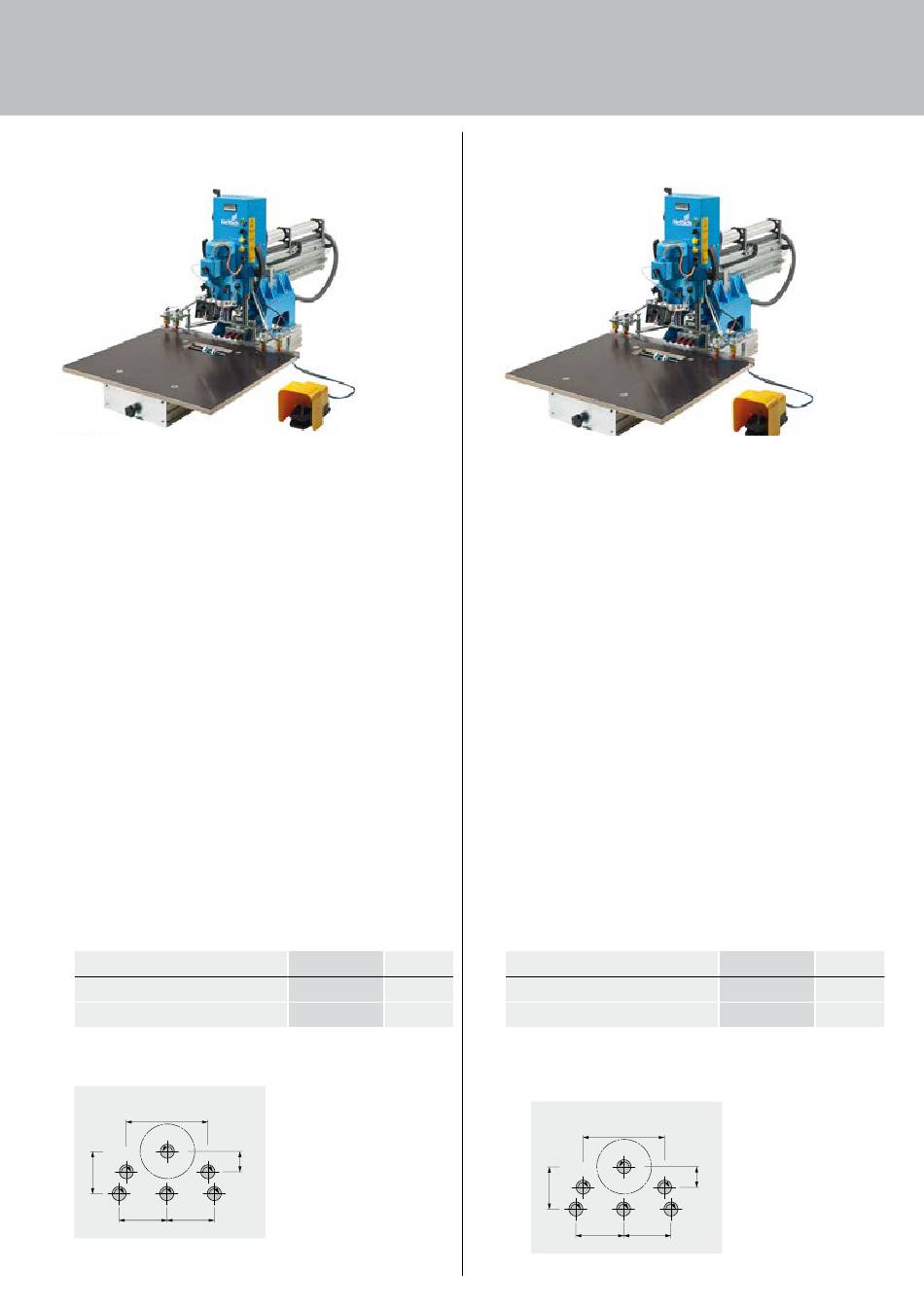

BlueMax Mini Modular Plus with accessories
Compact automatic drilling and insertion machine with
interchangeable drilling unit
• Pneumatic stroke movement
• Mechanical drilling stroke limiter
• Drum stops for 22, 37, 57 mm
• 600 mm depth adjustment with LCD display
• 1 interchangeable drilling unit, 6 spindles and quick
change chuck
• 6 drill holders for quick change chuck
• 1 tool shelf
• 4 hold-down clamps (2 left / 2 right)
• 1 centre stop with scale
• 2 continuation stops (left / right)
• 1 laser
• 2 pendulum stops
• Power supply: 400 V / 50 Hz / 3 phases
• Motors: vertical drilling unit 1.1 kW / horizontal drilling
unit 0.55 kW
• Space required: 800 mm width x 1870 mm depth x 920 mm height
• Accessories press in frame, foot switch, insertion dies and
drill bits must be ordered separately
Article type
without horizontal drilling unit
with horizontal drilling unit, 3 spindles 9 206 114
Drilling pattern
52
L
R R
32
R R R
32 32
28
Order no. PU
9 206 112
1 ea.
1 ea.
5,5
BlueMax Mini Modular Plus without accessories
Compact automatic drilling and insertion machine with
interchangeable drilling unit
• Pneumatic stroke movement
• Mechanical drilling stroke limiter
• Drum stops for 22, 37, 57 mm
• 600 mm depth adjustment with LCD display
• 1 interchangeable drilling unit, 6 spindles and quick
change chuck
• 6 drill holders for quick change chuck
• 1 tool shelf
• 4 hold-down clamps (2 left / 2 right)
• 1 centre stop with scale
• 2 pendulum stops
• Power supply: 400 V / 50 Hz / 3 phases
• Motors: vertical drilling unit 1.1 kW / horizontal drilling
unit 0.55 kW
• Space required: 800 mm width x 1870 mm depth x 920 mm height
• Accessories insertion dies and drill bits must be ordered
separately
Article type
without horizontal drilling unit
with horizontal drilling unit, 3 spindles 9 206 113
Drilling pattern
52
L
R R
32
R R R
32 32
Order no. PU
9 206 111
1 ea.
1 ea.
5,5
