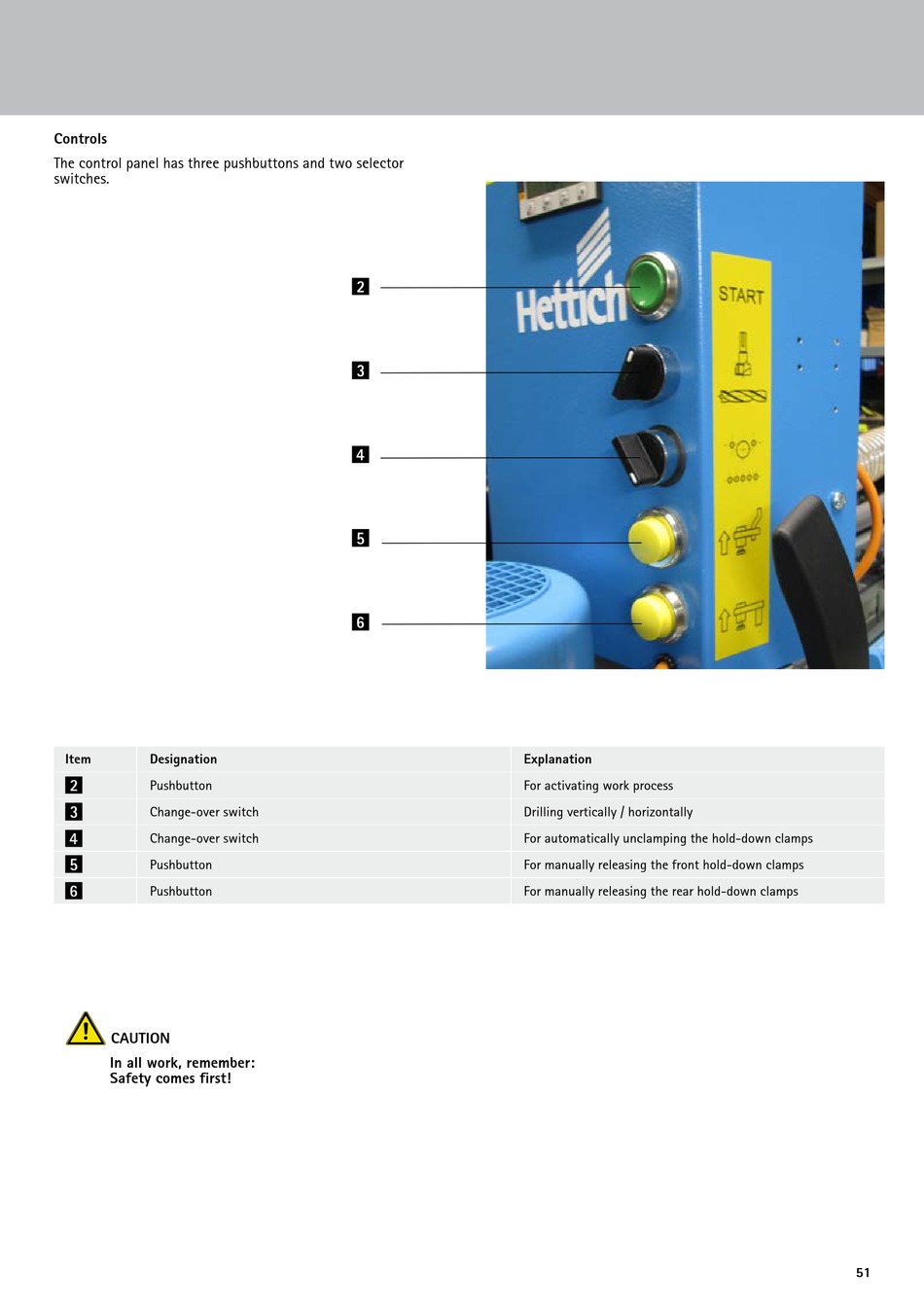

Controls
The control panel has three pushbuttons and two selector
switches.
Item Designation
2
Pushbutton
3 Change-over switch
4 Change-over switch
5
Pushbutton
6
Pushbutton
CAUTION
In all work, remember:
Safety comes first!
2
3
4
5
6
Explanation
For activating work process
Drilling vertically / horizontally
For automatically unclamping the hold-down clamps
For manually releasing the front hold-down clamps
For manually releasing the rear hold-down clamps
51
