Setting

WARNING
Setup work may only be performed by qualified staff who,
on the basis of their specialised training, experience and
instruction, possess sufficient knowledge of
• safety rules
• accident prevention regulations
• guidelines and generally accepted codes of practice
These qualified staff must be authorised to perform
setting up work by the person responsible for the
machine's safety.

5. Safety guards

Separating protective guards complying with EN 953 are
installed on the machine to protect staff from mechanical
hazards.
Warnings / pictograms are also provided on the machine.

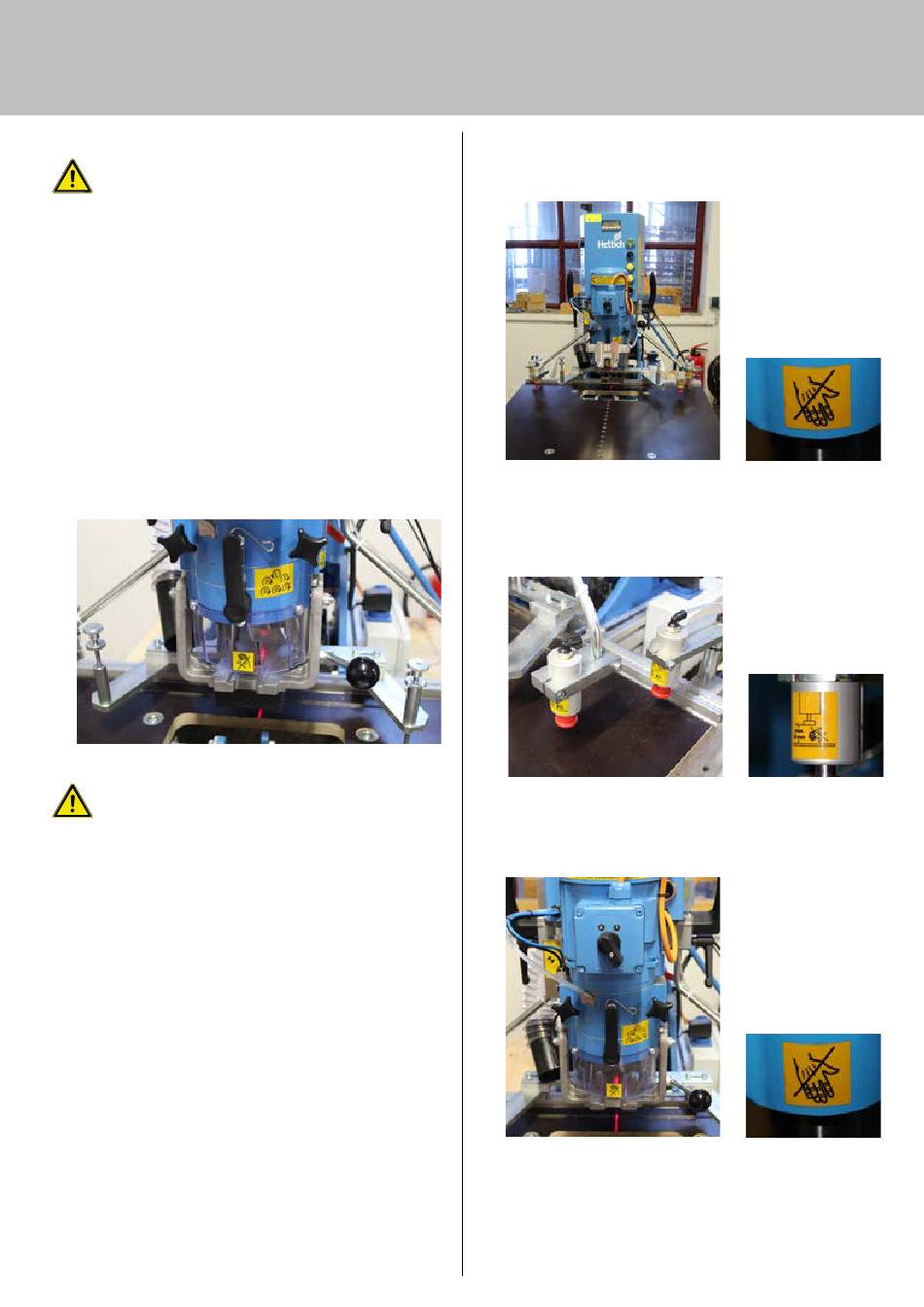

Fig. 9: Transparent cover
WARNING
The guards must not be modified, tampered with or taken
out of operation.
The machine has no emergency STOP button or emergency
stop facility. This means it is necessary to take particular
care when handling and working with this machine.
22 22
Labelling
Area: entire machine
Warning of the risk of hands being crushed
Fig. 10: Labelling – entire machine
Area: hold-down clamps
Warning of the risk of hands being crushed
Fig. 11: Labelling – hold-down clamps
Area: protective cover on tools
Warning of the risk of hands being crushed
Fig. 12: Labelling – drilling and insertion unit
