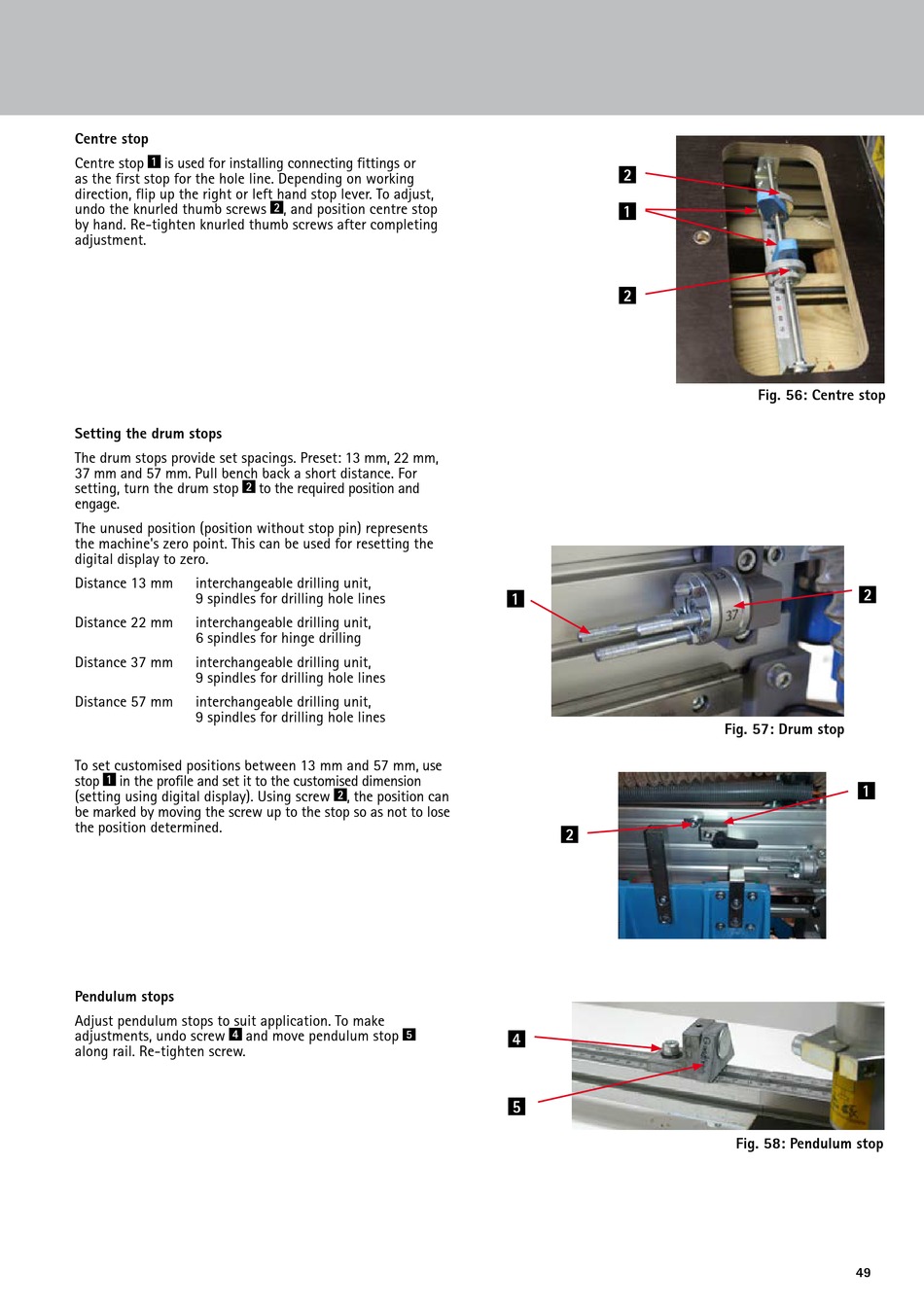

Centre stop

Centre stop

is used for installing connecting fittings or
1
as the first stop for the hole line. Depending on working
direction, flip up the right or left hand stop lever. To adjust,
undo the knurled thumb screws
by hand. Re-tighten knurled thumb screws after completing
adjustment.

Setting the drum stops

The drum stops provide set spacings. Preset: 13 mm, 22 mm,
37 mm and 57 mm. Pull bench back a short distance. For
setting, turn the drum stop
2
engage.
The unused position (position without stop pin) represents
the machine's zero point. This can be used for resetting the
digital display to zero.
Distance 13 mm interchangeable drilling unit,
9 spindles for drilling hole lines
Distance 22 mm interchangeable drilling unit,
6 spindles for hinge drilling
Distance 37 mm interchangeable drilling unit,
9 spindles for drilling hole lines
Distance 57 mm interchangeable drilling unit,
9 spindles for drilling hole lines
To set customised positions between 13 mm and 57 mm, use
stop in the profile and set it to the customised dimension
1
(setting using digital display). Using screw
be marked by moving the screw up to the stop so as not to lose
the position determined.

Pendulum stops

Adjust pendulum stops to suit application. To make
adjustments, undo screw and move pendulum stop
4
along rail. Re-tighten screw.
, and position centre stop
2
to the required position and
, the position can
2
5
2
1
2
1
2
4
5
Fig. 56: Centre stop
2
Fig. 57: Drum stop
1
Fig. 58: Pendulum stop
49
