Push pre-mounted tool into tool holder
4
of interchangeable drilling unit
turn in opposite direction of drilling-unit
rotation.
The bayonet chuck engages.
Repeat this process until all tools
are securely engaged.
Always close off unneeded tool holders
with a dummy plug .
6
Always check your work before fitting
the interchangeable drilling unit.
The drill bits must engage and all screws
must be tight.
NOTE
Pay attention to colour marking!
Drill bits marked red must be used for spindles turning
anticlockwise.
Interchangeable drilling unit, 6 spindles, interchangeable
drilling unit, 3 spindles (Selekta 22/9)
This interchangeable drilling unit is used for drilling receiving
holes and for inserting hinges and connecting fittings.
Fit tools (drill bits) on a work bench.

Interchangeable drilling unit, 9 spindles

This interchangeable drilling unit is used for creating hole
lines.
Drilling pattern
L L
L
R R
32 32 32 32 32
256
and
5
1
2
L
L
R
R
32 32 32

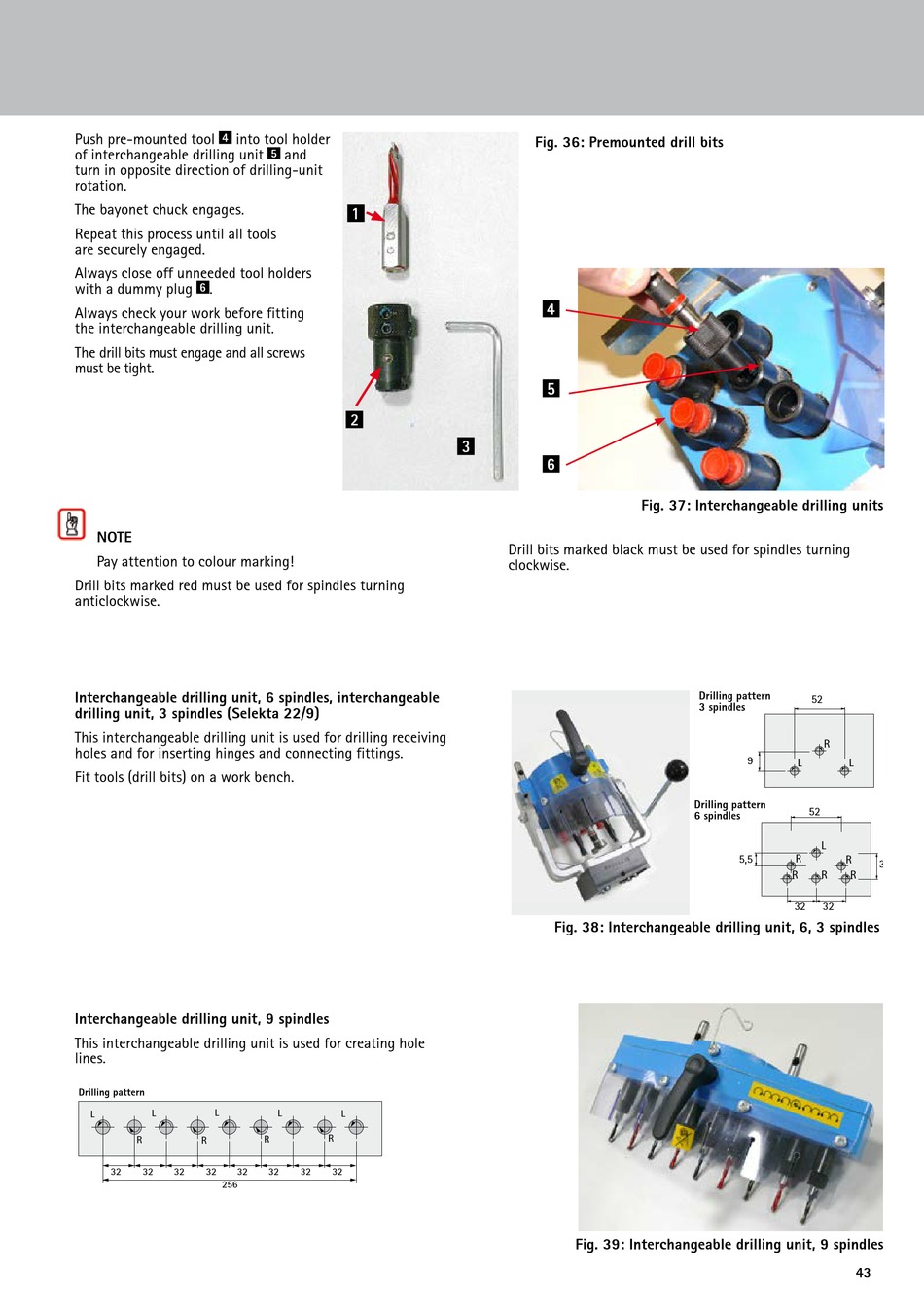

Fig. 36: Premounted drill bits
4
5
3
6
Drill bits marked black must be used for spindles turning
clockwise.
Drilling pattern
52
3 spindles
R
9
L
Fig. 38: Interchangeable drilling unit, 6, 3 spindles
Fig. 39: Interchangeable drilling unit, 9 spindles
Fig. 37: Interchangeable drilling units
Drilling pattern
52
3 spindles
9
L
Drilling pattern
52
6 spindles
R
5,5
L
R
32
Drilling
6 spind
R
L
L
R
32
R R
32
