Start up / trial run

8. Assemblies

Press in frame for the interchangeable drilling unit, 6 spindles

The press in frame comes dismantled and must be assembled
as illustrated. The press in frame must only be used in
conjunction with this 6 spindle interchangeable drilling unit.

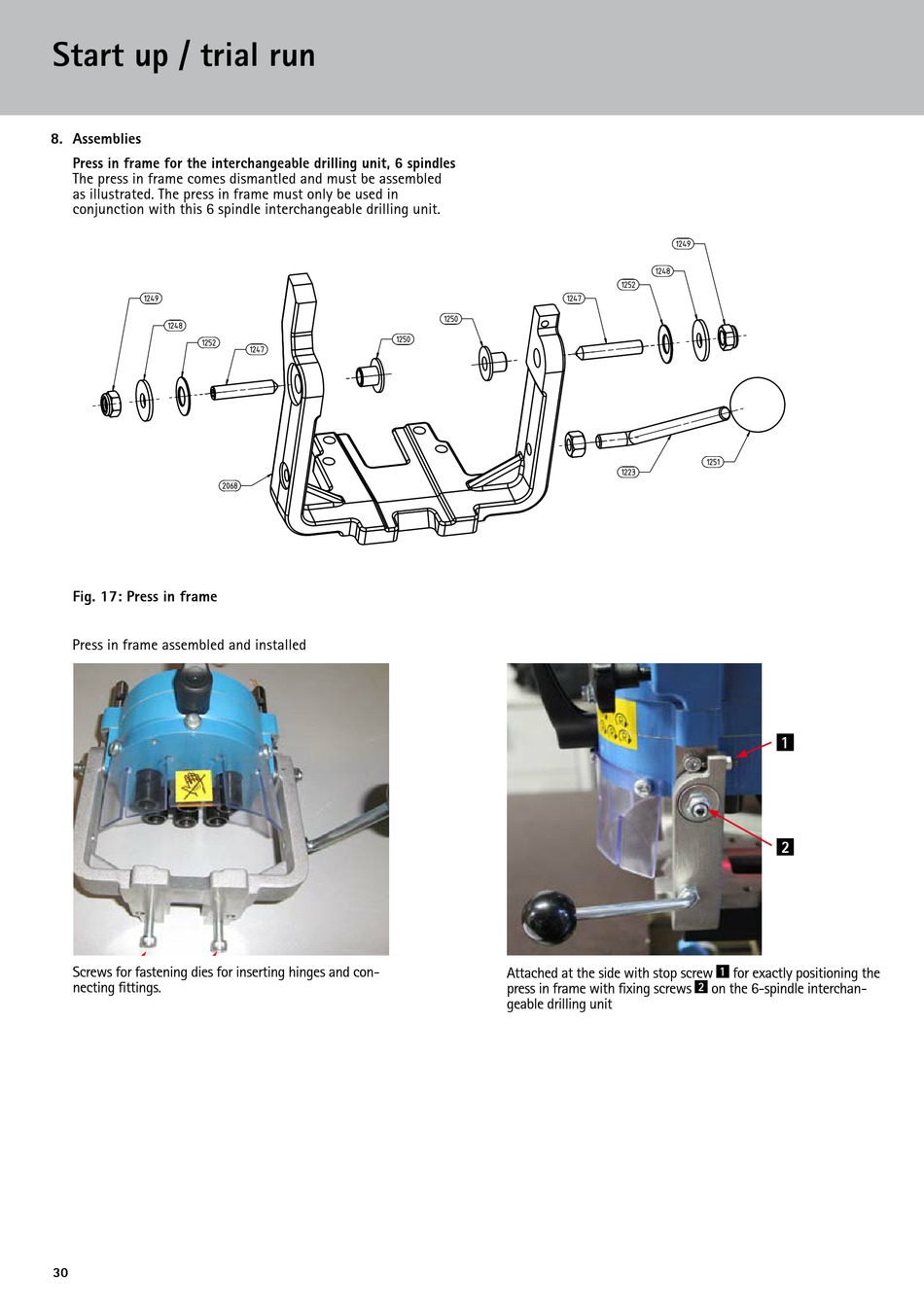

Fig. 17: Press in frame
Press in frame assembled and installed
Screws for fastening dies for inserting hinges and con-
necting fittings.
30
Attached at the side with stop screw
press in frame with fixing screws
geable drilling unit
1
2
for exactly positioning the
1
on the 6-spindle interchan-
2
