Start up / trial run

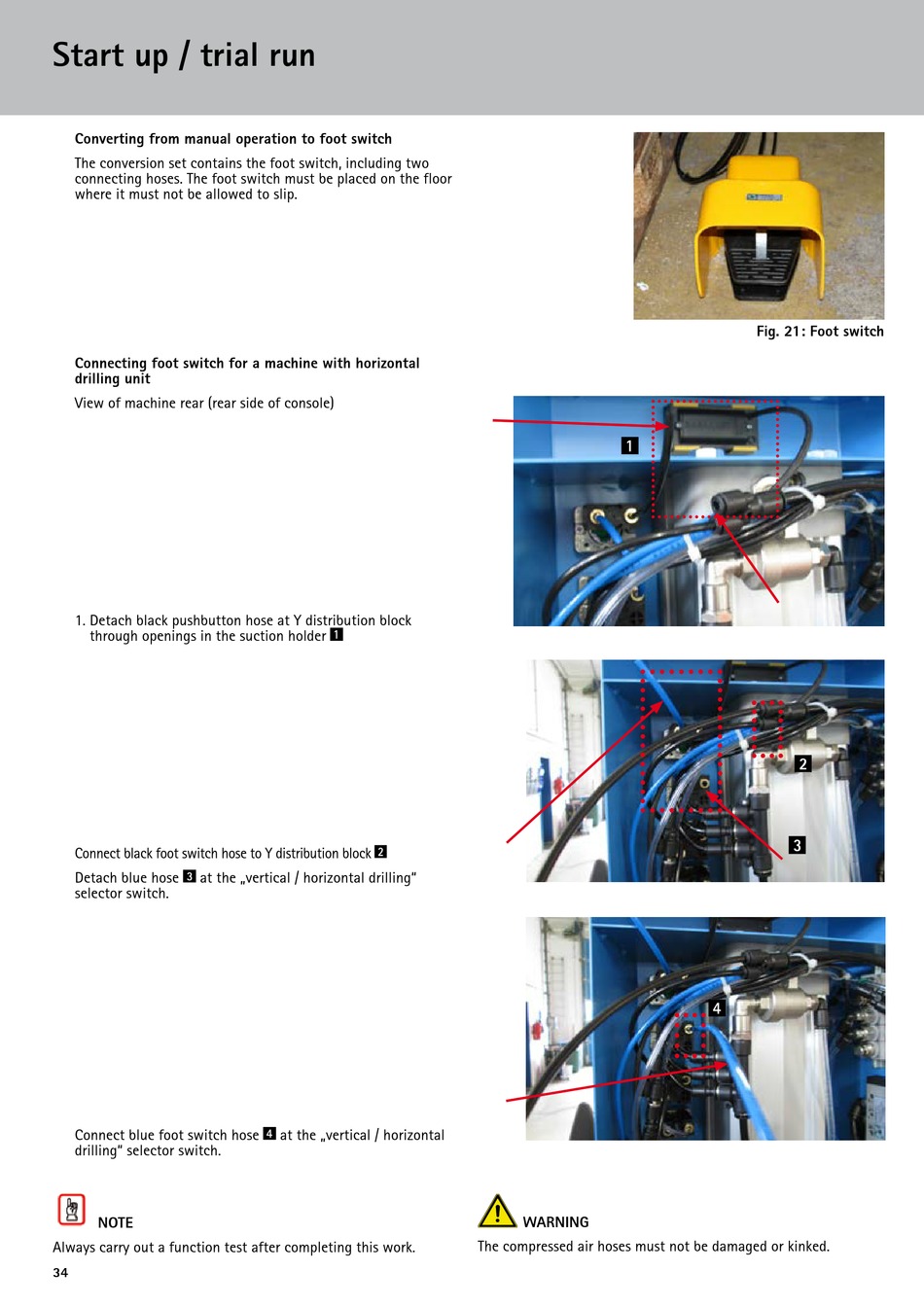

Converting from manual operation to foot switch

The conversion set contains the foot switch, including two
connecting hoses. The foot switch must be placed on the floor
where it must not be allowed to slip.
Connecting foot switch for a machine with horizontal
drilling unit
View of machine rear (rear side of console)
1. Detach black pushbutton hose at Y distribution block
through openings in the suction holder
Connect black foot switch hose to Y distribution block
Detach blue hose at the „vertical / horizontal drilling"
3
selector switch.
Connect blue foot switch hose
drilling" selector switch.
NOTE
Always carry out a function test after completing this work.
34
1
2
at the „vertical / horizontal
4
1
WARNING
The compressed air hoses must not be damaged or kinked.
Fig. 21: Foot switch
2
3
4
