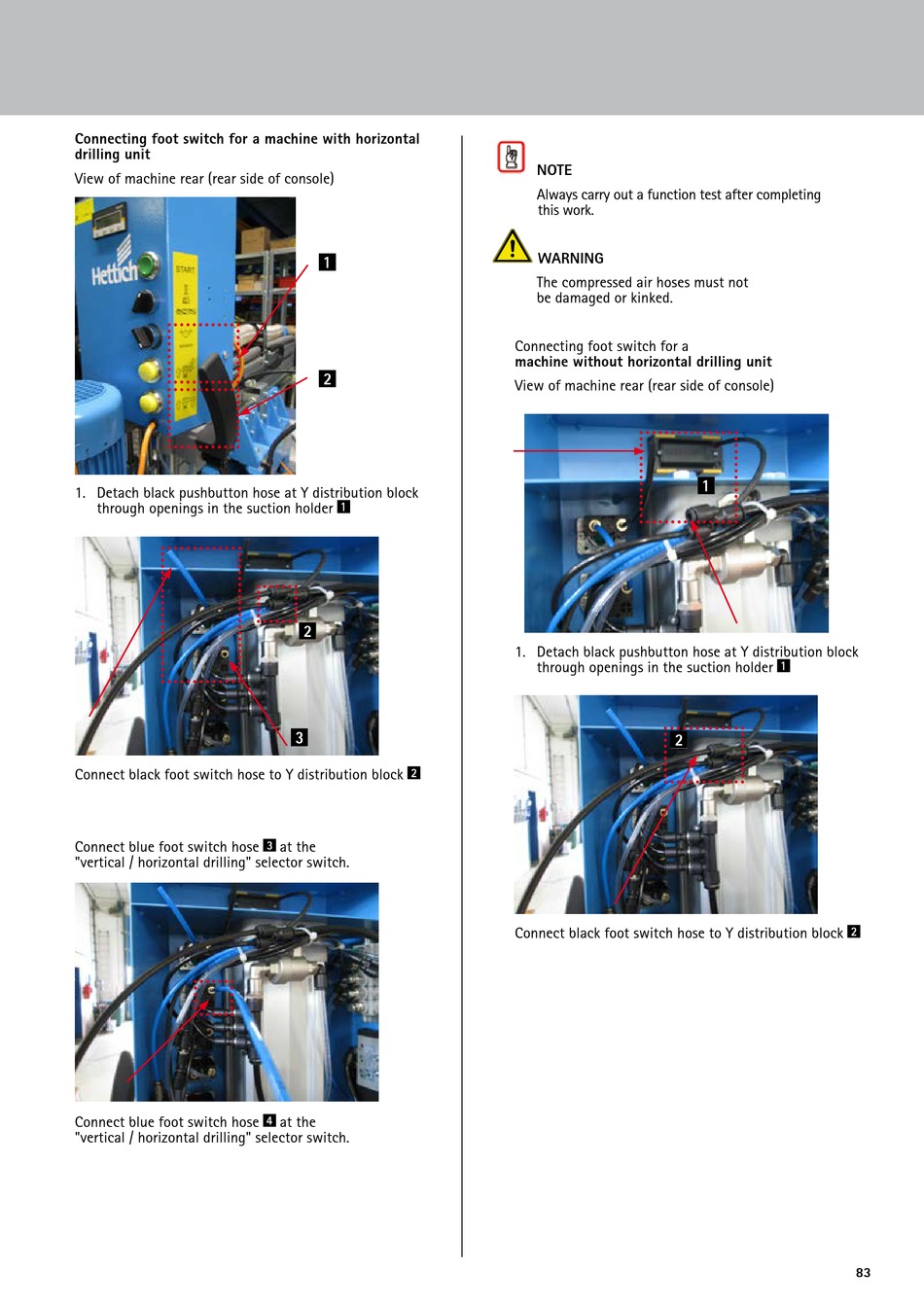

With Horizontal Drilling Unit - Hettich BlueMax Mini Modular Plus Operating Manual

Connecting foot switch for a machine with horizontal
drilling unit
View of machine rear (rear side of console)
1. Detach black pushbutton hose at Y distribution block
through openings in the suction holder
Connect black foot switch hose to Y distribution block
Connect blue foot switch hose
"vertical / horizontal drilling" selector switch.
Connect blue foot switch hose
"vertical / horizontal drilling" selector switch.
1
2
1
2
3
2
at the
3
at the
4
NOTE
Always carry out a function test after completing
this work.
WARNING
The compressed air hoses must not
be damaged or kinked.
Connecting foot switch for a
machine without horizontal drilling unit
View of machine rear (rear side of console)
1. Detach black pushbutton hose at Y distribution block
through openings in the suction holder
2
Connect black foot switch hose to Y distribution block
1
1
2
