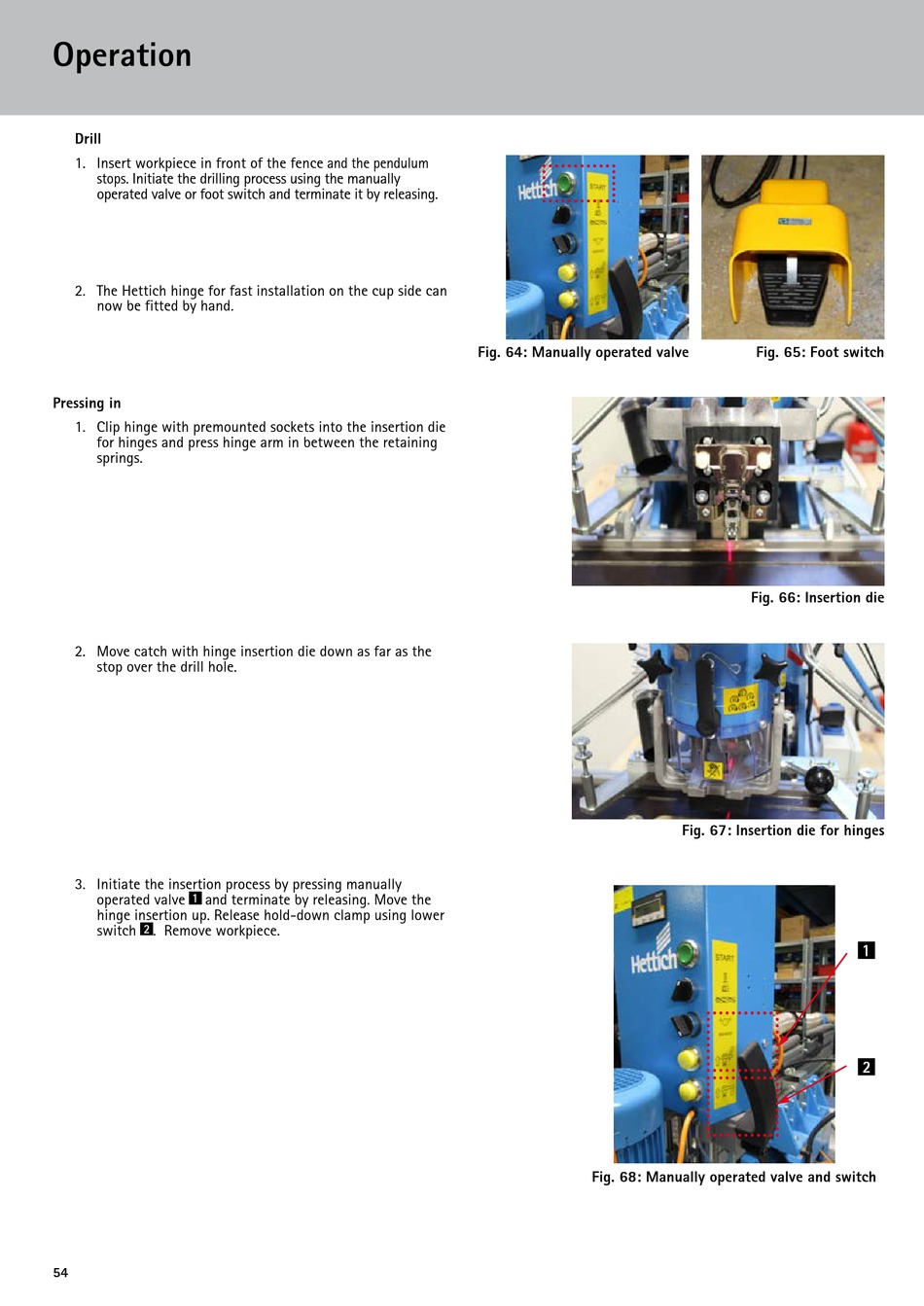

Operation
Drill
1. Insert workpiece in front of the fence and the pendulum
stops. Initiate the drilling process using the manually
operated valve or foot switch and terminate it by releasing.
2. The Hettich hinge for fast installation on the cup side can
now be fitted by hand.

Pressing in

1. Clip hinge with premounted sockets into the insertion die
for hinges and press hinge arm in between the retaining
springs.
2. Move catch with hinge insertion die down as far as the
stop over the drill hole.
3. Initiate the insertion process by pressing manually
operated valve
and terminate by releasing. Move the
1
hinge insertion up. Release hold-down clamp using lower
switch . Remove workpiece.
2
54
Fig. 64: Manually operated valve
Fig. 68: Manually operated valve and switch
Fig. 65: Foot switch
Fig. 66: Insertion die
Fig. 67: Insertion die for hinges
1
2
