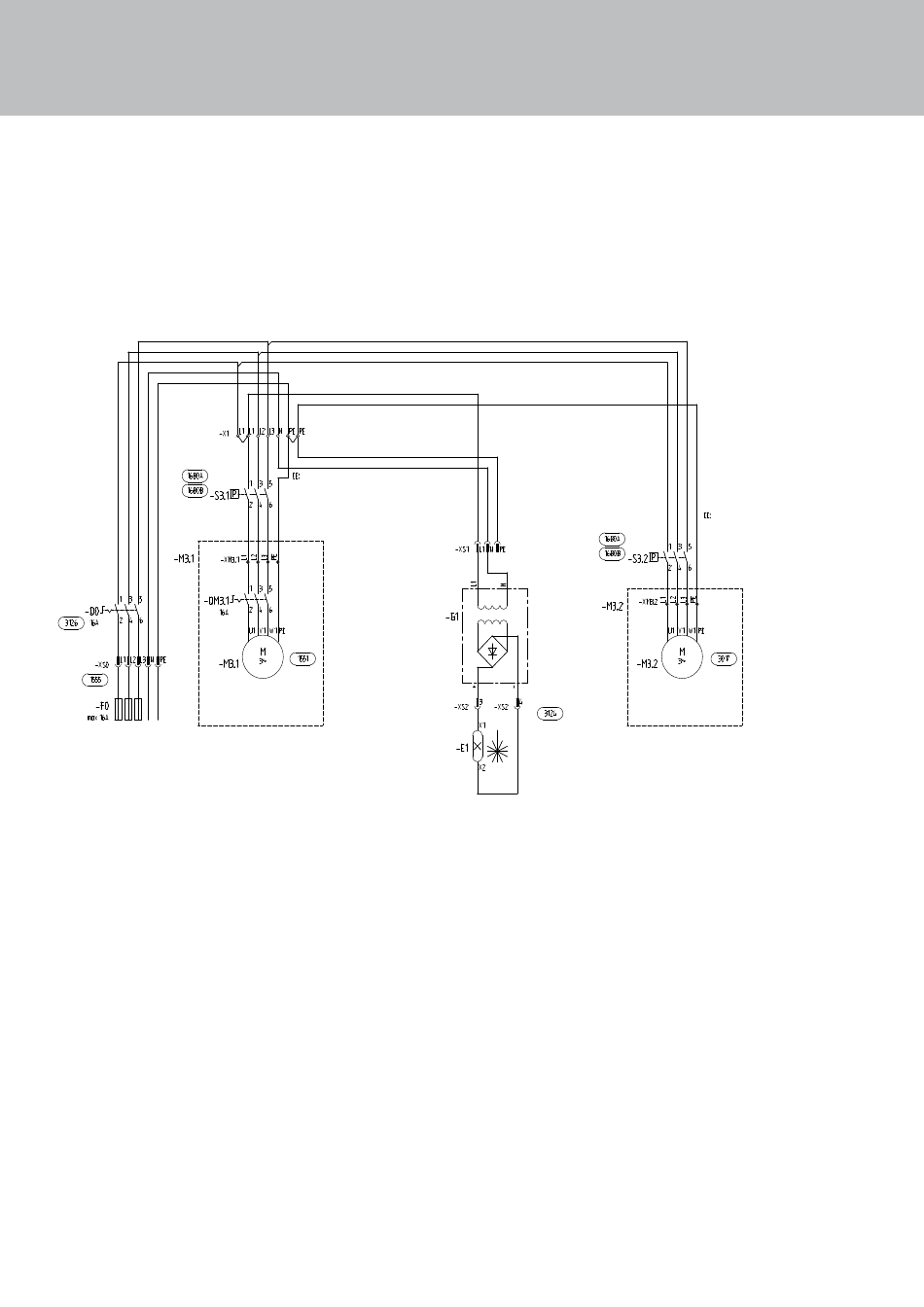

27. Circuit diagram

Mains power fuse protection
to be provided by customer
BlueMaxMini Modular Plus
3-phase
Vertical drilling unit motor
1 and 2: grey; 3 and 4: brown; 5 and 6: black; PE: green/yellow
UL/CSA:
1 and 2: red; 3 and 4: brown; 5 and 6: black;
PE: or with green/yellow
P = see order
U = see order
I = see order
n = 2800 U/min
Laser set
is optional
Horizontal drilling unit motor
Laser
1 and 2: grey; 3 and 4: brown; 5 and 6: black;
PE: green/yellow
UL/CSA:
1 and 2: red; 3 and 4: brown; 5 and 6: black;
PE: or with green/yellow
P = see order
U = see order
I = see order
n = 2800 U/min
is optional
