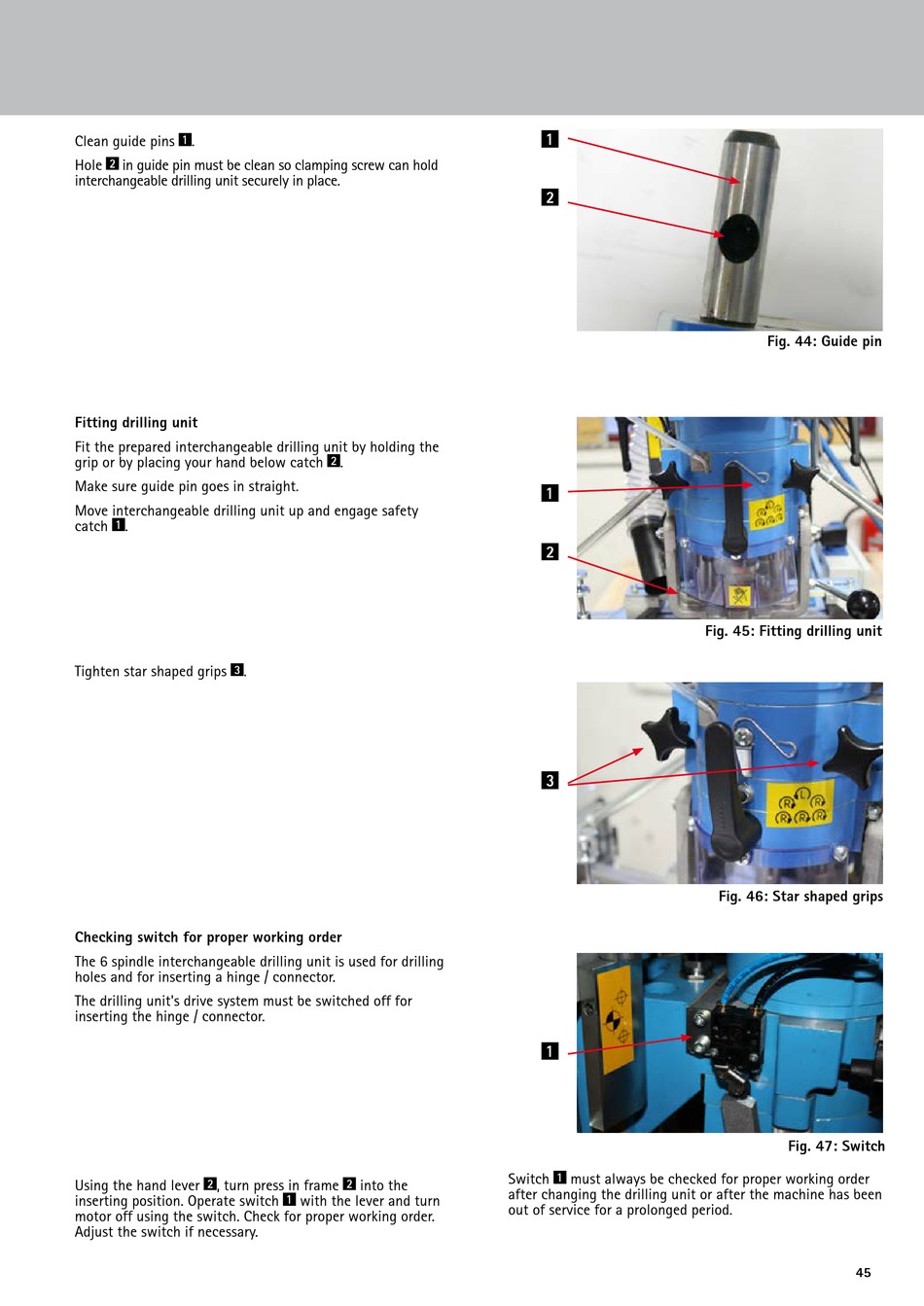

Fitting Drilling Units; Checking Switch For Proper Working Order - Hettich BlueMax Mini Modular Plus Operating Manual

Clean guide pins .
1
Hole in guide pin must be clean so clamping screw can hold
2
interchangeable drilling unit securely in place.
Fitting drilling unit
Fit the prepared interchangeable drilling unit by holding the
grip or by placing your hand below catch
Make sure guide pin goes in straight.
Move interchangeable drilling unit up and engage safety
catch .
1
Tighten star shaped grips .
3

Checking switch for proper working order

The 6 spindle interchangeable drilling unit is used for drilling
holes and for inserting a hinge / connector.
The drilling unit's drive system must be switched off for
inserting the hinge / connector.
Using the hand lever , turn press in frame
2
inserting position. Operate switch
motor off using the switch. Check for proper working order.
Adjust the switch if necessary.
.
2
into the
2
with the lever and turn
1
1
2
1
2
3
1
Switch must always be checked for proper working order
1
after changing the drilling unit or after the machine has been
out of service for a prolonged period.
Fig. 44: Guide pin
Fig. 45: Fitting drilling unit
Fig. 46: Star shaped grips
Fig. 47: Switch
