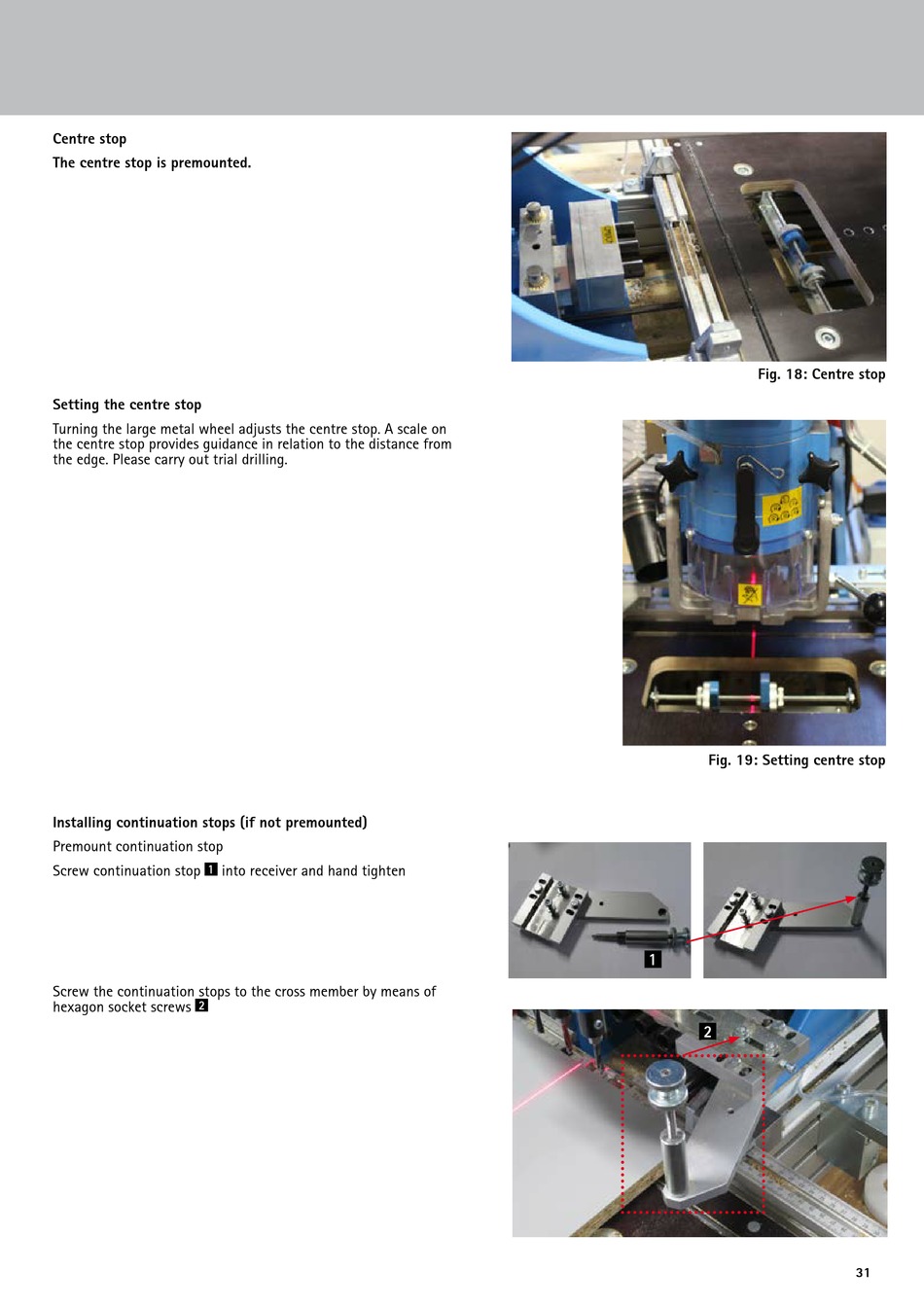

Centre stop

The centre stop is premounted.
Fig. 18: Centre stop
Setting the centre stop
Turning the large metal wheel adjusts the centre stop. A scale on
the centre stop provides guidance in relation to the distance from
the edge. Please carry out trial drilling.
Fig. 19: Setting centre stop
Installing continuation stops (if not premounted)
Premount continuation stop
Screw continuation stop into receiver and hand tighten
1
1
Screw the continuation stops to the cross member by means of
hexagon socket screws
2
2
