Connecting Foot Switch For A Machine Without Horizontal Drilling Unit - Hettich BlueMax Mini Modular Plus Operating Manual

Connecting foot switch for a machine without horizontal
drilling unit

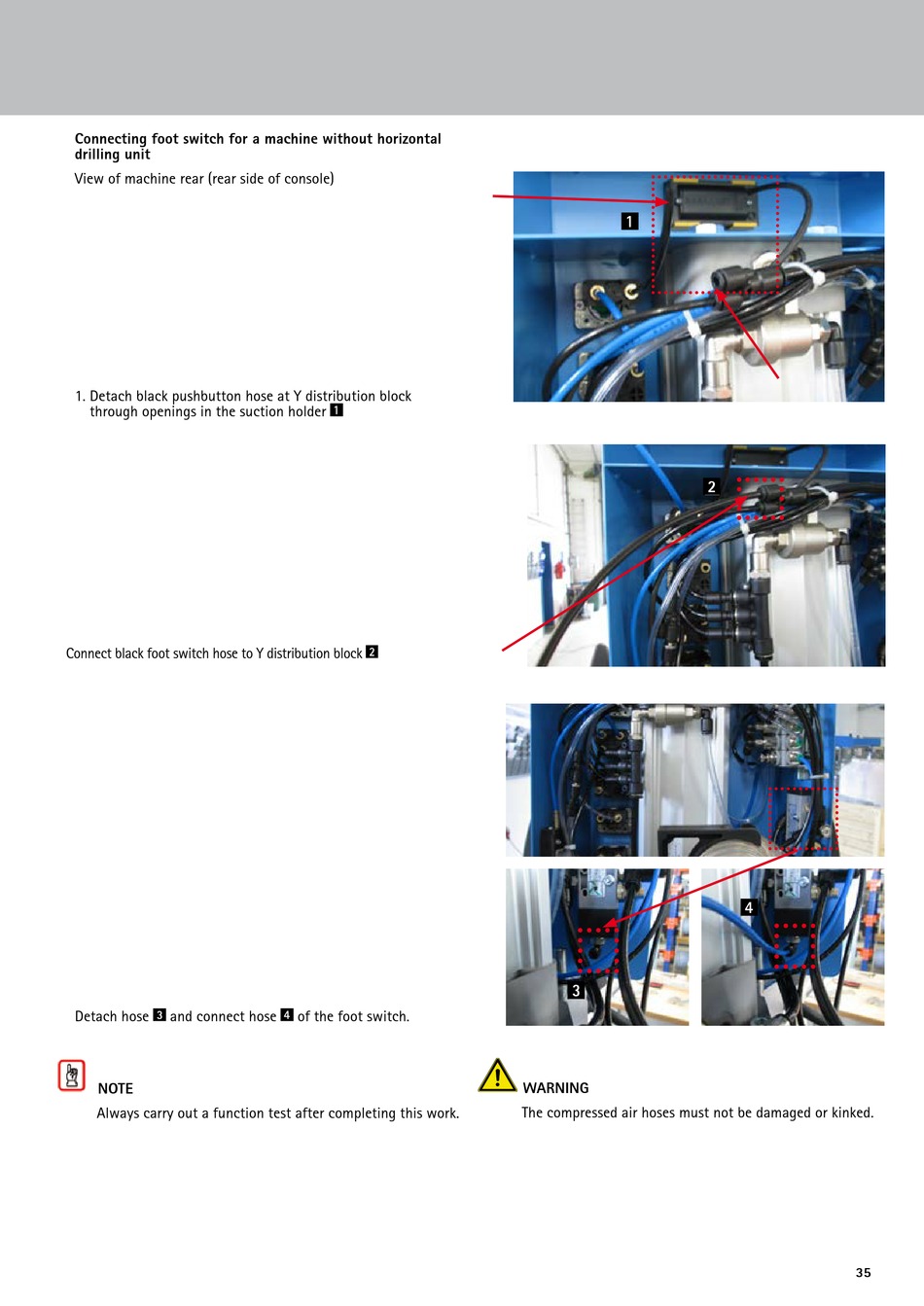

View of machine rear (rear side of console)
1. Detach black pushbutton hose at Y distribution block
through openings in the suction holder
Connect black foot switch hose to Y distribution block
Detach hose and connect hose
3
NOTE
Always carry out a function test after completing this work.
1
2
of the foot switch.
4
1
3
WARNING
The compressed air hoses must not be damaged or kinked.
2
4
