Introduction To Fc; Product Overview - Danfoss VLT AutomationDrive FC 300 Design Manual

FC 300 Design Guide

3. Introduction to FC 300

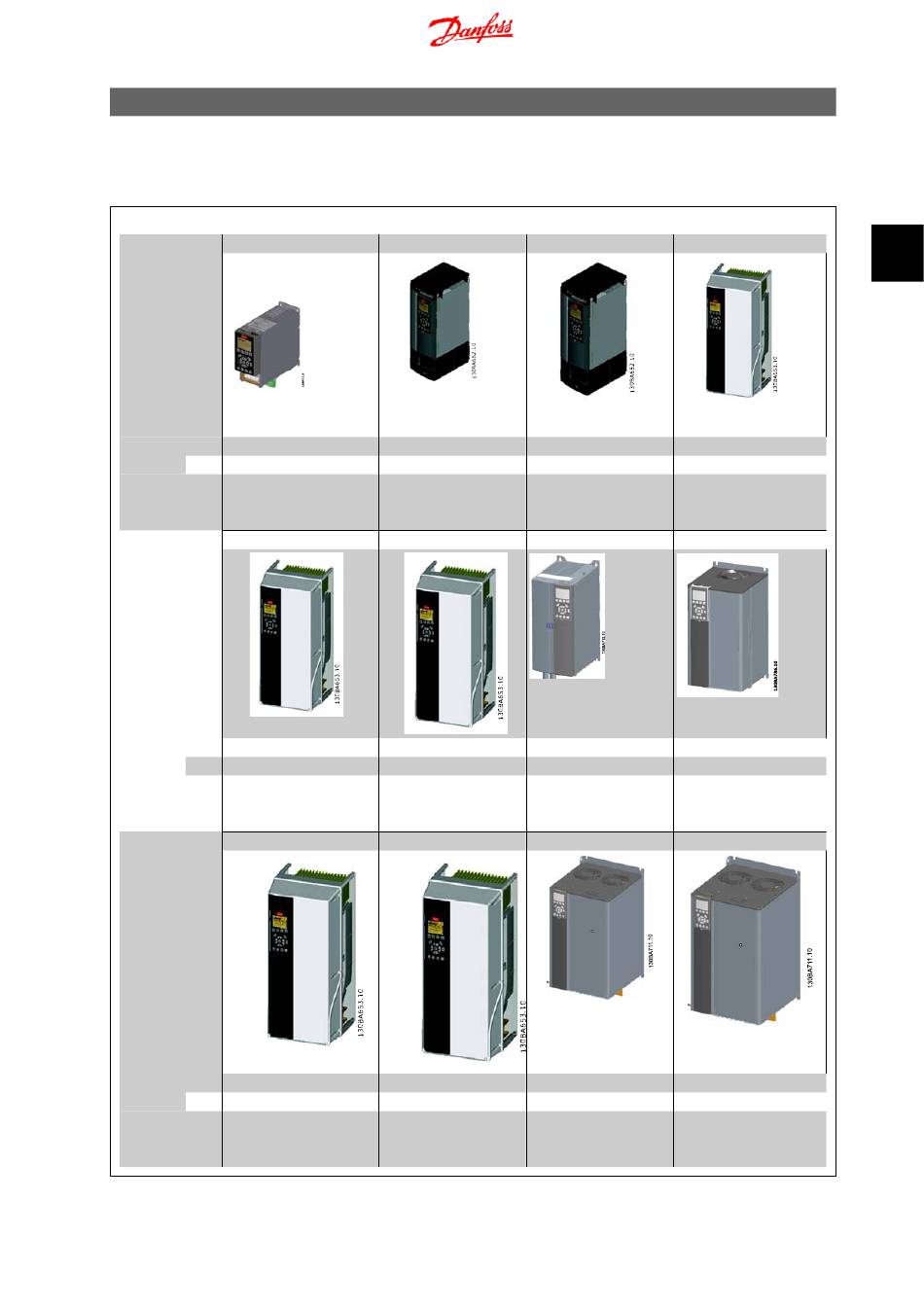

3.1. Product Overview

Frame size depends on enclosure type, power range and mains voltage
Enclosure type A1
Enclosure IP
protection NEMA
Rated 0.25 – 1.5 kW (200-240 V)
power 0.37 – 1.5 kW (380-480 V)
Enclosure type B1
Enclosure IP
protection NEMA
Rated 5.5-7.5 kW (200-240 V)
power 11-15 kW (380-480/ 500V)
11-15 kW (525-600 V)
Enclosure type
C1
Enclosure IP
protection NEMA
Rated 15-22 kW (200-240 V)
power 30-45kW (380-480/ 500V)
30-45 kW (525-600 V)
A2
20/21
Chassis/Type 1 Chassis/ Type 1
0.25-3 kW (200–240 V)
0.37-4.0 kW (380-480/ 500V)
0.75-4 kW (525-600 V)
B2
21/55/66 21/55/66
Type 1/Type 12 Type 1/Type 12
11 kW (200-250 V)
18.5-22 kW (380-480/ 500V)
18.5-22 kW (525-600 V)
C2
21/55/66 21/55/66
Type 1/Type 12 Type 1/Type 12
30-37 kW (200-240 V)
55-75 kW (380-480/ 500V)
55-90 kW (525-600 V)
MG.33.BA.02 - VLT ® is a registered Danfoss trademark
A3
20/21 20/21
Chassis/ Type 1
3.7 kW (200-240 V)
5.5-7.5 kW (380-480/ 500 V)
5.5-7.5 kW (525-600 V )
B3
20
Chassis
5.5-7.5 kW (200-240 V)
11-15 kW (380-480/500 V)
11-15 kW (525-600 V)
C3
20
Chassis
18.5-22 kW (200-240 V)
37-45 kW (380-480/500 V)
37-45 kW (525-600 V)
3. Introduction to FC 300
A5
55/66
Type 12/Type 4X
0.25-3.7 kW (200-240 V)
0.37-7.5 kW (380-480/500 V)
0.75 -7.5 kW (525-600 V)
B4
20
Chassis
11-15 kW (200-240 V)
18.5-30 kW (380-480/ 500 V)
18.5-30 kW (525-600 V)
C4
20
Chassis
30-37 kW (200-240 V)
55-75 kW (380-480/ 500 V)
55-90 kW (525-600 V)
