FC 300 Design Guide

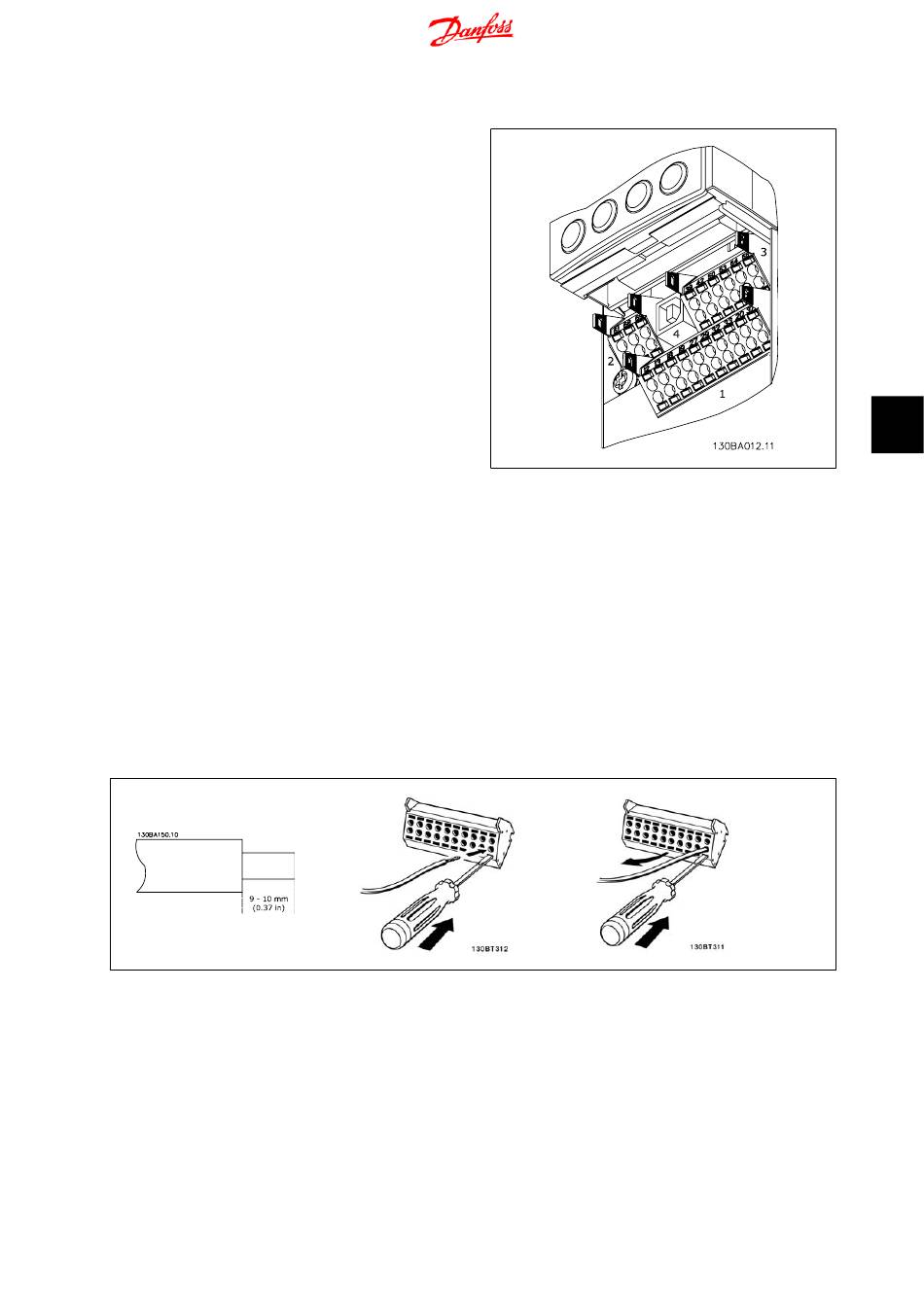

6.6.3. Control Terminals

Control Terminals, FC 301
Drawing reference numbers:
1. 8 pole plug digital I/O.
2. 3 pole plug RS485 Bus.
3. 6 pole analog I/O.
4. USB Connection.
Control Terminals, FC 302
Drawing reference numbers:
1. 10 pole plug digital I/O.
2. 3 pole plug RS485 Bus.
3. 6 pole analog I/O.
4. USB Connection.

6.6.4. Electrical Installation, Control Terminals

To mount the cable to the terminal:
1. Strip insulation of 9-10 mm
2. 1)
Insert a screwdriver
3. Insert the cable in the adjacent circular hole.
4. Remove the screw driver. The cable is now mounted to the terminal.
To remove the cable from the terminal:
1. 1)
Insert a screwdriver
2. Pull out the cable.
1)
Max. 0.4 x 2.5 mm
in the square hole.
in the square hole.
1.
MG.33.BA.02 - VLT ® is a registered Danfoss trademark
Illustration 6.51: Control terminals (all enclosures)
2.
6. How to Install
6
3.
127
