6. How to Install
No.
Function
35 (-), 36 (+)
24 V external DC supply
24 V external DC supply can be used as low-voltage supply to the control card and any option cards installed. This enables full operation of the LCP (incl.
parameter setting) without connection to mains. Please note that a warning of low voltage will be given when 24 V DC has been connected; however,
there will be no tripping.
Use 24 V DC supply of type PELV to ensure correct galvanic isolation (type PELV) on the control terminals of the frequency converter.

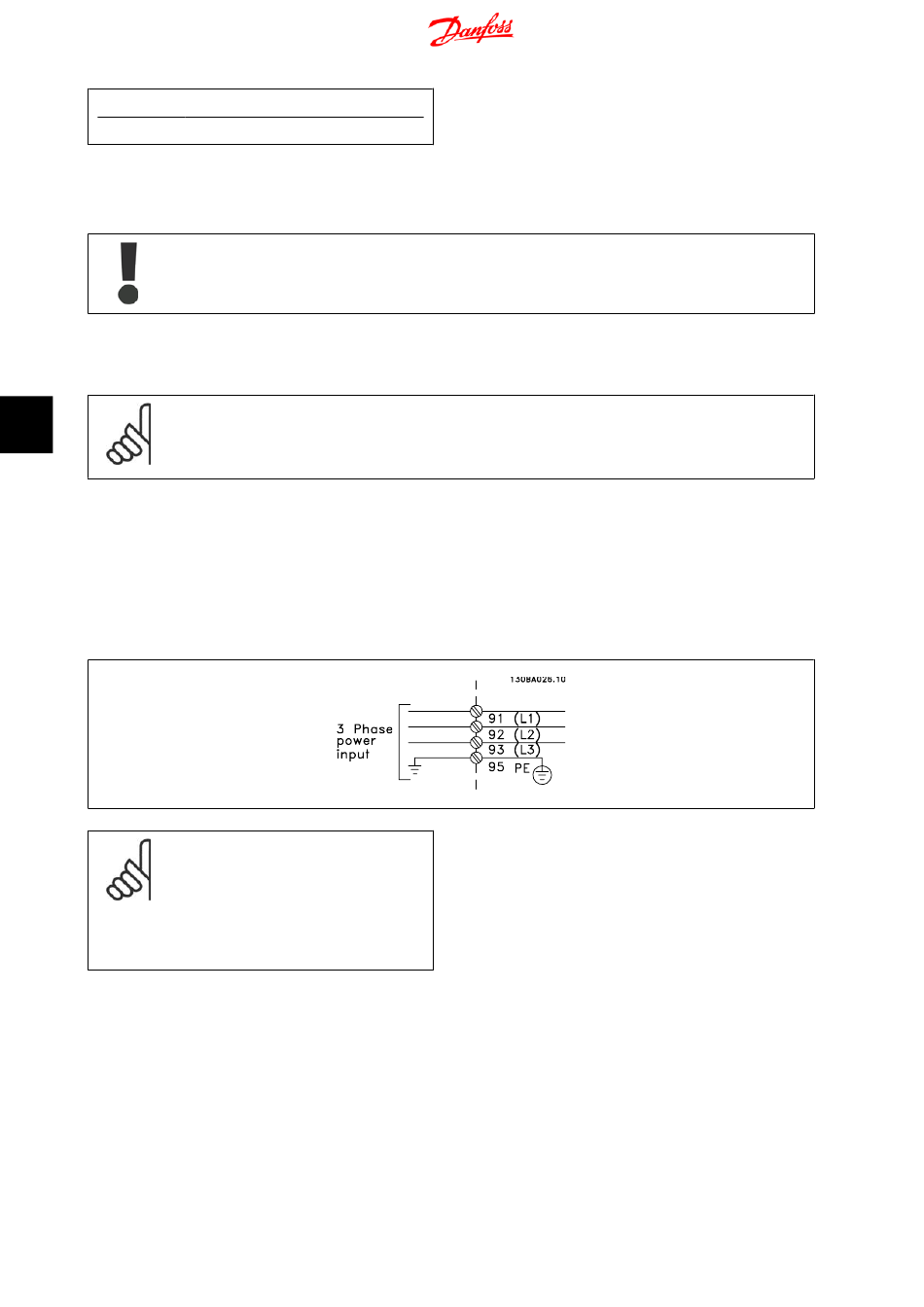

6.5.2. Power Connections
Cabling and Fusing
NB!
6
Cables General
All cabling must comply with national and local regulations on cable cross-sections and ambient temperature. Copper (75°C) conductors
are recommended.
The power cable connections are situated as shown below. Dimensioning of cable cross section must be done in accordance with the current ratings and
local legislation. See the
For protection of the frequency converter the recommended fuses must be used or the unit must be with built-in fuses. Recommended fuses can be seen
in the tables in the fuses section. Always ensure that proper fusing is made according to local regulation.
The mains connection is fitted to the mains switch if this is included.
NB!
Motor cable must be screened/armoured. If an
unscreened/unarmoured cable is used, some EMC re-
quirements are not complied with. Use a screened/
armoured motor cable to comply with EMC emission
specifications. For more information, see
cations
See section
General Specifications
Screening of cables:
Avoid installation with twisted screen ends (pigtails). They spoil the screening effect at higher frequencies. If it is necessary to break the screen to install
a motor isolator or motor contactor, the screen must be continued at the lowest possible HF impedance.
Connect the motor cable screen to both the de-coupling plate of the frequency converter and to the metal housing of the motor.
Make the screen connections with the largest possible surface area (cable clamp). This is done by using the supplied installation devices in the frequency
converter.
114
Specifications section
for details.
EMC specifi-
Design Guide
in the
.
for correct dimensioning of motor cable cross-section and length.
MG.33.BA.02 - VLT
®
is a registered Danfoss trademark
FC 300 Design Guide
