FC 300 Design Guide

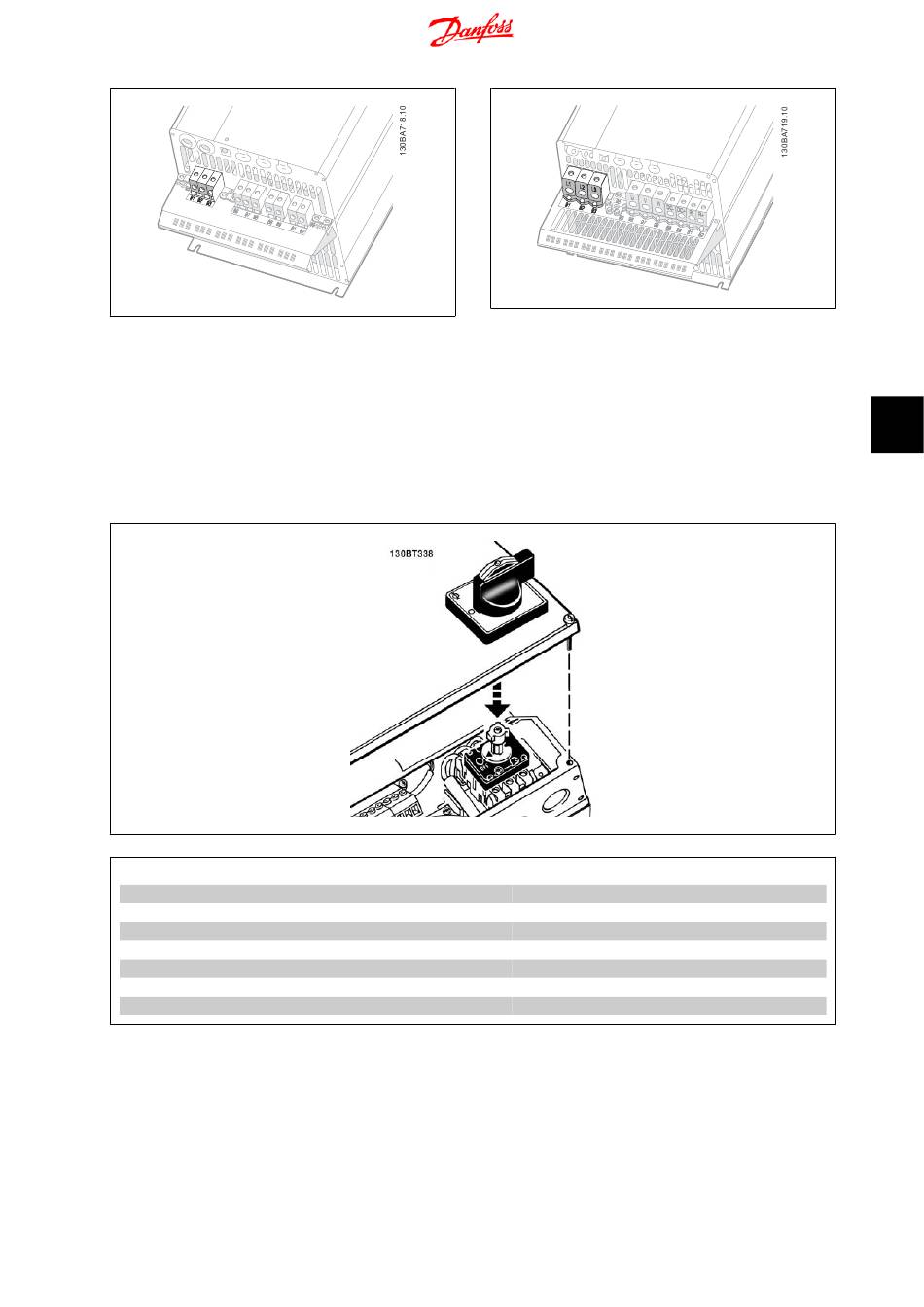

Illustration 6.22: Mains connection C3 (IP20) enclosures.
Usually the power cables for mains are unshielded cables.
6.4.3. Mains Disconnectors
Assembling of IP55 / NEMA Type 12 (A5 housing) with mains disconnector
Mains switch is placed on left side on B1, B2, C1 and C2 enclosures. Mains switch on A5 enclosure is placed on right side
Enclosure:
A5
B1
B2
C1 30 kW High Overload
C1 37-45 kW High Overload
C2 55 kW High Overload
C2 75 kW High Overload
Illustration 6.23: Mains connection C4 (IP20) enclosures.
MG.33.BA.02 - VLT
®
is a registered Danfoss trademark
Type:
Kraus&Naimer KG20A T303
Kraus&Naimer KG64 T303
Kraus&Naimer KG64 T303
Kraus&Naimer KG100 T303
Kraus&Naimer KG105 T303
Kraus&Naimer KG160 T303
Kraus&Naimer KG250 T303
6. How to Install
6
109
