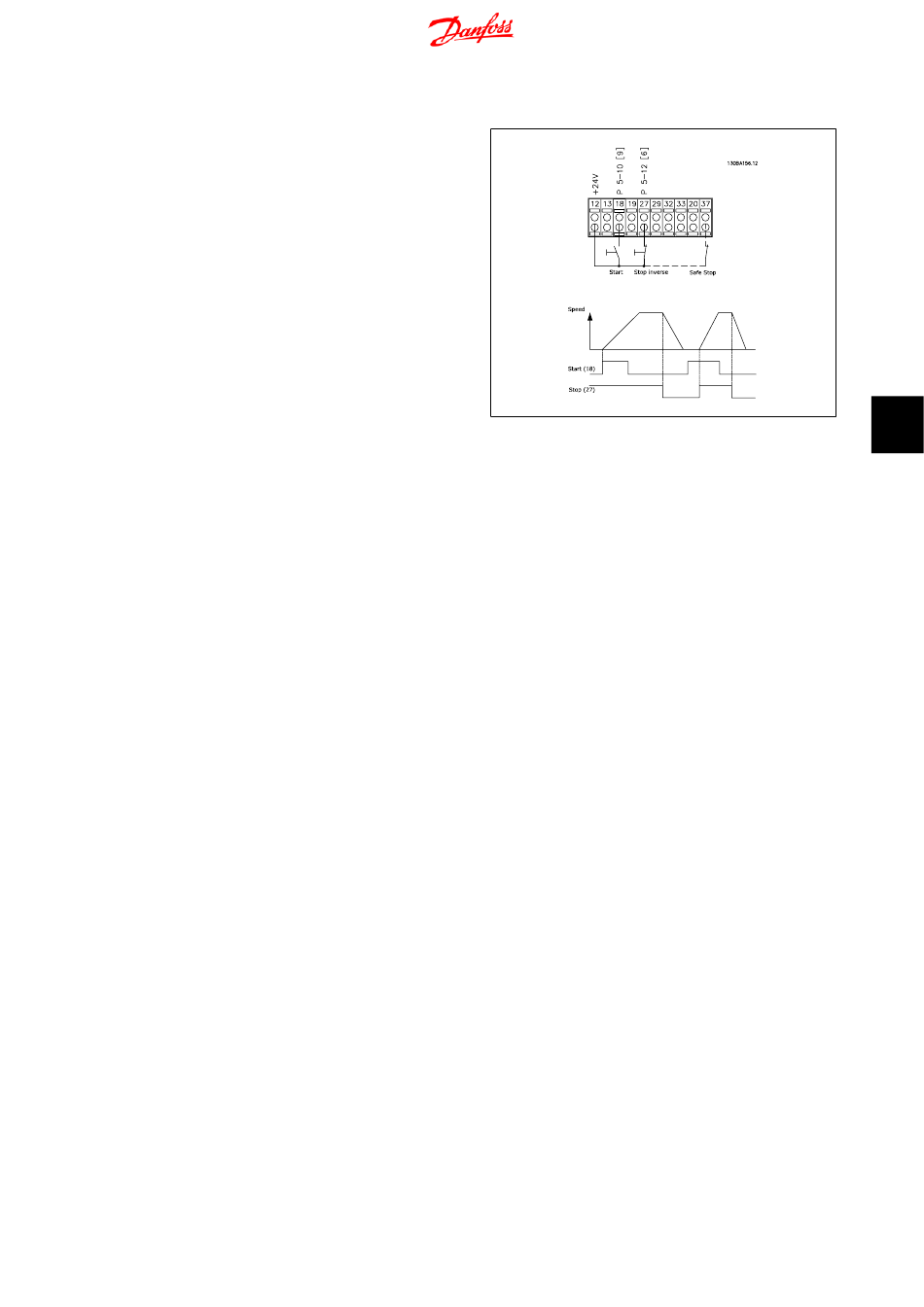

6.6.5. Basic Wiring Example

1. Mount terminals from the accessory bag to the front of the fre-
quency converter.
2. Connect terminals 18, 27 and 37 (FC 302 only) to +24 V (ter-
minal 12/13)
Default settings:
18 = Start, Par 5-10 [9]
27 = Stop inverse, Par 5-12 [6]
37 = safe stop inverse
