The frequency converter has been tested with a given length of cable and a given cross-section of that cable. If the cross-section is increased, the cable

capacitance - and thus the leakage current - may increase, and the cable length must be reduced correspondingly.

Switching frequency

When frequency converters are used together with Sine-wave filters to reduce the acoustic noise from a motor, the switching frequency must be set

according to the Sine-wave filter instruction in

Aluminium conductors

Aluminium conductors are not recommended. Terminals can accept aluminium conductors but the conductor surface has to be clean and the oxidation

must be removed and sealed by neutral acid free Vaseline grease before the conductor is connected.

Furthermore, the terminal screw must be retightened after two days due to the softness of the aluminium. It is crucial to keep the connection a gas tight

joint, otherwise the aluminium surface will oxidize again.

6.6.9. Switches S201, S202, and S801

Switches S201 (A53) and S202 (A54) are used to select a current (0-20 mA) or a voltage (-10 to 10 V) configuration of the analog input terminals 53 and

54 respectively.

Switch S801 (BUS TER.) can be used to enable termination on the RS-485 port (terminals 68 and 69).

Diagram showing all electrical terminals

See drawing

Default setting:

S201 (A53) = OFF (voltage input)

S202 (A54) = OFF (voltage input)

S801 (Bus termination) = OFF

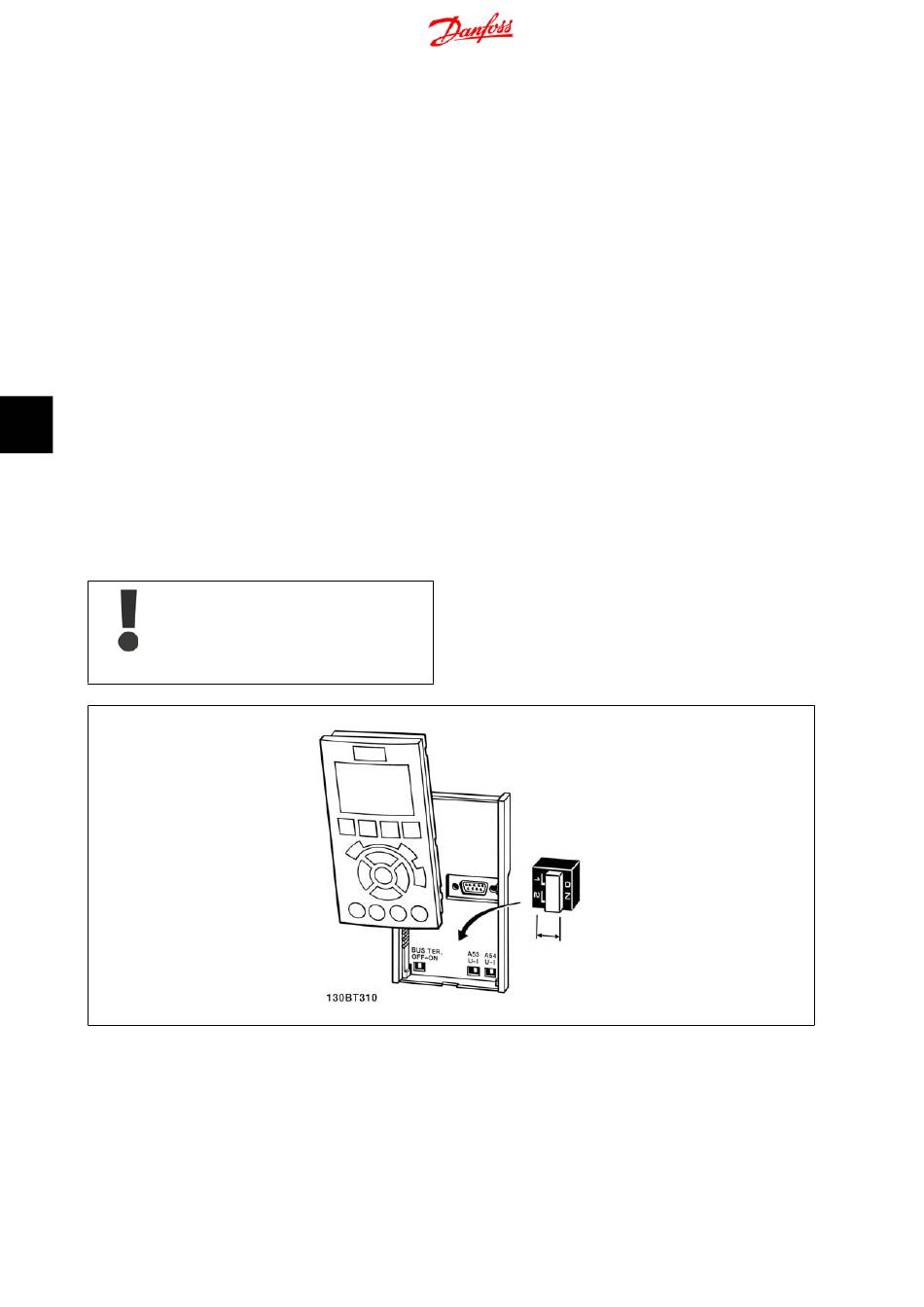

When changing the function of S201, S202 or S801 be

careful not to use force for the switch over. It is rec-

ommended to remove the LCP fixture (cradle) when

operating the switches. The switches must not be op-
