3.2.2 Constant Voltage Mode (CV)

In constant voltage mode, the DC load will cause a constant voltage to appear
at its terminals.
Input voltage

3.2.3 Constant Resistance Mode (CR)

In constant resistance mode, the DC load will behave as a fixed resistance
value.As shown below,the load linearly changes the current value with the
rising of input voltage.

3.2.4 Constant Power Mode (CW)

In constant power mode,the DC load will cause a constant power to be
dissipated in the load.As shown below,the load current is decreasing with the
rising of input voltage,while power always maintain the setting value.
I
Input voltage
CC mode

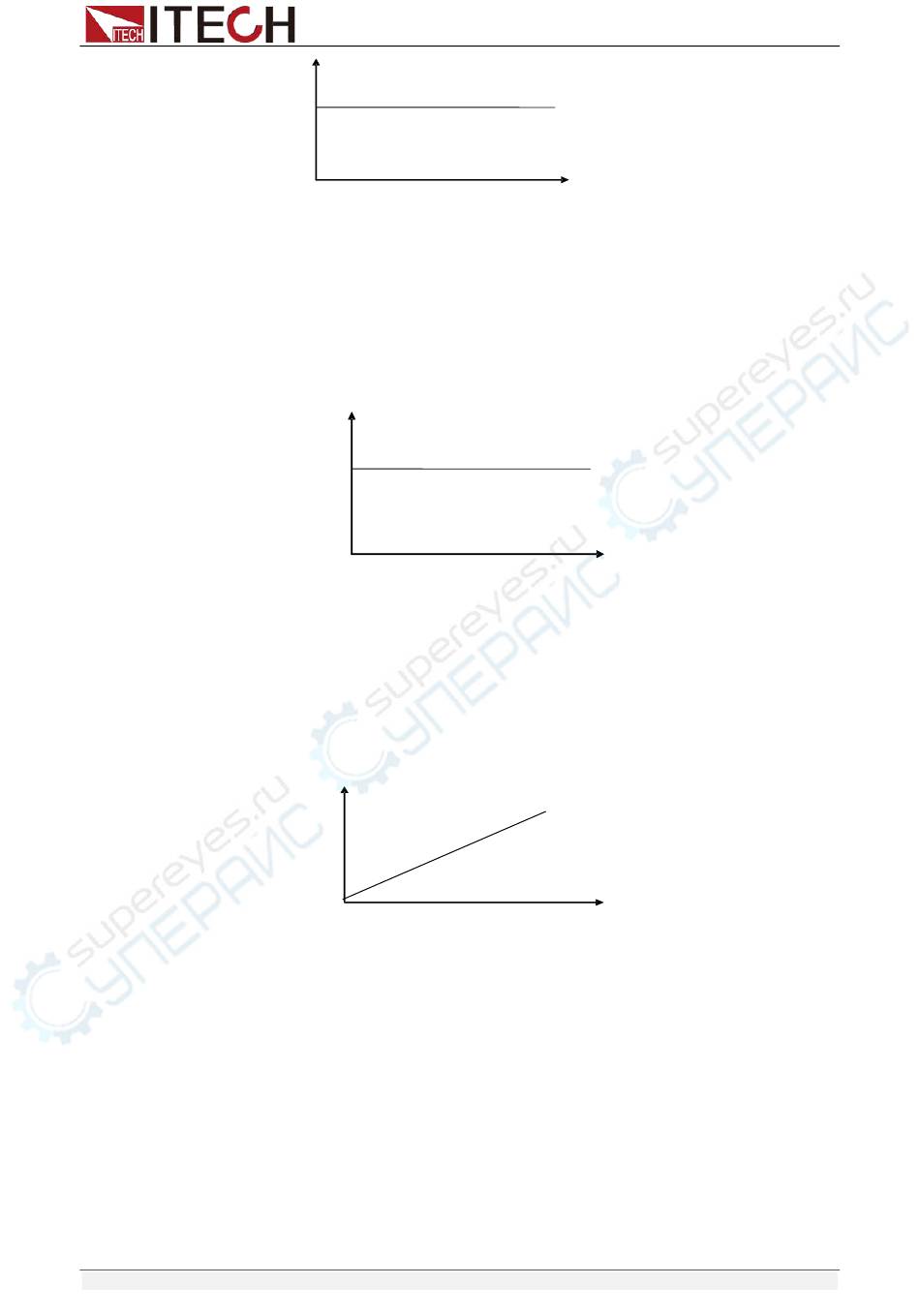

Diagram 3-1 I-V curve in CC mode
V
Input current
CV mode
Diagram 3-2 I-V curve in CV mode
I
Load
current
Input voltage
CR mode
Diagram 3-3 I-V curve in CR mode
