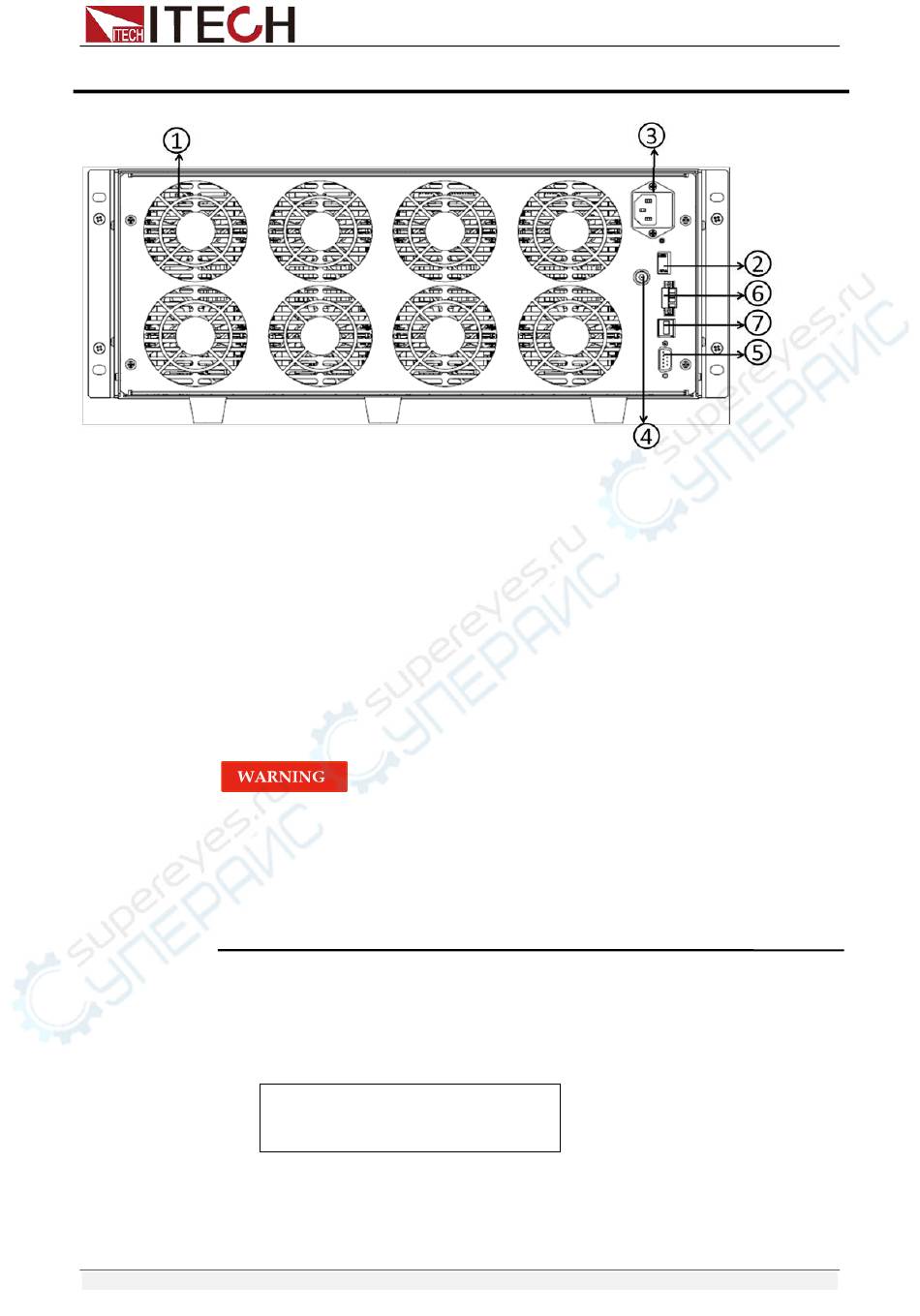

IT8516C+Model
①Thermal window
②Line
voltage
switch( 110V/220V )
③3 pin IEC320 AC input connector
④Current monitoring Terminal

2.7 Power-on Selftest

A successful test process indicates that the instrucment meets the factory
specifications and can be operated well.
Before operation, please confirm that you have fully understood the safety
instructions.

To avoid burning out, be sure to confirm that power voltage matches with
supply voltage.

Be sure to connect the main power socket to the power outlet of protective
grounding. Do not use terminal board without protective grounding. Before
operation, be sure that the power supply is well grounded.

To avoid burning out, pay attention to marks of positive and negative
polarities before wiring.
Selftest steps
Normal selftest procedures:
1. Correctly connect the power cord. Press [ Power ] key to start up.
After selftest, VFD display information below.
2.
Information description:


⑤RS232 communication cable interface
⑥4 pin trigger and remote sensing connector
selection
⑦USB communication cable interface
0.0000V 0.0000A
0.00W CC=0.000A
OFF CC Auto
The first line display actual voltage and current value.
The second line display the actual power value and the setting
current/voltage/power/resistance value
