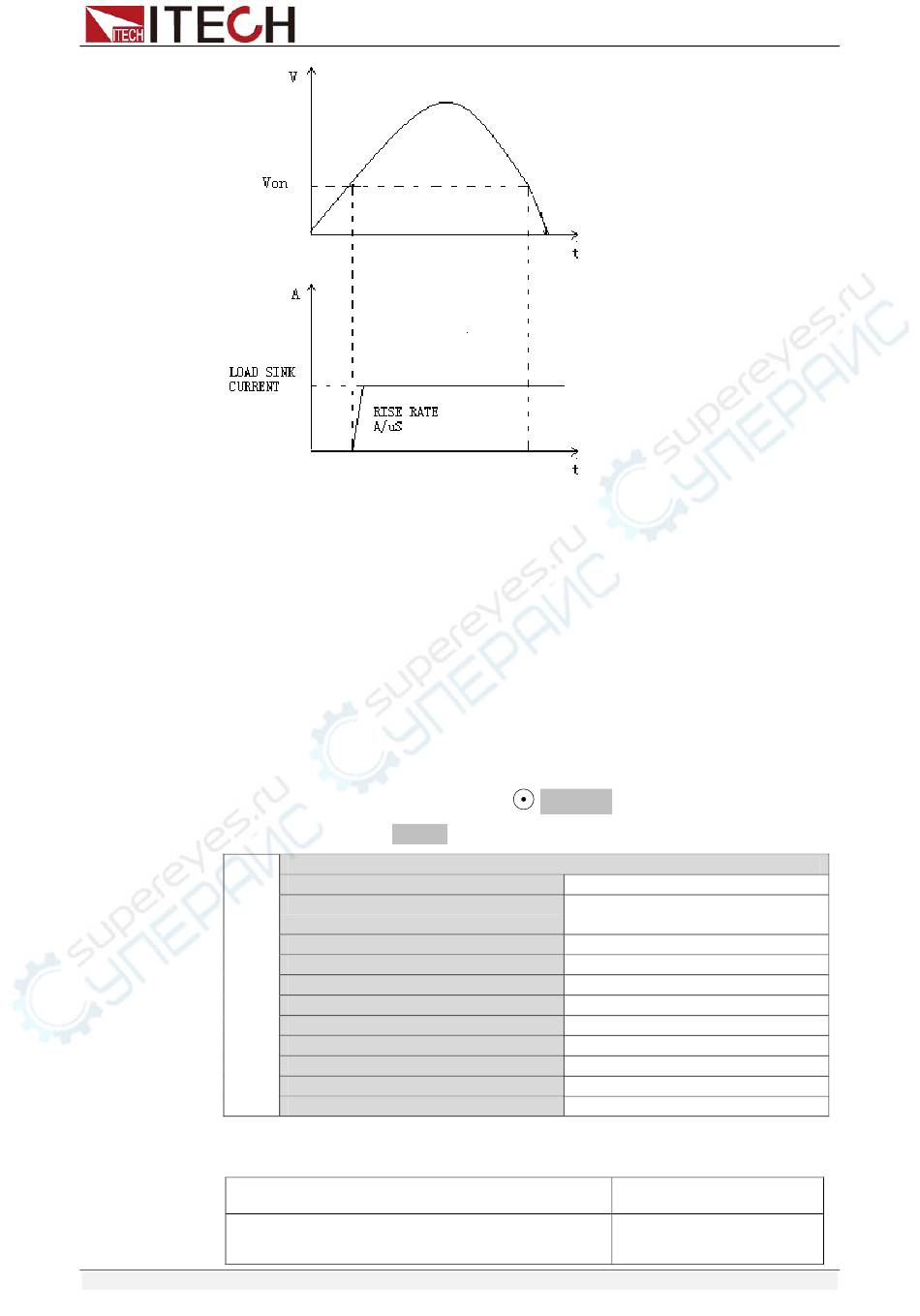

VON LATCH MODE
In Latch mode,as before,the load will turn on only when the voltage exceed
VON setting,but once on,it will now stay on,even if the voltage drops to zero.

3.12 OCP Operation

OCP test process: After input voltage reaches VON point,the DC load start to
draw a current from the source after a delay time.The current value will
increase by a certain step size at regular intervals.Simultaneously,the DC load
will judge whether the input voltage is lower than OCP voltage you've set.If it
is,then the present current value will be compared to see if it is in the current
range you've set,in this range,the OCP test will Pass or fail.On the contrary,the
DC load will continue to increase drawing current and compare the voltage.
To start an OCP test,press [ Shift ]+ [
Press [ Shift ]+ [ CC ] (OCP) to enter OCP operation.
EDIT
Set the power on mode to be OCP test mode:
Operation
1.Press [ Shift ]+ [ 8 ] (system) enter into sysmtem
menu
OCP TEST
1.VON LEVEL=0.000V
2.VON DELAY=0.00S
3.RANGE=3.000A
4.START=0.1000A
5.STEP=0.1000A
6.STEP DEL=0.20S
7.END=2.0000A
8.OCP VOLT=2.000V
9.MAX TRIP =1.5000A
10.MIN TRIP=0.9000A
SAVE OCP FILE=1
Copyright © Itech Electronics Co., Ltd.
Functions and Characteristics
] (Trigger .
)
Set Voltage threshold
After delay certain time,the DC
load starts to draw current.
Set current range
Set start current
Set step current
Set delay time of each step
Set end current
Set OVP value
Upper limit of OCP value
Lower limit of OCP value
Save OCP test file (1-10)
Display on front pannel
0.0000V
POWER-ON
0.000A
BUZZER
