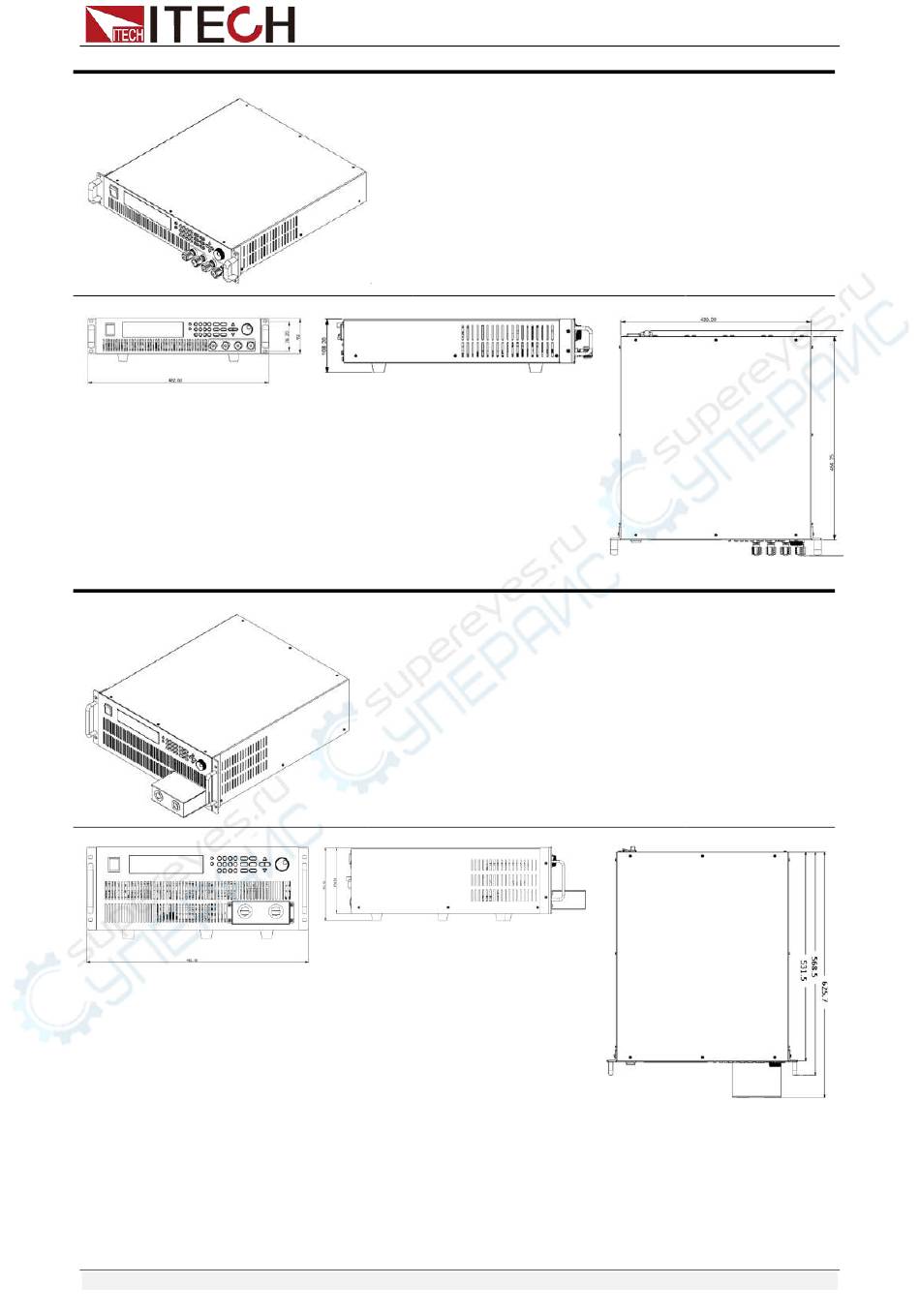

IT8514B+/ IT8514C+ Model
Detialed Dimension Drawing
IT8516C+ Model
Detailed Dimension Drawing
1.3 Adjustment of Load Handle
IT8511+/IT8511A+/IT8511B+/IT8512+/IT8512A+/IT8512B+/IT8512C+/IT8512H
/IT8513A+/IT8513C+ series loads are equipped with a handle for user to easily
carry and place it.
Dimension:
Width: 436.5.5mm
Height: 88.2mm
Depth: 463.5mm
Dimension:
Width: 482.5mm
Height: 174.5mm
Depth: 531.5mm
Copyright © Itech Electronics Co., Ltd.
Inspection and Installation
3
