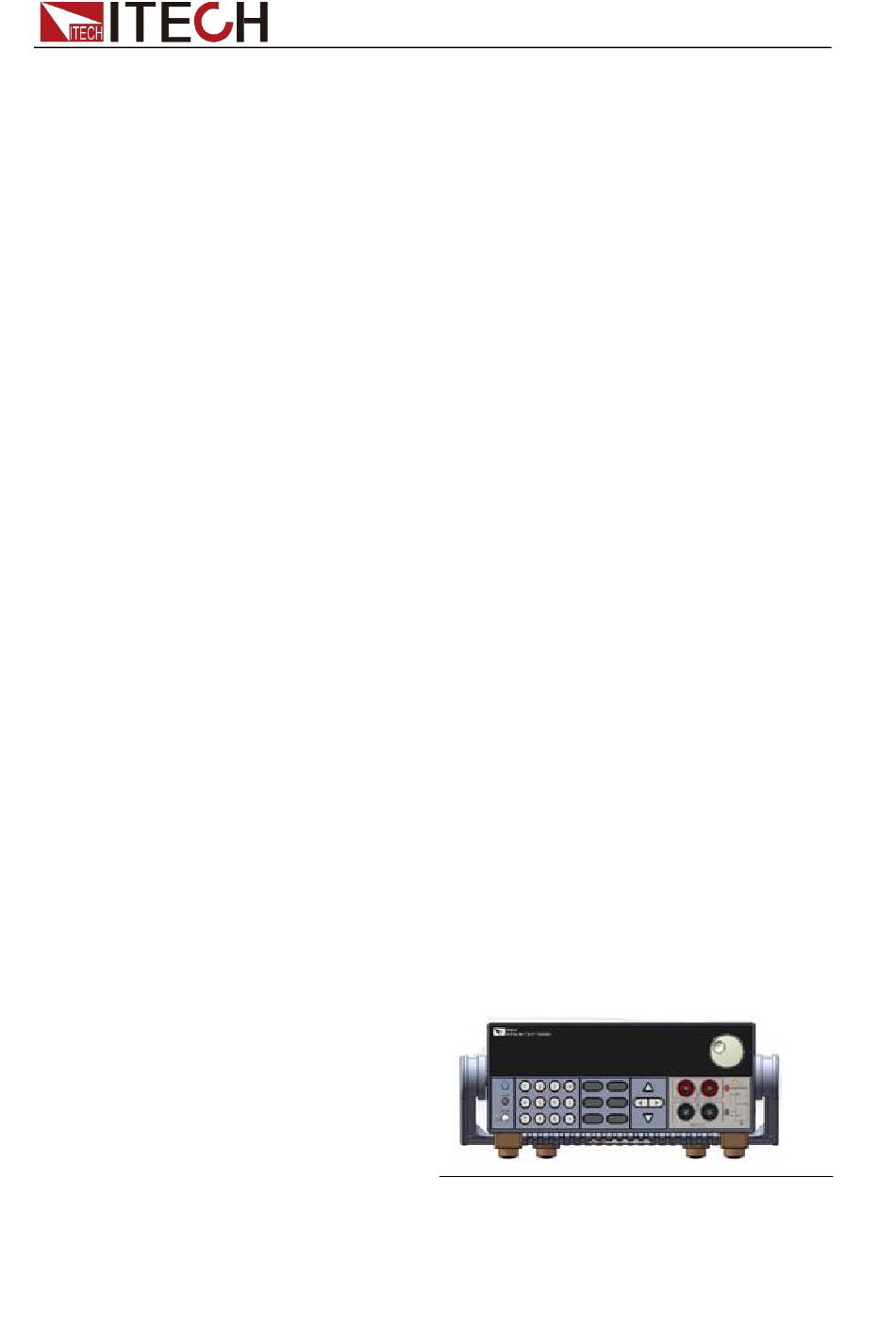

- Page 1 Internal Resistance Tester IT5102 Series User Manual Model: IT5102/IT5102E Version: V2.0...
- Page 2 Notices Warranty Safety Notices © Itech Electronic, Co., Ltd. 2020 The materials contained in this No part of this manual may be document are provided “as is”, and reproduced in any form or by any means is subject to change, without prior...
-
Page 3: Warranty
Warranty ITECH warrants that the product will be free from defects in material and workmanship under normal use for a period of one (1) year from the date of delivery (except those described in the Limitation of Warranty below). -
Page 4: Environmental Conditions
Failure to comply with these precautions or specific warnings elsewhere in this manual will constitute a default under safety standards of design, manufacture and intended use of the instrument. ITECH assumes no liability for the customer’s failure to comply with these precautions. -
Page 5: Regulatory Markings
With reference to the equipment classifications described in the Annex 1 of the WEEE Directive, this instrument is classified as a “Monitoring and Control Instrument”. To return this unwanted instrument, contact your nearest ITECH office. Copyright© Itech Electronic Co., Ltd. -
Page 6: Compliance Information
Connection of the instrument to a test object may produce radiations beyond the specified limit. Use high-performance shielded interface cable to ensure conformity with the EMC standards listed above. Safety Standard IEC 61010-1:2010/ EN 61010-1:2010 Copyright© Itech Electronic Co., Ltd. -
Page 7: Table Of Contents
3.5.3 Data comparison operation ......................23 3.5.4 Data calculation operation ......................25 Chapter4 Remote Control ........................26 4.1 RS232 Interface ..........................26 4.2 LAN Interface ............................. 27 Chapter5 Specification........................28 5.1 Main technical parameters......................... 28 5.2 Supplemental characteristics ......................28 Copyright© Itech Electronic Co., Ltd. -
Page 8: Chapter1 Inspection And Installation
Upon verification of the shipment, keep the package and relevant contents thereof in a safe place. When returning the instrument for warranty service or repair, the specified packing requirements shall be met. IT5102 series internal resistance tester is supplied with the following optional accessories (sold separately): Item... - Page 9 Inspection and Installation Dimension Copyright© Itech Electronic Co., Ltd.
-
Page 10: Quality Certification And Assurance
The handle can be easily removed from the alignment hole and key between the handle and the instrument. Pull out the handle toward the left and rights sides of the instrument from the alignment hole. NOTE Copyright© Itech Electronic Co., Ltd. -
Page 11: Safety Precautions
When mounting or removing the handle, do not squeeze it too hard and mind your hand. 1.6 Rack Mounting IT5102 can be mounted on a standard 19” rack. ITECH provides user with IT-E151/IT-E151A rack, as an optional mount kit. The detailed operation please refer to the User Manual of your mount kit. -
Page 12: Chapter2 Quick Start
The front panel supports single channel measurement and the back panel supports multiple channels ⚫ Built-in filter function, improve the measurement accuracy ⚫ Supports MX+B function 2.3 Front Panel Introduction Schematic Diagram of Front Panel of IT5102 series internal resistance tester is as follow. Copyright© Itech Electronic Co., Ltd. - Page 13 ⑨ Digital keys /Esc key ④ foot ⑩ Handle ⑤ Sense terminals IT5102 series internal resistance different models are same the key function in front board, schematic graph as follow. Key tag Description Key lock function button, used to lock the front panel buttons (Lock) switch to the local mode.
-
Page 14: Screen Indicator Lamps Description
Analog function begin to work Auto Auto range of voltage and resistance. Open the keylock function 2.5 Rear Panel Introduction Schematic diagram of rear panel of IT5102 series internal resistance tester is as follow. IT5102 model ① ⑤ excitation source (-、M、+）... -
Page 15: Power-On Selftest
Do not use terminal board without protective grounding. Before operation, be sure that the internal resistance tester is well grounded. Selftest steps The normal power-on process of the IT5102 series internal resistance tester are as follows: Copyright© Itech Electronic Co., Ltd. - Page 16 Check whether the fuse of internal resistance tester is burned out. If yes, change fuse. Detailed steps: First pull out the power cord, and then take out the fuse block from the power cord jack with a small screwdriver, as shown below: Copyright© Itech Electronic Co., Ltd.
- Page 17 Have a visual inspection of the fuse to see whether it is burnt out; if yes, replace it with another fuse of the same specification. iii. After replacement, mount the fuse block to the original position, as illustrated below: Copyright© Itech Electronic Co., Ltd.
-
Page 18: Chapter3 Function And Features
Auto range Manual Setting the range manually. VolRange: Voltage range ResRange: Resistance range Freq FREQUENCY STATE Frequency selector 500Hz 1000Hz(default) Filter FILTER STATE Filter function setting Disable(default) Disable the filter function Enable Enable the filter function Copyright© Itech Electronic Co., Ltd. -
Page 19: Switch Measurement Between The Front And Rear Panels
XXXXXX 3.1.1 Switch measurement between the front and rear panels For IT5102 Series internal resistance tester, you can switch measurement between the front and rear panels. The rear panel of IT5102E model supports the measurement of 8 channels while the rear panel of the IT5102 model supports the measurement of 16 channels. -
Page 20: Extension Channels For Master And Slave Connection
3.1.2 Extension channels for Master and Slave connection For IT5102 Series internal resistance tester, you can connect several internal resistance testers in cascade through the system bus interface to extend the number of channels and achieve integrated data test. - Page 21 Press the Up/Down key to set the number of Slaves, and press CONFIG MENU Panel Mas/Slav Measure Freq Press to exit menu settings. Operation steps for setting Slave Press MENU SELECT Config System Press CONFIG MENU Copyright© Itech Electronic Co., Ltd.
-
Page 22: Range Setting
Press to exit menu settings. 3.1.3 Range setting In IT5102 Series internal resistance tester, you can select different ranges for measuring voltage and internal resistance. When the DUT voltage/internal resistance range is known, select an appropriate range and the measurement will be more accurate. -
Page 23: Measurement Frequency Setting
Function and Features 3.1.4 Measurement frequency setting IT5102 Series internal resistance tester allows the user to select the measurement frequency to keep the frequency different from the DUT clock frequency, so that the test data is more accurate. In general, the frequency is set to 1000HZ for test. -
Page 24: Initializing Menu Items
You can turn on or turn off the buzzer through this menu. Operation steps Press MENU SELECT Config System Press to select System, and press SYSTEM MENU Initialize Buzzer AlarmSet Press to select Buzzer, and press BUZZER STATE On(default) Off Copyright© Itech Electronic Co., Ltd. -
Page 25: Alarm Setting
SYSTEM MENU Initialize Buzzer AlarmSet Press to exit menu settings. 3.1.9 Communication setting IT5102 Series internal resistance tester supports serial port (RS232) and network (ETHERNET) communication. The user can select one to communicate with PC. Setting steps for RS232 communication Press... - Page 26 SYSTEM MENU Communication Info Press to exit menu settings. RS232 data format RS-232 data is 10-bit byte with a start bit and a stop bit. The number of start bit and stop bit cannot be edited. Copyright© Itech Electronic Co., Ltd.
-
Page 27: Instrument Information Checking
Operation steps Press MENU SELECT Config System Press to select System, and press SYSTEM MENU Initialize Buzzer AlarmSet Press to select Info, and press SYSTEM MENU IT5102 Ver:1.00-1.00 Press SYSTEM MENU SN:602080010696720003 Copyright© Itech Electronic Co., Ltd. -
Page 28: Comparison Function
3.2 Comparison function The comparison function of IT5102 Series internal resistance tester is divided into absolute comparison and relative comparison. Absolute comparison allows the user to set the upper and lower limits of voltage and resistance. The instrument can judge whether the voltage or resistance is within the preset range based on measured value. -
Page 29: Offline Measurement And Online Measurement
10. Press to exit. 3.4 Offline measurement and online measurement In addition to offline measurement of internal resistance, IT5102 Series internal resistance tester also supports online measurement. Online measurement allows the user to measure battery internal resistance when the battery is loaded. -
Page 30: Wire Operation
For CH1, CH2 and CH10, you can press rotate the knob to switch the channel and check the measurement data. 3.5.3 Data comparison operation Set data comparison range: Operation steps Press Copyright© Itech Electronic Co., Ltd. - Page 31 After the test is completed, turn off the comparison function. The operation is as follows: Press COMPARE STATE Absolute Relative(Loop) Press ABSOLUTE SETUP State:On Press to select Off, and press COMPARE STATE Absolute Relative(Loop) Press to exit. Copyright© Itech Electronic Co., Ltd.
-
Page 32: Data Calculation Operation
Press the Numeric key to set offset B(v) to 0.03V, and press MXB SETUP Mxb(r) Mxb(v) 10. Press to exit. If the existing voltage and internal resistance are 0.035mΩ and 12.7V, the test values after linear amplification are 0.035mΩ and 12.603V. Copyright© Itech Electronic Co., Ltd. -
Page 33: Chapter4 Remote Control
Remote Control Chapter4 Remote Control IT5102 series instrument is equipped LAN and RS232 interface. Users can choose the RS232 and LAN to achieve the communication with PC. 4.1 RS232 Interface There is a COM port (DB9) connector at the rear panel, when connect to computer, you need to connect a cable with COM port on both side;... -
Page 34: Lan Interface
Connect the LAN interface of instrument to the computer with a reticle (crossed). The gateway address should be consistent with that of the PC, and the IP address should be at the same network segment with the PC’s IP address. Copyright© Itech Electronic Co., Ltd. -
Page 35: Chapter5 Specification
Specification Chapter5 Specification This chapter will introduce the rated voltage, current, power and many other main parameters of IT5102 series. 5.1 Main technical parameters Model IT5102/IT5102E Measurement Range Range 0~6V 0~60V Resolution 0.1 mV Voltage ±0.02%±0.02%FS) Accuracy Temperature (±0.002%±0.002%FS)/℃ Coefficient Ω... - Page 36 Contact Us Thanks for purchasing ITECH products. In case of any doubts, please contact us as follows: 1. Visit ITECH website: www.itechate.com 2. Select the most convenient contact method, for further information.
