Function of Auto Start Voltage:
1. Auto start=0V.
Auto test file start to run when receive a trigger signal by pressing
[shift]+[trigge]r or providing a external trigger signal.
2. Auto start is not equal to 0V(Take 2V as an example)
In this condition,user only need to connect the charger to input termianls of
E-load.The unit can auto start to run test file when detect a rising edge from
0-2V.Auto start voltage is not suggested to be a big value.2V is suitable.

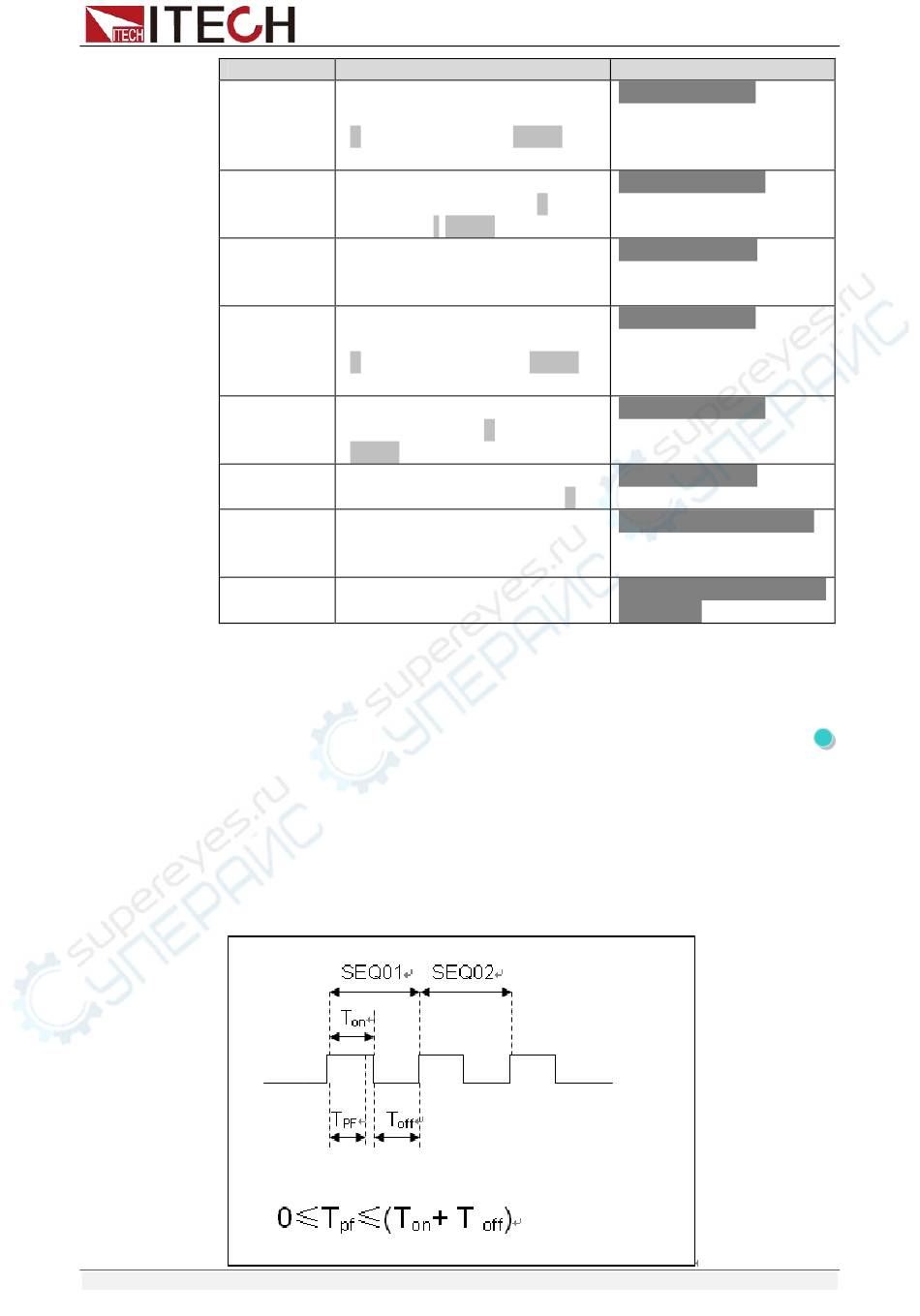

Ton, Toff and Tpf (P/F) Relation:
Operation
8 Set Ton for the second step, if
you want to load 2S, press
[2], then press [Enter] to
confirm
9 Set Toff of the second step, if
you need 2S, press [2], and
then press [Enter] to confirm.
10 Set testing delay time of the
second step, e.g. 1S, press
[1]
11 Set Ton for the third step, if
you want to load on 3S, press
[3], then
confirm
12 Set Toff of the third step, if you
need 2S, press [2], then press
[Enter] to confirm.
13 Set testing delay time of the
third step, e.g. 2S, press [2].
14 set start voltage.Please refer
to "function of auto start
voltage".
15 Set stop condition
Copyright © Itech Electronics Co., Ltd.
VFD Display
SEQ02 ON =2S
SEQ02 OFF =2S
SEQ02 P/F =1S
SEQ03 ON =3S
press [Enter]to
SEQ03 OFF =2S
SEQ03 P/F =2S
AUTO START=0.000V
STOP
FAILURE
