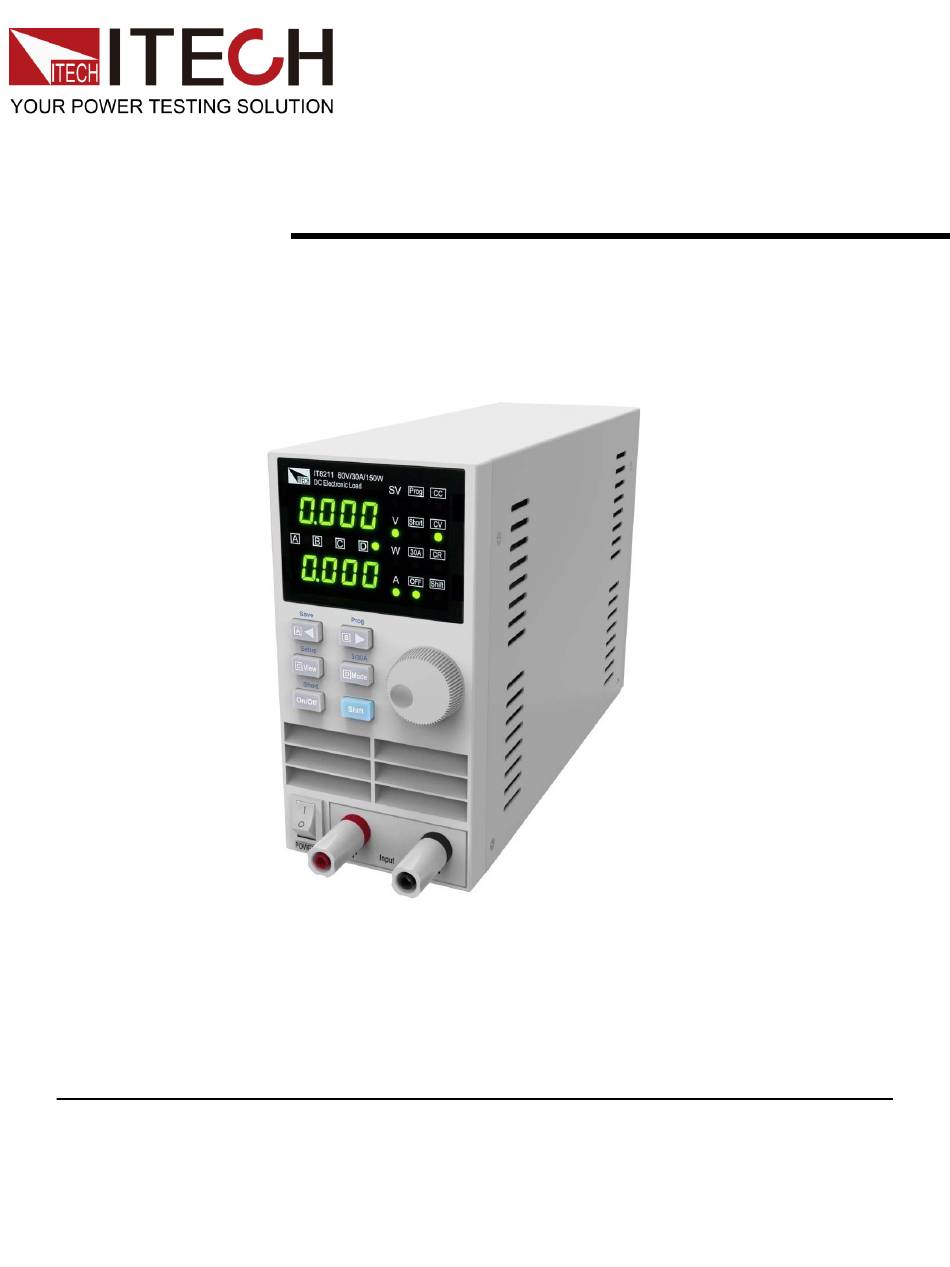

- Page 1 Digital Control Electronic load IT8211 User ’s Manual Copyright ©ITECH Electronics Co., Ltd.
-
Page 2: Safety Regulations
This hardware product is warranted against defects in material and workmanship for a period of ONE year from date of delivery. IT8211 Electronic load for use with a hardware product and when properly installed on that hardware product, are warranted not to... -
Page 3: Limitation Of Warranty

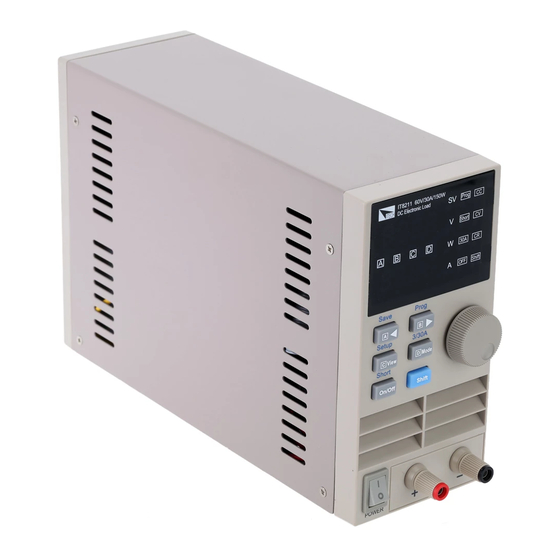

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) The ITECH products you have purchased is subject to Directive 2002/96/EC of the European Parliament and the Council of the European Union on waste electrical and... - Page 4 About IT8211 IT8211 digital control electronic load (60V/30A/ 150W) High resolution and accuracy: 10mV/1mA, CV / CC/ CR work mode, short-test function, friendly interface, storage for 4*100 sets preset value. All these help you to achieve different complex test purpose easily。...
-
Page 5: Panel Layout
Panel layout Setup indicator Voltage setup indicator CC mode indicator Voltage value Recall indicator CV mode indicator Stepping value B + memory B Stepping value A + memory A Short indicator CR mode indicator Stepping value C + memory C Selector indicator Stepping value D + memory D Shift indicator... -
Page 6: Quick Start
If the above 2 points are right, please power on the electronic load. Preset cursor current set IT8211 60V/30A/150W ITECH Press key to turn on the CC... - Page 7 Input on/off Press key at the front panel On/Off IT8211 60V/30A/150W ITECH DC Electronic Load Prog to toggle the input on/off. Disable t the input (zero current) does not Short affect the programmed setting. The input will return to the previously programmed values when the input is enabled again.
- Page 8 Set address (ADD) IT8211 60V/30A/150W ITECH DC Electronic Load Prog After setting BEEP, Press Short enter the ADD setting, use the cursor and the knob enter address to store settings. ADD range: 0~31，press to confirm. Shift Set group (GRP) IT8211 60V/30A/150W...
-
Page 9: Recall Operation
1mA. Short-circuit operation IT8211 loads can simulate a short circuit at its input by turning the load on with, full-scale current. The short circuit can be toggled on/off at the front panel using . Short operation does not infect the operation setting current value,... -
Page 10: List Function
The function helps you test the features of power supply to be measured when with different load easily. Power on IT8211 with pressing the key (Prog) at the same time. The normal function of all keys are forbidden, only list function are permitted. - Page 11 2) Press key to enter TYPE setting. View IT8211 60V/30A/150W ITECH DC Electronic Load Prog Use the knob to switch the working mode, CC mode, CV mode, CR mode. Short Right figure set TYPE as CC mode. Shift 3)Press key to enter DATA setting.
- Page 12 IT8211 60V/30A/150W 6) Press key to enter Low Voltage View ITECH DC Electronic Load Prog setting. use cursor keys and the knob to set the low limit of the input voltage. Short Right figure set the Low Voltage as 0.00V.
- Page 13 11) When past the test successfully, the IT8211 60V/30A/150W ITECH DC Electronic Load Prog instrument display as normal; when fail to pass the test, the instrument will display Short as right figure, display wrong step, alarm 3 second and shut the input. Right figure show the condition the first step not pass.
-
Page 14: Technique Parameter
Technique parameter Parameter IT8211 Voltage 0 ~ 60V Input ratings, ( 0 ~ 40 ℃) Current 1mA ~ 30A Power 150W Range Accuracy Resolution 0~10V ±(0.05%+0.1%FS) Load Regulation 0~60V ±(0.05%+0.1%FS) 10mV 0~3A ±(0.1%+0.1%FS) 0~30A ±(0.1%+0.15%FS) 10mA CV Mode 0.1~60V 10mV ±(0.05%+0.1%FS) - Page 15 Contact US Thank you for purchasing ITECH products.If you have any doubt about this product, please contact us as follow. 1. Please refer to the CD-ROM of related user’s manual in package. 2. Click www.itechate.com or scan the right two-dimension code to visit the ITECH website.
