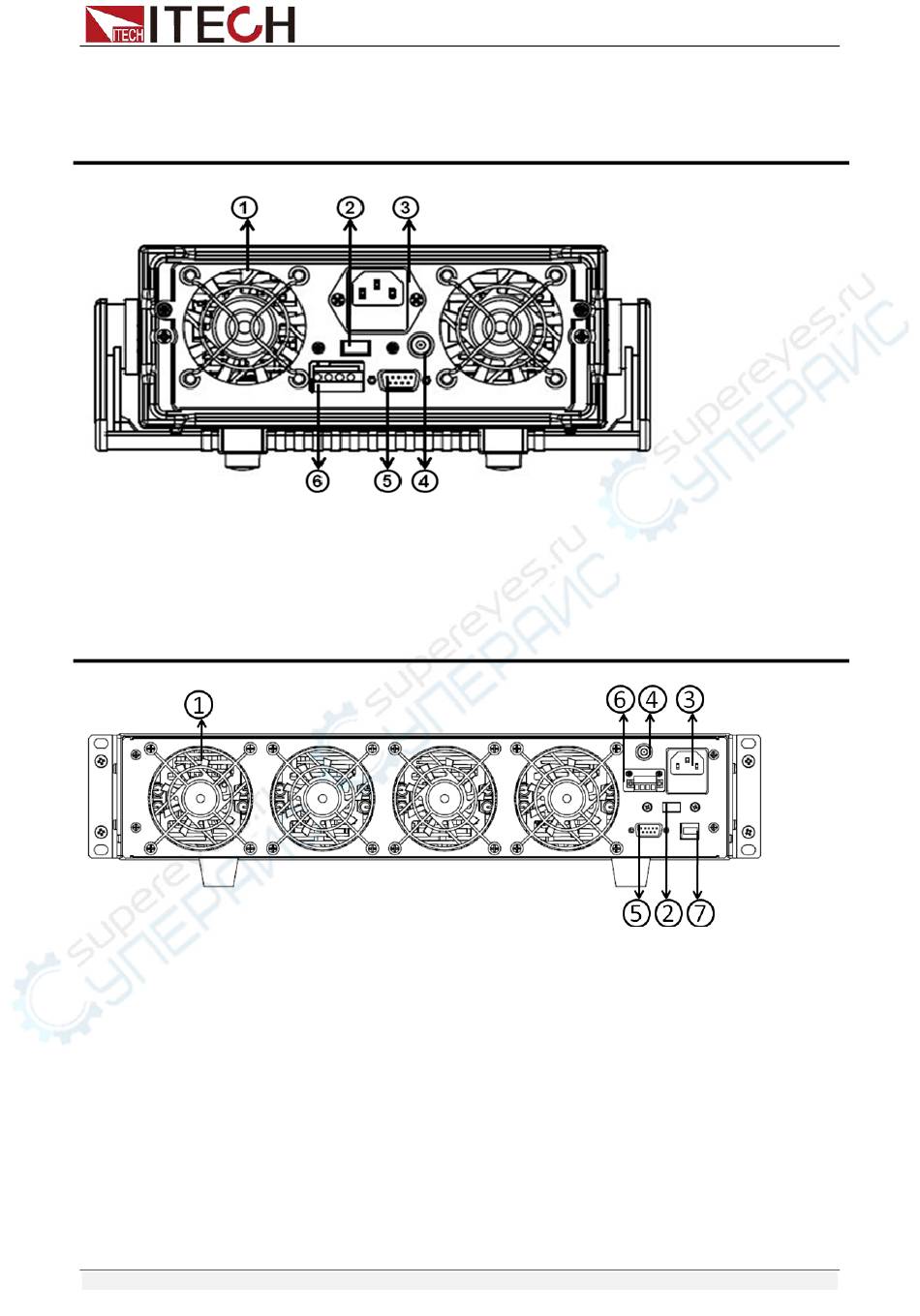

2.6 Rear Pannel Introduction
IT8500+ series electronic load different models have different rear pannels, the
rear panels and keyboards of different models are shown as below.
IT8511+/IT8511A+/ IT8511B+/ IT8512+/ IT8512B+/IT8512C+/IT8512H/IT8513A+/IT8513C+ Model
①Thermal window
②Line
voltage
switch( 110V/220V )
③3 pin IEC320 AC input connector
IT8514B+/IT8514C+Model
①Thermal window
②Line
voltage
switch( 110V/220V )
③3 pin IEC320 AC input connector
④Current monitoring Terminal
④Current monitoring Terminal
⑤9-Pin serial port interface connector
selection
⑥4 pin trigger and remote sensing connector
⑤RS232 communication cable interface
⑥4 pin trigger and remote sensing connector
selection
⑦USB communication cable interface
Copyright © Itech Electronics Co., Ltd.
Quick Start
10
