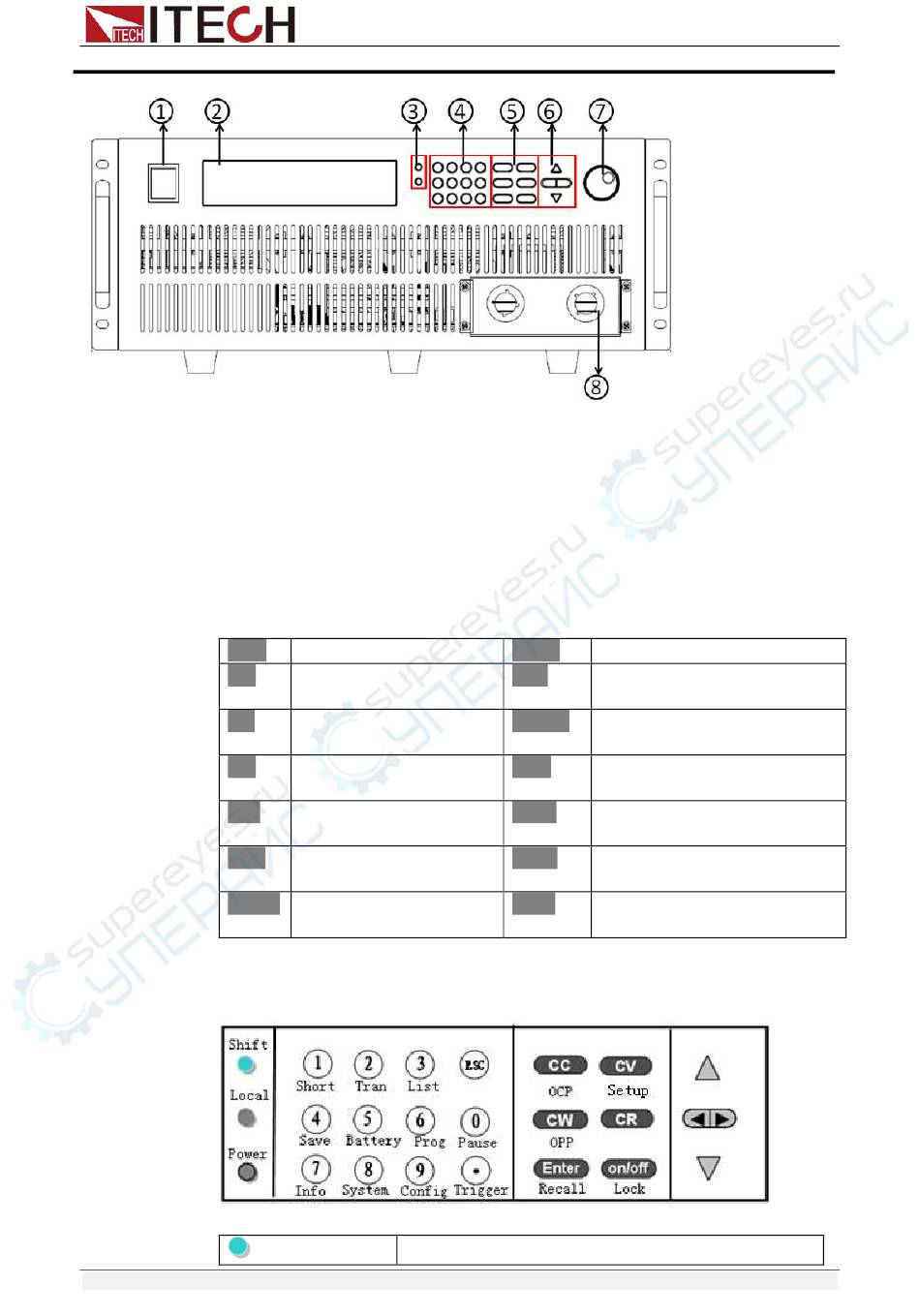

IT8516C + Model
① Power switch
② vacuum fluorescent display (VFD)
③ Com pound key and the local switch key
④ Num ber key:
Set the parameters value,
achieve the menu's function by key
combination

2.3 VFD Display Annunciators

OFF
CC
CV
CR
CW
Rmt
Timer

2.4 Front Panel Keys

( Blue-green)
⑤ Function key:
Set the operation mode
Control the input state: On/Off
⑥ Direction function
⑦ Rotary knob
⑧ Input terminal
The load is off.
Constant current
mode
Constant voltage
mode
Constant resistance
mode
Constant power mode
Instrument is in the
remote state.
LOAN ON is on.
Shift button is a composite key.
Copyright © Itech Electronics Co., Ltd.
Error
An error has occurred.
Trig
Waiting
signal
Sense
Remote sensing is on.
Prot OCP function is on.
Auto
Voltage range automatically
seleted function is open
Lock The keyboard is locked.
Shift Shift button
pressed.
Quick Start
for the trigger
has been
8
