The load handle may be adjusted based on three methods (as shown in icons
below). Be sure that appropriate force is applied to adjust the load handle to
appropriate position.
1.4 Disassembly of Load Handle
Please disassemble the load handle before installing equipment on the support.
Disassembly steps:
1.

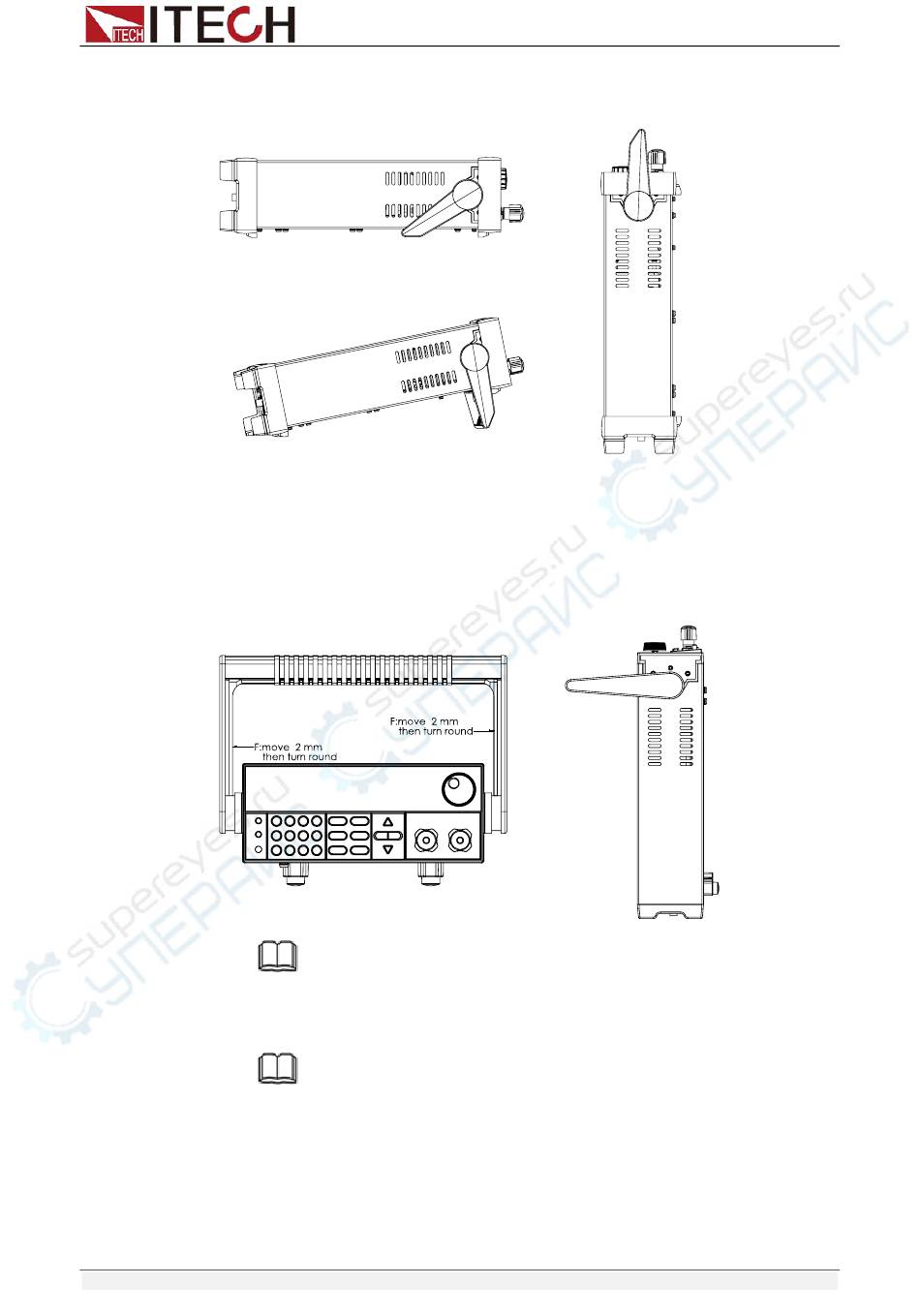

Adjust the handle to the position as shown in the figure below.
To easily disassemble handle, align the locking mouth and locking device, which is between
the handle and the instrument.
2.
Align the locking mouth, and pull out the handle towards two sides.
Do not use too much force and mind your hands during disassembly of load handle.
NOTE
NOTE
