2.2 Front Pannel Introduction

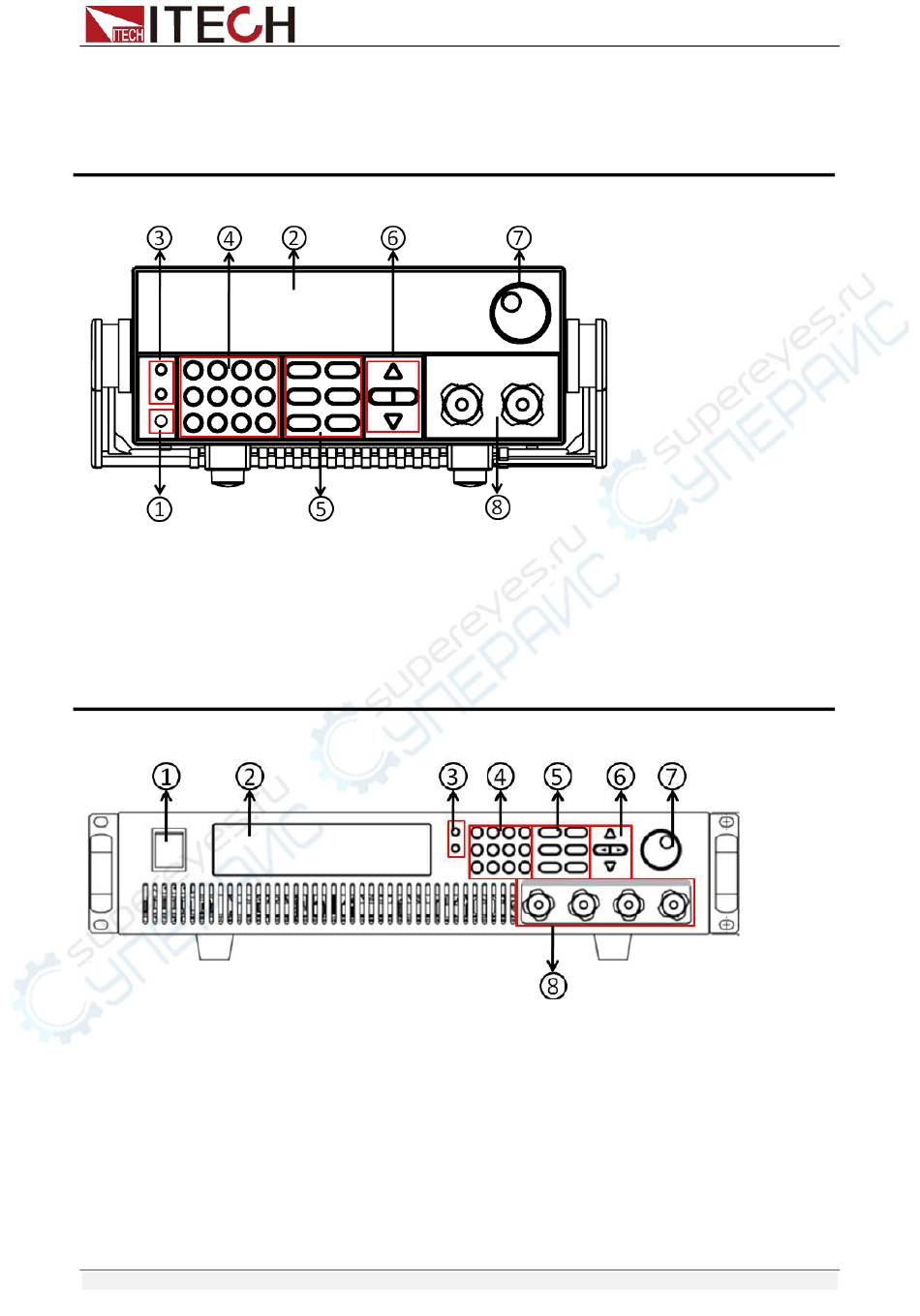

IT8500+ series electronic load different models have different front pannels, the
front panels and keyboards of different models are shown as below.
IT8511+/IT8511A+/IT8511B+/IT8512+/IT8512A+/IT8512B+/IT8512C+/IT8512H+/IT8513A+/IT
8513C+ Model
① Power switch
② vacuum fluorescent display (VFD)
③ Compound key and the local switch key
④ Number key:
Set the parameters value,
achieve the menu's function by key
combination
IT8514B+/IT8514C+ Model
① Power switch
② vacuum fluorescent display (VFD)
③ Compound key and the local switch key
④ Number key:
Set the parameters value,
achieve the menu's function by key
combination
⑤ Function key:
Set the operation mode
Control the input state: On/Off
⑥ Direction function
⑦ Rotary knob
⑧ Input terminal
⑤ Function key:
Set the operation mode
Control the input state: On/Off
⑥ Direction function
⑦ Rotary knob
⑧ Input terminal
