2.5 Screen Indicator Lamps Description

IT5101 series internal resistance tester screen indicator lamps description as
follows:
Flag

2.6 Rear Panel Introduction

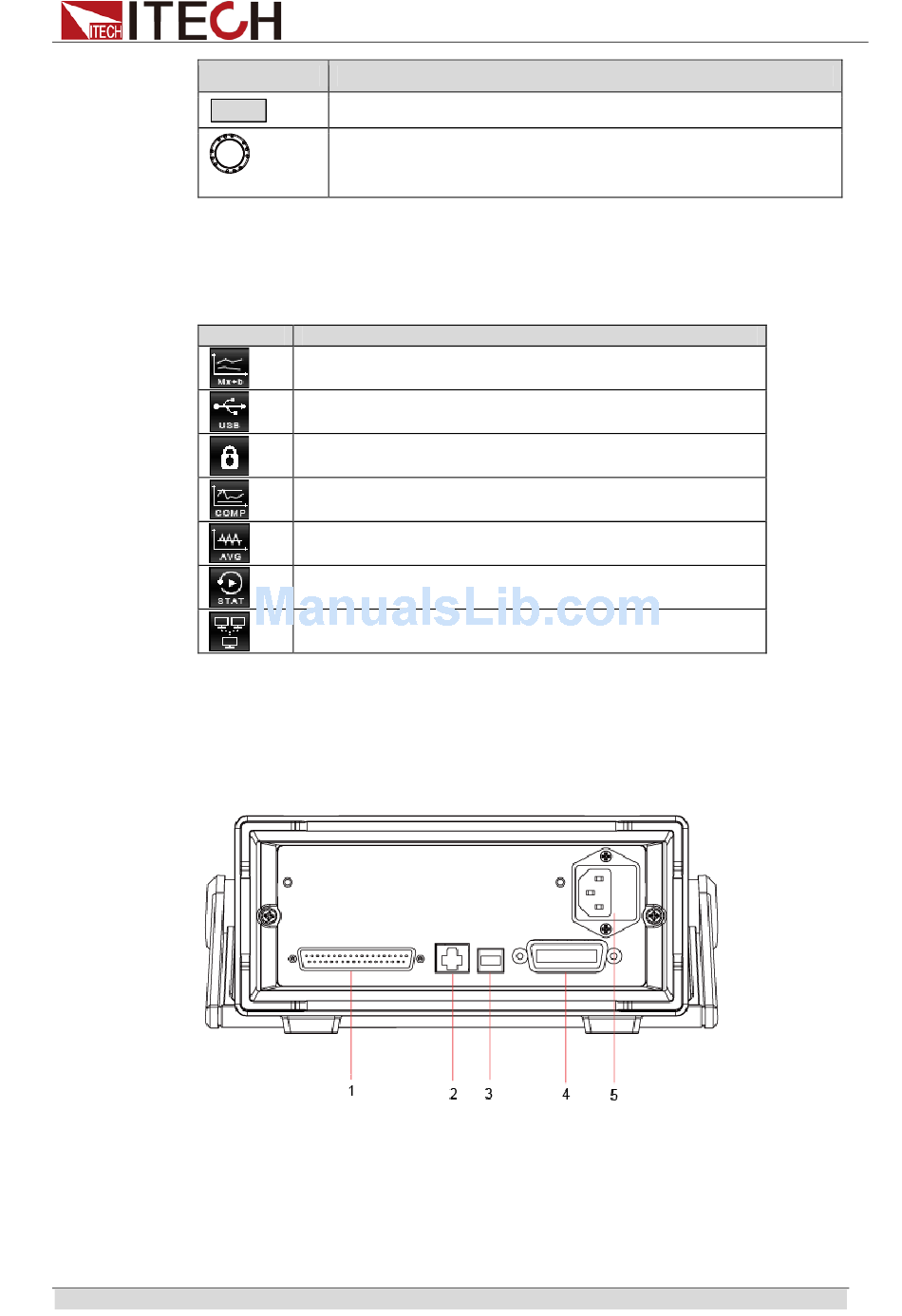

Schematic diagram of rear panel of IT5101 series internal resistance tester is
as follow.
1 System I/O Interface
2 LAN Interface
3 USB Interface

2.7 Power-on Selftest

A successful selftest indicates that the purchased power product meets delivery
standards and is available for normal usage.
Name and function
Soft keys for corresponding screen menu operations
Rotary knob: used for setting the value indicated by the cursor,
selecting the voltage and resistance range, adjusting the
waveform, etc.
Function Description
Mx+B statistic function ON
Insert USB periphery device
Key lock. Press this key to disable all the keys except
Esc; press Esc key again for 5s to unlock all other keys.
Compare function ON.
Average function ON.
Statistic function ON.
Used for turning on remote control
Copyright© Itech
Electronics Co., Ltd.
4 GPIB Interface
5 AC Power Input
Quick Start
