Rear Pannel Introduction - ITech IT8500plus Series User Manual
Dc programmable electronic load
Hide thumbs
Also See for IT8500plus Series:
- Programming manual (85 pages) ,
- User manual (80 pages) ,
- Manual (32 pages)
Table of Contents
Advertisement
Power switch
①
VFD display
②
Composite key and Local key
③
④ Number key:
Set the parameters value
Achieve the menu's function by key combination
⑤ Function key:
Set the operation mode
Control the input state：On/Off
Direction function
⑥
Rotary knob
⑦
Input terminal
⑧
2.3 Rear Pannel Introduction

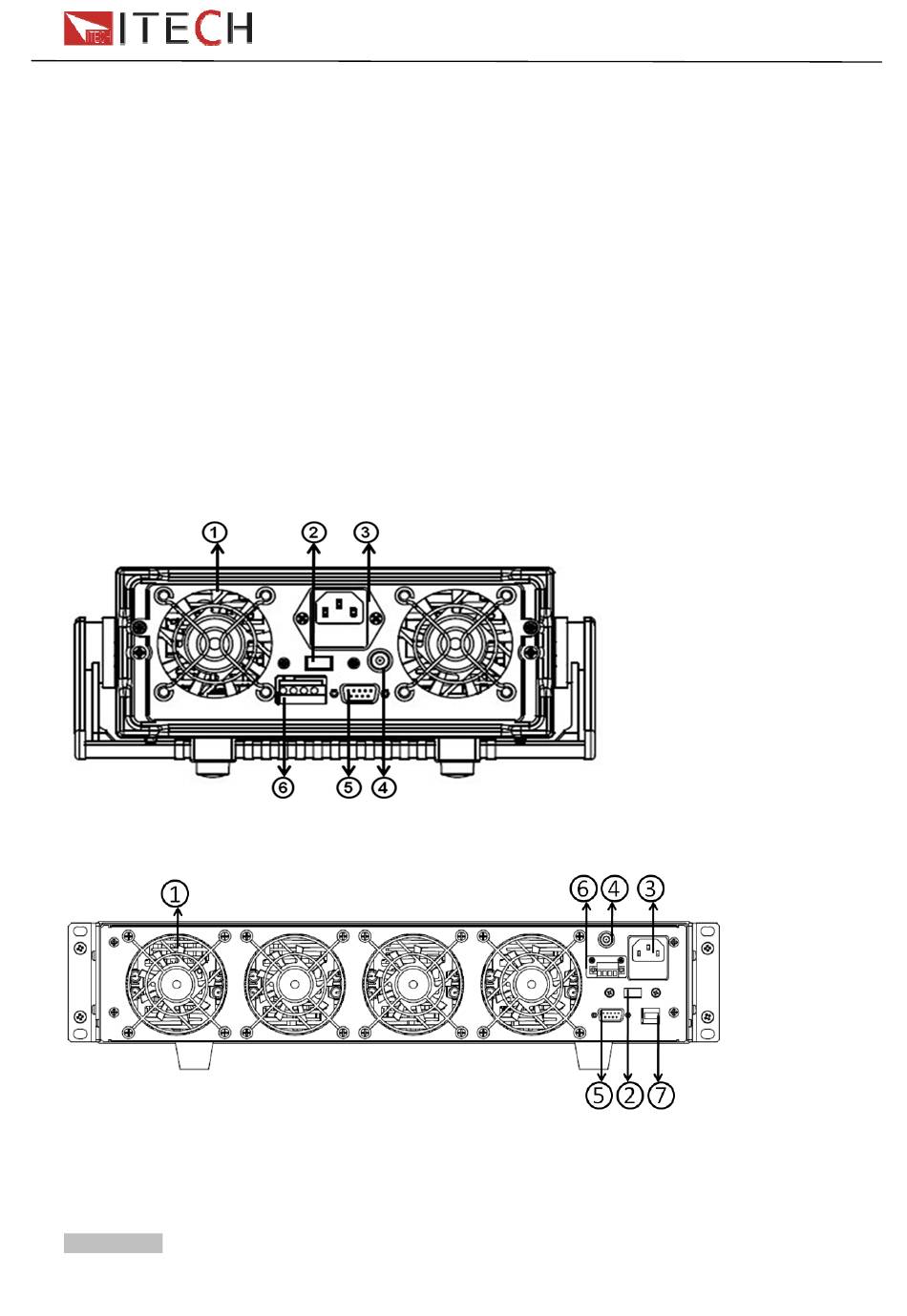

Rear panel of IT8511+/IT8512+/IT8512B+/IT8512C+/IT8513C+
Rear panel of IT8514B+/IT8514C+
User Manual
18
IT8500 USER MANUAL
