Wiring - Maple Systems HMC7000 Series Manual

Table of Contents

HMC7000 Series I/O Module Guide

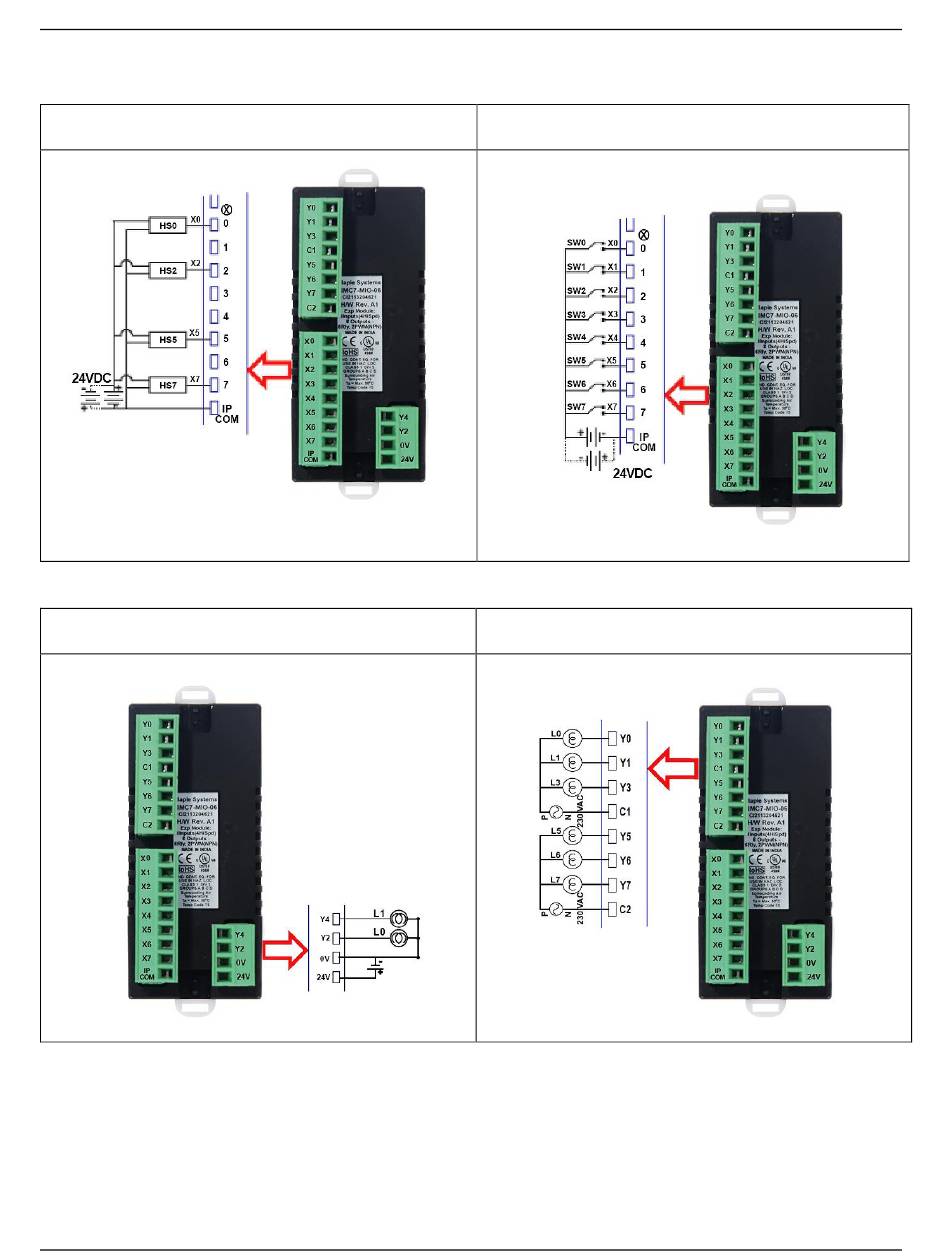

Wiring:

For connecting to high-speed inputs:

For connecting to PWM outputs:

HMC7000 Series I/O Module Guide

For connecting to normal inputs:

For connecting to relay outputs:
