HMC7000 Series I/O Module Guide

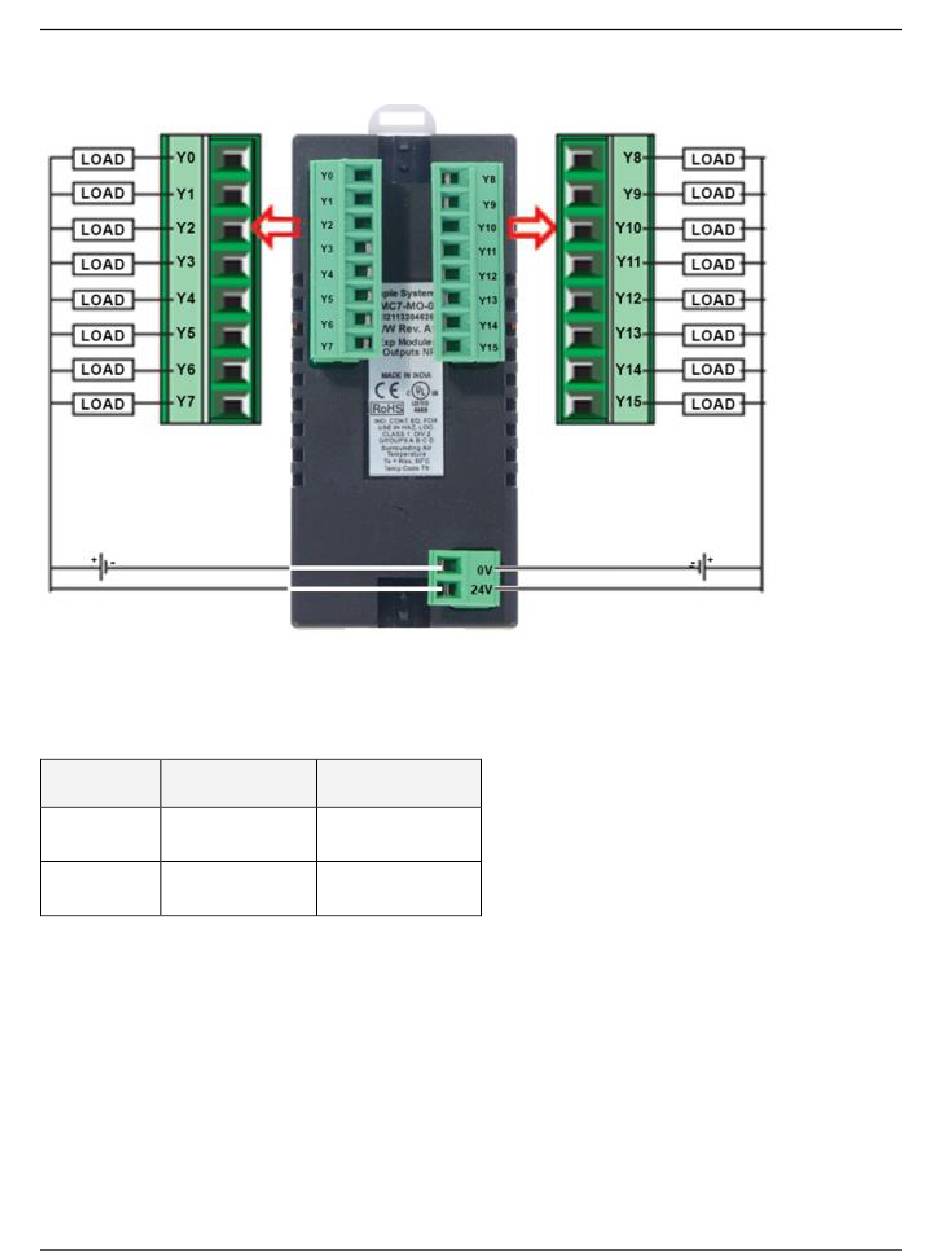

Wiring:

Configuration:

Use MAPware-7000 to assign output (Y and YW) addresses to the module. These addresses are created
according to the slot location of the module, where nn refers to the slot number (ex. 01...05):
Register Description
Ynn000-
Output Bits
Ynn015
Output Word
YWnn00
Data
HMC7000 Series I/O Module Guide
Access
Read/Write
Read/Write
