Wiring; Configuration - Maple Systems HMC7000 Series Manual

HMC7000 Series I/O Module Guide

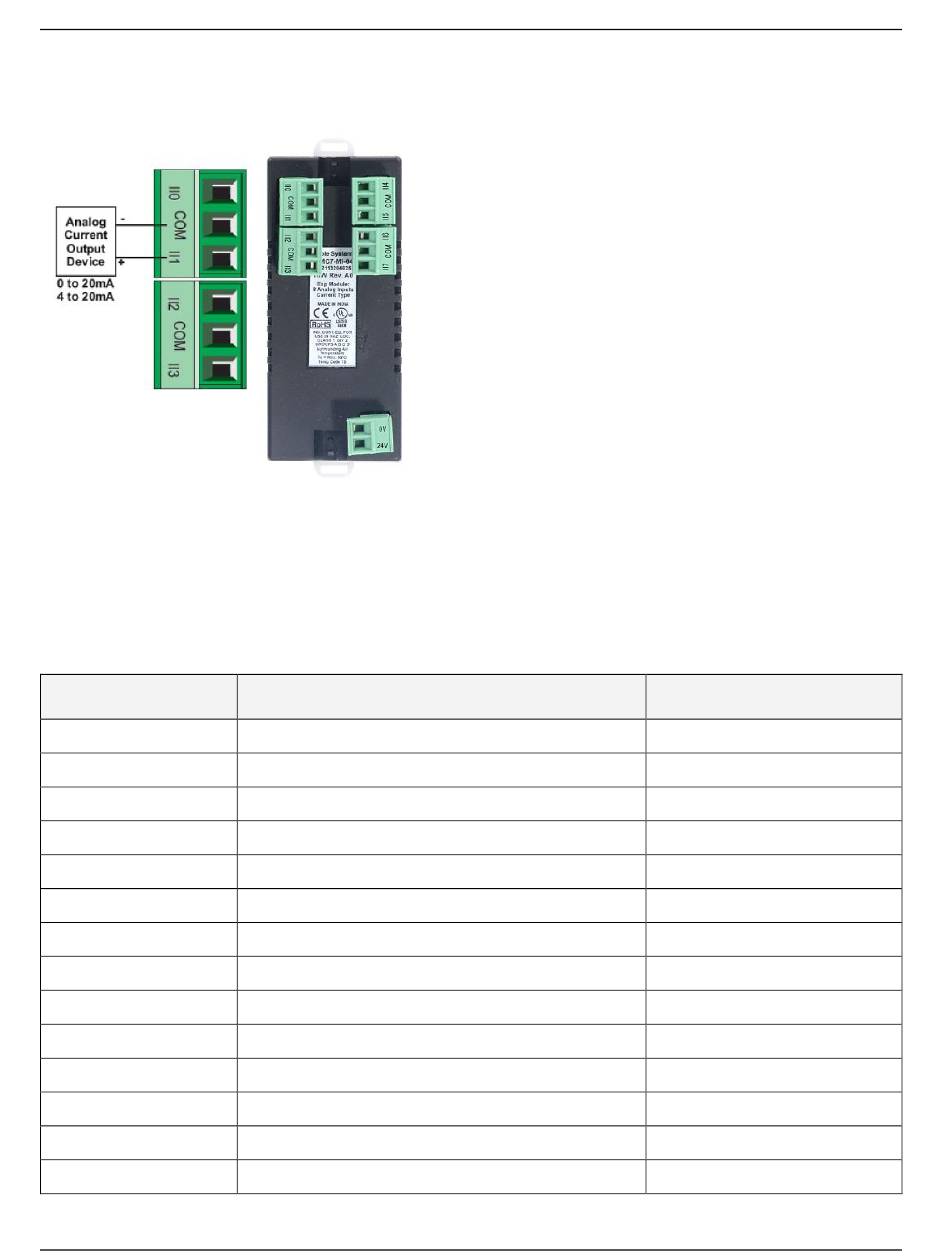

Wiring:

Configuration:

Use MAPware-7000 to assign input (XW) and configuration (MW) memory addresses to the module. These
addresses are created according to the slot location of the module, where nn refers to the slot
number (ex. 01...05):
Register
XWnn00
XWnn01
XWnn02
XWnn03
XWnn04
XWnn05
XWnn06
XWnn07
MWnn00
MWnn01
MWnn02
MWnn03
MWnn04
MWnn05
HMC7000 Series I/O Module Guide
Description
Input Channel 1 Data
Input Channel 2 Data
Input Channel 3 Data
Input Channel 4 Data
Input Channel 5 Data
Input Channel 6 Data
Input Channel 7 Data
Input Channel 8 Data
Input Channel 1 Configuration Register
Input Channel 2 Configuration Register
Input Channel 3 Configuration Register
Input Channel 4 Configuration Register
Input Channel 5 Configuration Register
Input Channel 6 Configuration Register
Access
Read Only
Read Only
Read Only
Read Only
Read Only
Read Only
Read Only
Read Only
Read/Write
Read/Write
Read/Write
Read/Write
Read/Write
Read/Write
