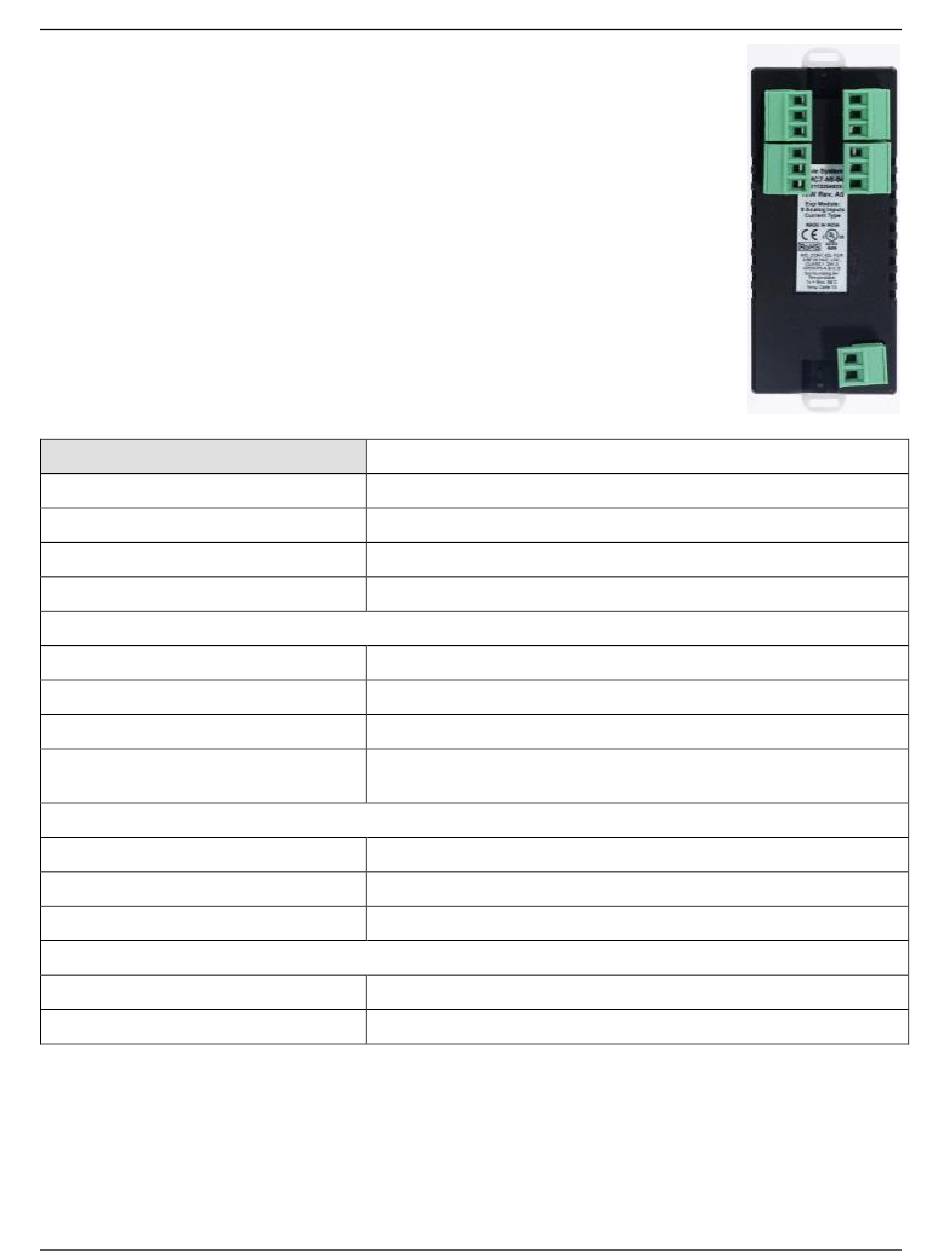

HMC7-MI-04 (8 Current Input Analog Module)

This module is an analog input module for the HMC7000 Series
models. It has eight analog inputs, which can measure 0-20mA,
and 4-20mA signals.

Specifications:

Power
Approvals
Analog Inputs
Resolution
Connection method
Voltage Mode
Input range
Value of LSB:
Input Impedance
Accuracy
General
Operating Temperature
Operating Humidity
Mechanical Dimension (LxWxH)
Input Power Supply
Input Voltage
Input Current
HMC7000 Series I/O Module Guide
3.9 VDC from HMC7000 base
CE, UL
8 Inputs (0-20mA, 4-20mA)
12 bit
Removable terminals (3.81 mm pitch)
0-20mA, 4-20mA
3.906uA
120Ω
At 25°C: 0.1% of full scale
Overall Accuracy (-25°C to 55°C) 1% of full scale
0 to 55°C
10% to 90% (non condensing)
3.11x1.18x1.42 inches [79x30x36mm]
24VDC
50mA
16
16
