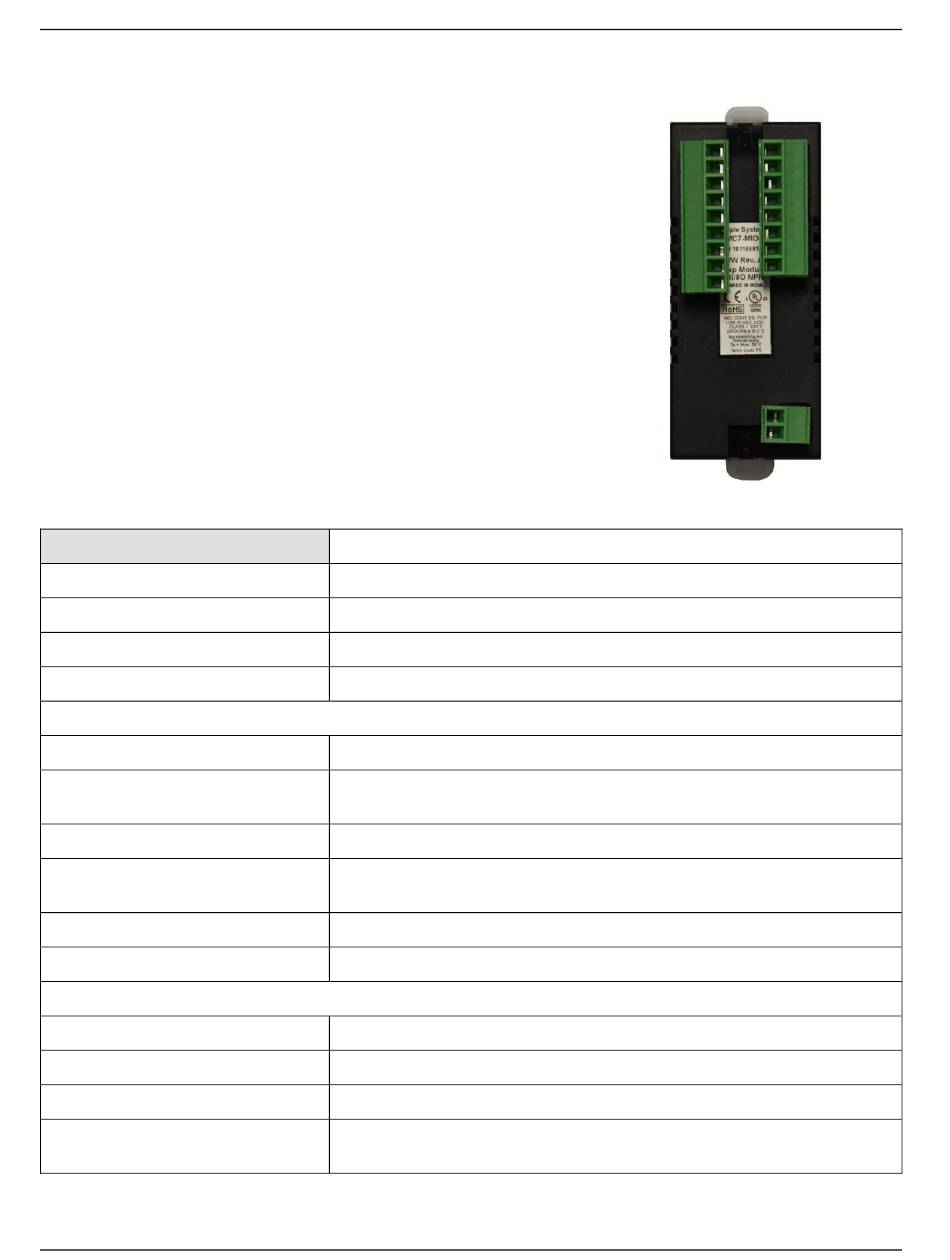

HMC7-MI-02 (4 Input Analog Module)

This module is an analog input module for the HMC7000 Series
models. It has four analog inputs, which can measure 0-10V, -
10 to +10V, 0-20mA, and 4-20mA signals.

Specifications:

Power
Approvals
Analog Inputs
Resolution
Connection method
Voltage Mode
Input range
Value of LSB:
Input Impedance
Accuracy
Frequency Limit (-3db)
Behavior upon sensor failure
Current Mode
Input Range
Value of LSB
Input Impedance
Accuracy
HMC7000 Series I/O Module Guide
3.9 VDC from HMC7000 base
CE, UL
4 Inputs (0-10V, -10 to +10V, 0-20mA, and 4-20mA)
12 bit
Removable terminals (3.81 mm pitch)
-10V to +10V, 0 - 10V
For 0-10V: 2.44mV
For +/-10V: 4.88mV
200KΩ
At 25°C: 0.1% of full scale
Overall Accuracy (-25°C to 55°C) 0.3% of full scale
3.5KHz
Input goes to 0, as if no input is connected
4mA-20mA, 0mA-20mA
3.906 μA
120Ω
At 25°C: 0.2% of full scale
Overall Accuracy (-25°C to 55°C) 0.8% of full scale
