HMC7000 Series I/O Module Guide
General
Operating Temperature
Operating Humidity
Mechanical Dimension (LxWxH)
Input Power Supply
Input Voltage
Input Current

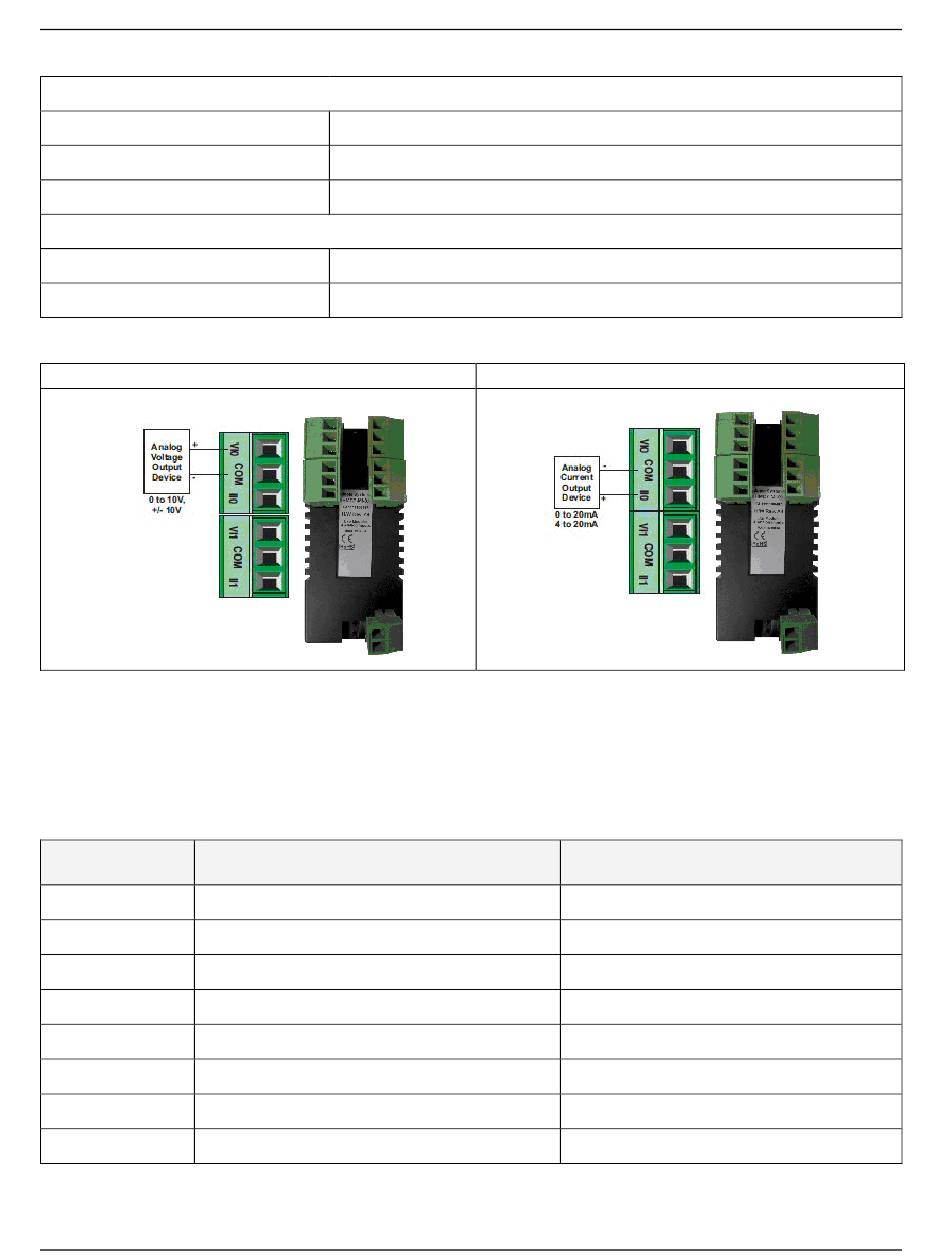

Wiring:

For connecting to analog voltage inputs:

Configuration:

Use MAPware-7000 to assign input (XW) and configuration (MW) memory addresses to the module. These
addresses are created according to the slot location of the module, where nn refers to the slot
number (ex. 01...05):
Register
XWnn00 Input Channel 1 Data
XWnn01 Input Channel 2 Data
XWnn02 Input Channel 3 Data
XWnn03 Input Channel 4 Data
MWnn00 Input Channel 1 Configuration Register
MWnn01 Input Channel 2 Configuration Register
MWnn02 Input Channel 3 Configuration Register
MWnn03 Input Channel 4 Configuration Register
HMC7000 Series I/O Module Guide
0 to 55°C
10% to 90% (non condensing)
3.11x1.18x1.42 inches [79x30x36mm]
24VDC
50mA
Connecting to analog current inputs:
Description Access
Read Only
Read Only
Read Only
Read Only
Read/Write
Read/Write
Read/Write
Read/Write
