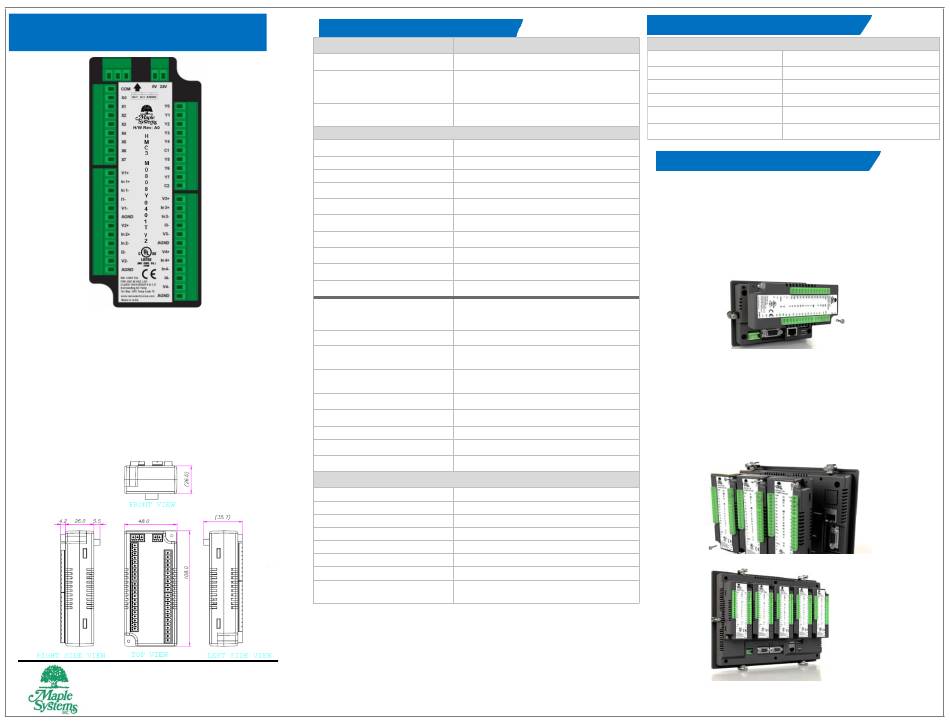

Maple Systems HMC3-M0808Y0401T-V2 Quick Start Manual

HMC3-M0808Y0401T-V2
Quick Start Guide
HMC3-M0808Y0401T-V2: 8 Bi-directional type inputs, 2
high speed. 8 Digital outputs - 2 PNP type transistor
outputs, 2 PWM and 6 Relay type outputs. 4 Universal
inputs (16-bit resolution) & 1 Analog output (12-bit
resolution)
For more information, please refer to the
MAPware-7000 Programming Manual, available in the
software help section and/or you can download from the
.
Maple Systems website
Dimension Details:
For More Information, visit
https:\\www.maplesystems.com
SPECIFICATIONS
Power Supply
Voltage Rating
24VDC (±15%)
Input/channel: 24 VDC, 5mA typical;
Power Rating Output/Channel: 250mA @ 24VDC for PNP,
2A @24VDC & 230VAC for Relay
Optical Isolation for all I/O points. High
Isolation
isolation voltage (BV= Greater than 1.5kV)
Local I/O Specification
Number of Inputs 8 Inputs Bi-directional Type
ON Voltage Min.: 15VDC, Max.: 30VDC
OFF Voltage Min.: -3VDC, Max.: 3VDC
Nominal Input Voltage 24VDC
Nominal Input Current 5mA typical
Input Response Time ON: 10msec, OFF: 10msec
Input Impedance Greater than 4.8kΩ
High Speed Inputs 2 pairs, X0-X1, X2-X3
Max. i/p frequency
200kHz
Max. Input count
42949672965
8 Digital outputs - 2 PNP type transistor
Number of Outputs
outputs, 2 PWM and 6 Relay type
outputs
Nominal Output Voltage 24VDC
250mA @ 24VDC for PNP,
Nominal Output Current
2A @24VDC & 230VAC for Relay
ON: 10msec, OFF: 10msec (for Relay)
Output Response Time
ON/OFF: 20 to 30 µs (for transistor)
High Speed Outputs (PWM) 2, Y0 and Y1
Max. o/p frequency 200kHz
Frequency step 1Hz
PWM duty cycle 0 to 100%
Duty cycle step 1%
Analog I/O Specification
Analog Input Total Channels 4 Universal Input channels (16 bit resolution)
Input Type 0-20mA, 4-20mA & 0-10VDC, 0-5VDC
mV Input 0-50mV, 0-100mV
PT100 (α1, α2), PT1000
RTD Input*
Thermocouple input* B, R, S, E, J, K, N, T type
Analog Output Total Channels 1 Output channels (12 bit resolution)
Output type 0-20mA, 4-20mA and 0-10VDC, 0-5VDC
± 0.2% of full scale @ 25°C & ± 0.5% of full
Accuracy
scale over temperature range
[Note: HMC3-V2 I/O Module Series are only compatible with HMC2000/
HMC4000 Series Base Model]
SPECIFICATIONS
Environment & Approvals
Operating Temperature** 0 to 60°C
Storage Temperature -20 to 85°C
Humidity 10 to 90% (Non-Condensing)
Short Circuit Protection Yes
Product Dimensions 48mm x 108mm x 41mm (W x H x D)
Approvals CE, UL
**Operating temperature: For UL 0 to 50°C
PANEL MOUNTING
Mounting with base models:
With the expansions, while unpacking the unit, user will
find two screws already attached with base bottom
case. Fix the expansion with the HMI as shown below
with these screws. Fix the Expansion connector with
the expansion female connector given on base HMI.
Apply torque 0.1Nm while fixing with base unit.
Mounting with 4.3" base model:
Mounting with 7" and 10.1" base model:
For 7" and 10.1" HMI models, the procedure of
mounting expansions is same. Only instead of
horizontal mounting, expansions will mount in vertical
directions.
Hence, accordingly these bases are having facility to
add 3 and 5 expansions at a time respectively.
Mounting with 7" base model:
Mounting with 10.1" base model:
Note: All Pictures shown are for illustration purpose
only. Actual product size may vary.
