Maple Systems MLE-A0800 Quick Start Manual

Quick Start Guide
MLE-A0800
Description:
MLE-A0800 I/O expansion module with 8 analog inputs.
Contents:
1 MLE-A0800 (in plastic bag)
Removable screw type terminal blocks*
Removable power supply connector*
Quick Start Guide
*Note: Connector manufacturer may vary.
Programming software (MAPware-7000), cables, and power supply
purchased separately.
Specifications:
Power: 3.75VDC from MLC PLC base
80mA maximum
Isolation: I/O optically isolated from internal
circuit
Analog Inputs: 8 inputs
Voltage modes: 0 - 10VDC
Current modes: 4 - 20mA
Resolution: 16 bit
Accuracy: 0.2% of Full Scale
Non-linearity: 0.04% max.
Input Impedance: 470KΩ (voltage mode)
100Ω (current mode)
Temperature drift: 60 ppm
External DC Power Supply Required:
Input Voltage: 24VDC +/-15%
Current Rating: Max. 100mA (all outputs ON)
Connection Method: Removable terminals (3.81 mm pitch)
Operating Temp: 0 to 55° C
Humidity: 10% to 90% (non-condensing)
Dimensions (LxWxH): 3.94 x 1.38 x 2.76 inches
[100x35x70mm]
Doc. No. 1011-0325
Conversion Time:
Mode Cycle Time
Voltage 1370 msec.
Current 1050 msec.
Note: this represents the amount of time required to convert all
analog inputs to digital values when configured as above.

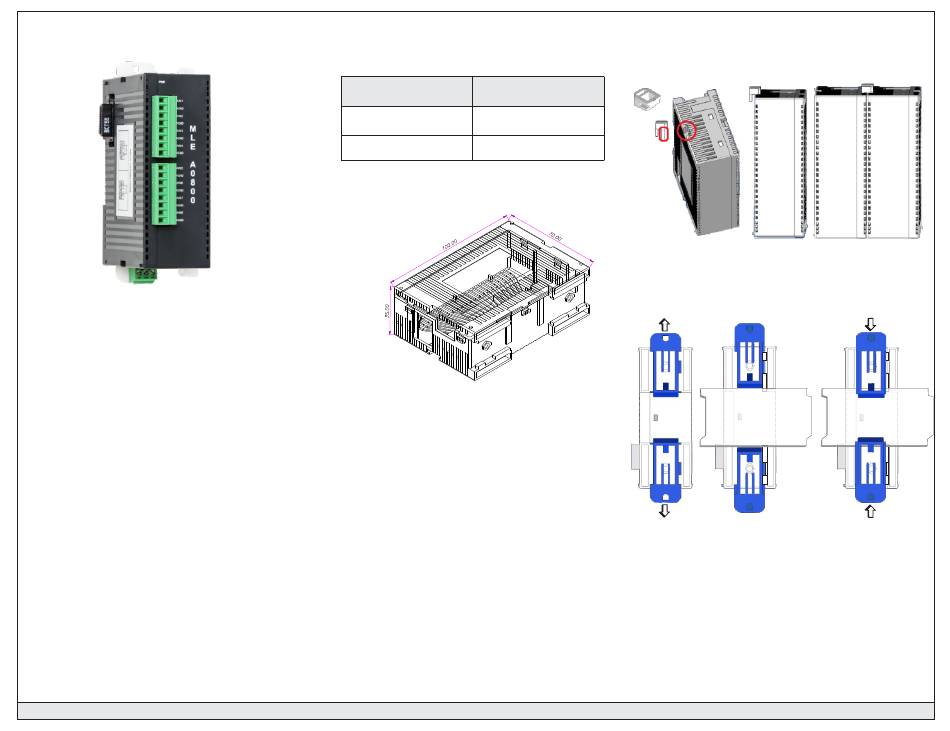

Dimensional Details:
Mounting Module to MLC CPU Base or Expansion:
The MLE I/O modules are connected in series to a MLC1-E, MLC2-
E, or MLC3-E CPU base- up to a maximum of sixteen MLE I/O
modules.
Each IO module is designated a slot number (nn = 1-16) based
upon its location in relation to the MLC CPU base (i.e. the IO
module connected directly to the MLC base is Slot 1, the IO
module to the right is Slot 2, and so on.)
Each MLE I/O module is attached to the MLC CPU base or another
I/O module with a 20pin I/O interconnect plug located on the left
side of each module. In turn, the MLC CPU base or I/O module
has an interconnect jack located on the right side of the module
(remove the protective sticker).
To attach a MLE I/O expansion module, perform the following
steps:
1. Locate the two small white lock connectors above the
interconnect jack on the right side of the MLC CPU base
(or I/O expansion module).
2. Slide each lock connector out, along the length of the module.
3. Align the interconnect plug (on the MLE expansion module) and
insert into the jack of the MLC CPU base. Carefully compress
the two units until the interconnect plug is fully connected to the
jack.
4. Slide each lock connector back in (towards the module) until it
'snaps' into place.
Maple Systems, Inc. 808 134th St SW, Suite 120, Everett, WA 98204-7333 www.maplesystems.com
Fig 1 Fig 2 Fig 3
Mounting the PLC to a DIN rail:
Fig 1 Fig 2
Fig 1:
Pull out the white DIN rail sliders on the back side of each module
(along the length of the module).
Fig 2:
Place the module on the DIN rail plate.
Fig 3:
Push in the DIN rail sliders, so that the module is securely
connected to the DIN rail plate.
Fig 4
Fig 3
Rev 00, 04/03/2018
