Wiring - Maple Systems HMC7000 Series Manual

HMC7000 Series I/O Module Guide
High Speed Channels
No. of Outputs
General
Operating Temperature
Operating Humidity
Mechanical Dimension (LxWxH)
Input Power Supply
Input Voltage
Input Current

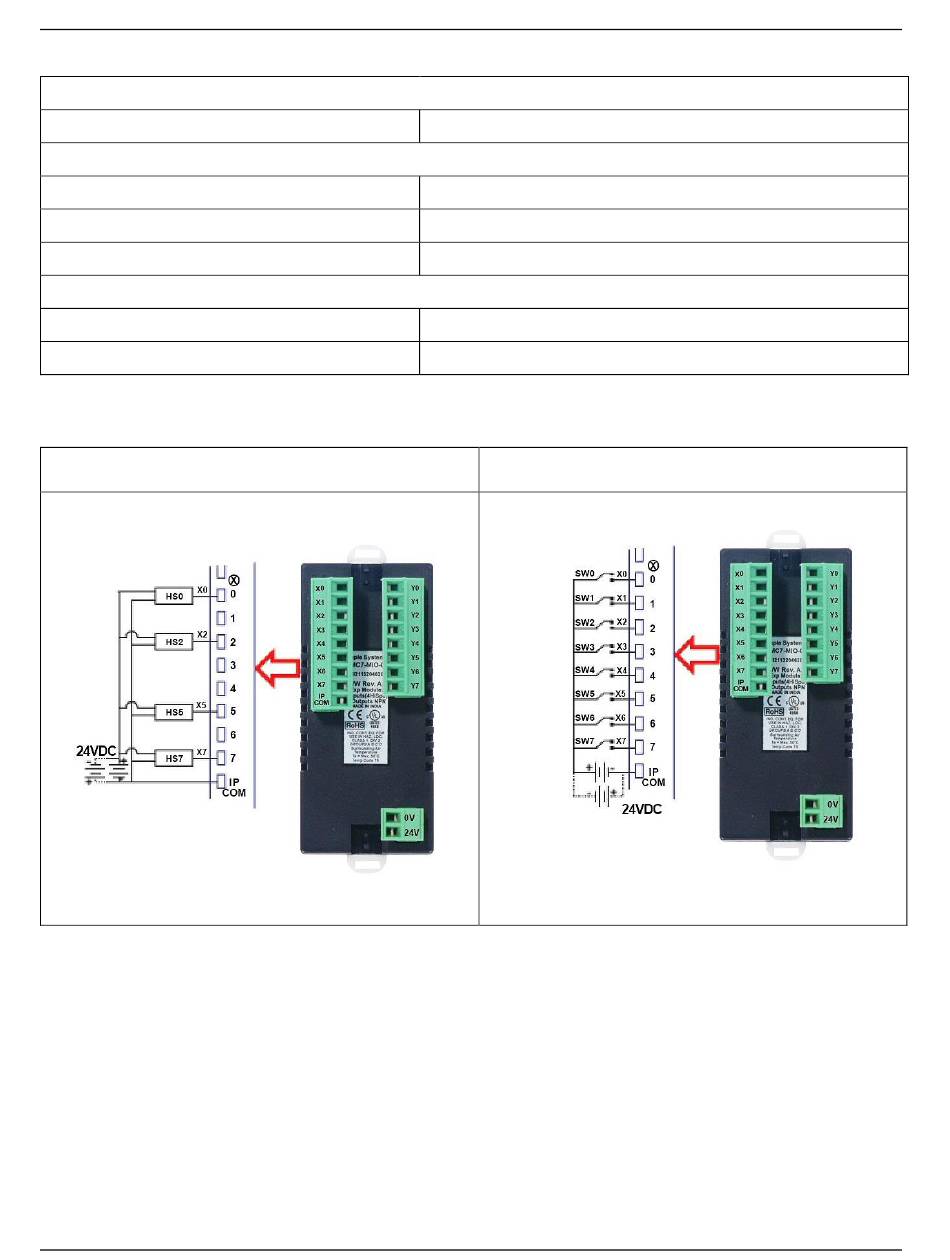

Wiring:

Connecting to High-Speed inputs:
HMC7000 Series I/O Module Guide
2 channels (Y2 and Y4)
0 to 55°C
10% to 90% (non condensing)
3.11x1.18x1.42 inches [79x30x36mm]
24VDC
4A maximum
Connecting to Normal inputs:
38
38
