HMC7000 Series I/O Module Guide

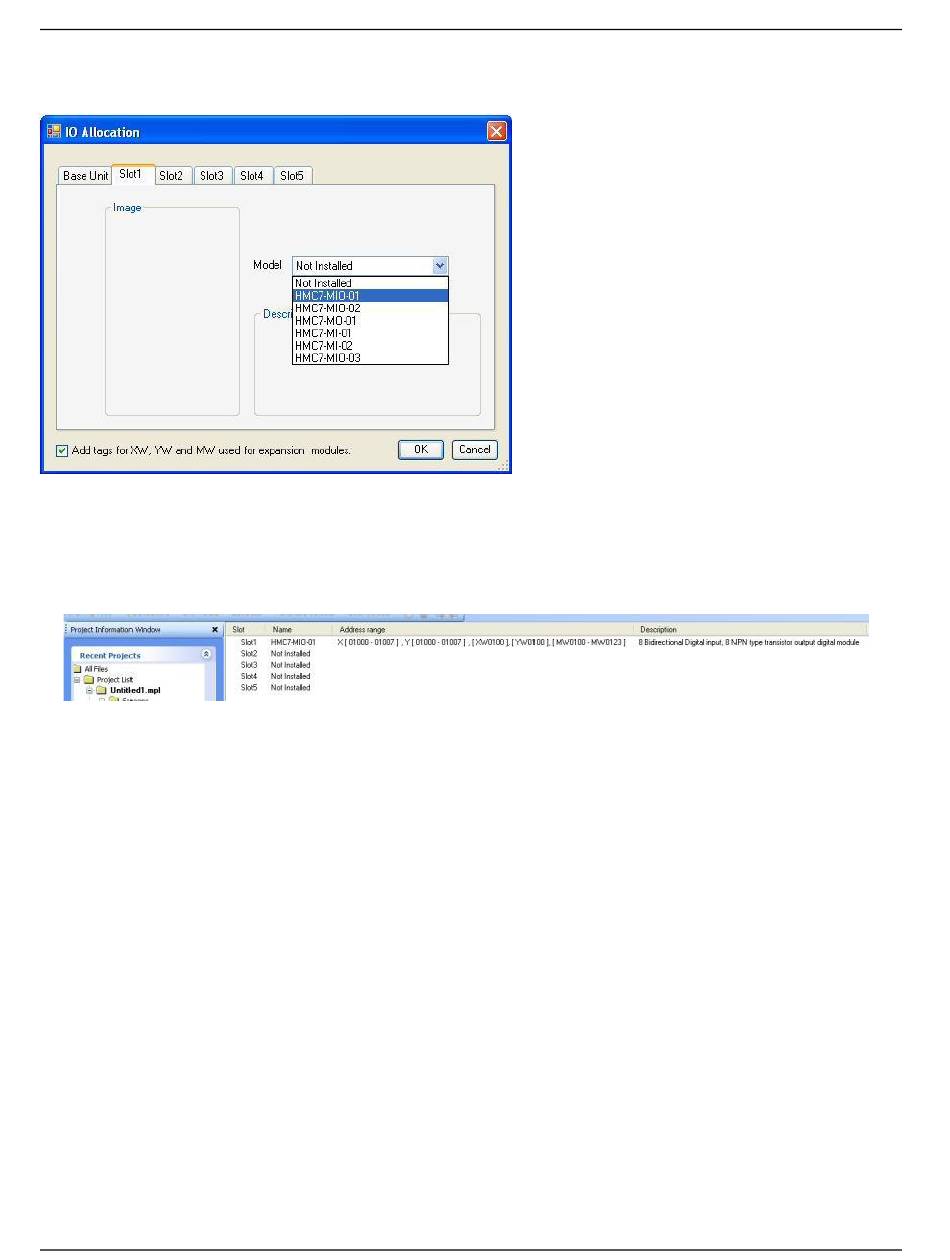

4. Double-click on Slot 1 to display the I/O Allocation dialog:
5. Select from the list box, the particular I/O expansion module installed in Slot 1 of the HMC7000. When
the checkbox to 'Add tags for XW, YW, and MW' is checked, MAPware-7000 automatically assigns tags
to the Tag Database for the I/O module. The tags configured are based upon the module and the slot
location. Click OK.
