HMC7000 Series I/O Module Guide

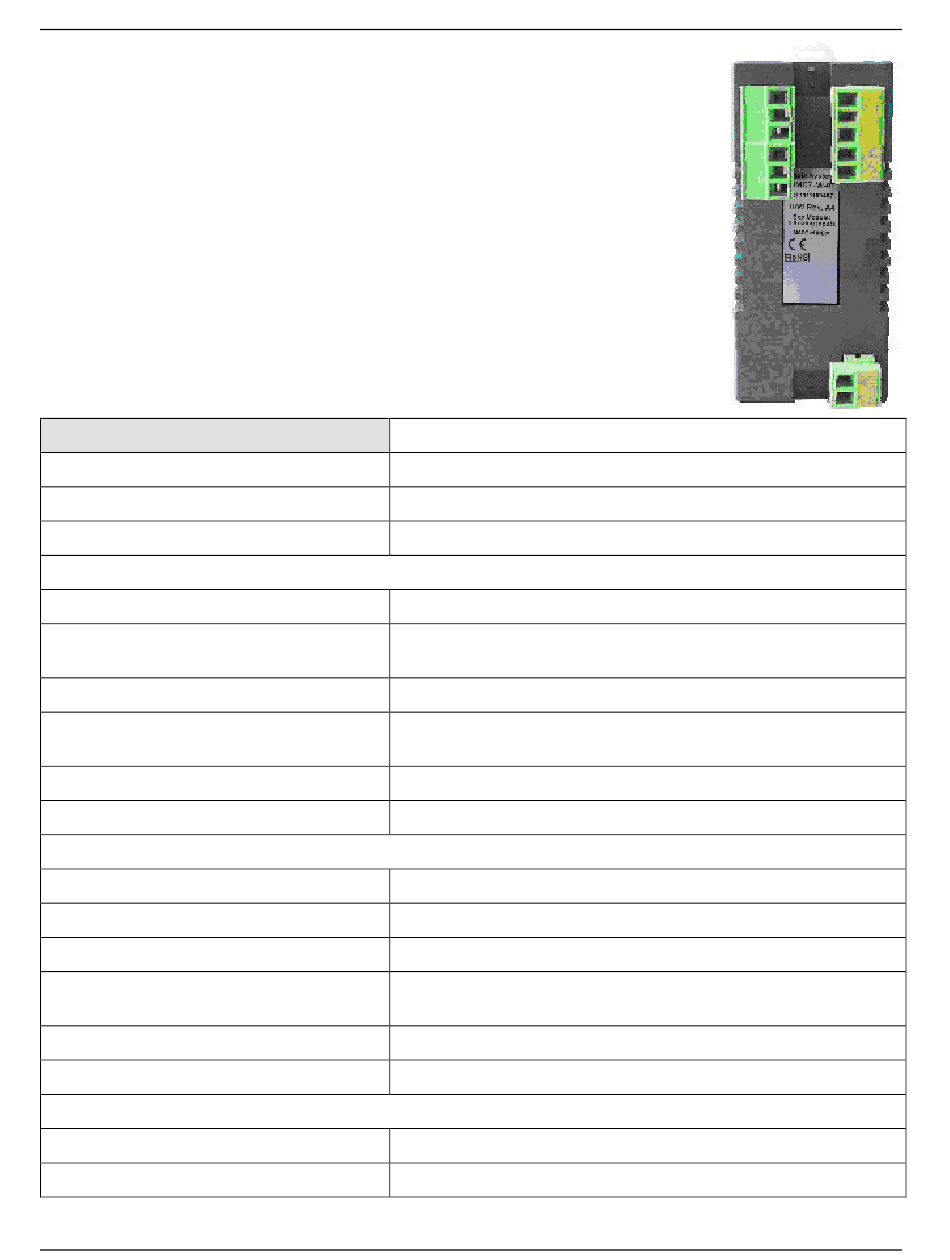

HMC7-MIO-03 (2 Input 2 Output Analog Module)

This module is an analog input/output module for the
HMC7000 Series models. It has two analog inputs, which can
be used to measure 0-10V, -10 to +10V, 0-20mA, and 4-20mA
signals. It also has two analog outputs to provide 0-10V, 0-
20mA, and 4-20mA signals.

Specifications:

Power
Approvals
Analog Inputs
Resolution
Voltage Mode
Input range
Value of LSB:
Input Impedance
Accuracy
Frequency Limit (-3db)
Behavior upon sensor failure
Current Mode
Input Range
Value of LSB
Input Impedance
Accuracy
Analog Outputs
Resolution
Voltage Mode
Output range
Value of LSB:
HMC7000 Series I/O Module Guide
3.9 VDC from HMC7000 base
CE, UL
2 Inputs (0-10V, -10 to +10V, 0-20mA, and 4-20mA)
12 bit
-10V to +10V, 0 – 10V
For 0-10V: 2.44mV
For +/-10V: 4.88mV
200KΩ
At 25°C: 0.1% of full scale
Overall Accuracy (-25°C to 55°C) 0.3% of full scale
3.5KHz
Input goes to 0, as if no input is connected
4mA-20mA, 0mA-20mA
3.906 μA
120Ω
At 25°C: 0.2% of full scale
Overall Accuracy (-25°C to 55°C) 0.8% of full scale
2 Outputs (0-10V, 0-20mA, and 4-20mA)
12 bit
0V to +10V
2.44mV/Step
