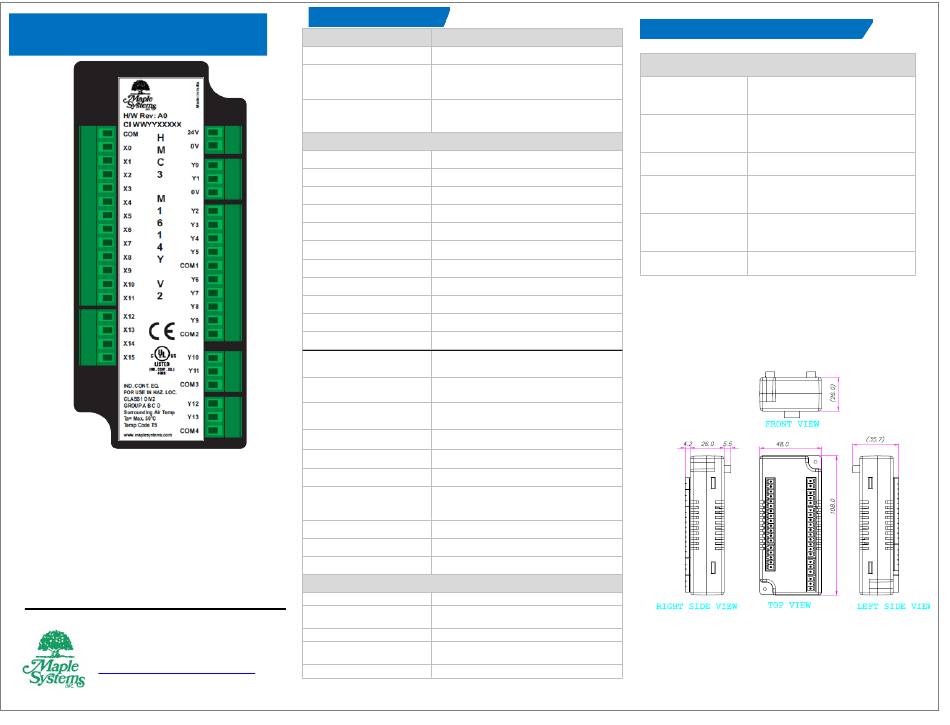

Maple Systems HMC3-M1614Y-V2 Quick Start Manual

HMC3-M1614Y-V2
Quick Start Guide
HMC3-M1614Y-V2: 16 Bi-directional type inputs, 2
high speed. 14 Digital outputs - 2 PNP type
transistor outputs, 1 PWM and 12 Relay type
outputs.
For more information, please refer to the
MAPware-7000 Programming Manual, available in
software help section and/or you can download
from the Maple Systems website.
For More Information, visit
https:\\www.maplesystems.com
SPECIFICATIONS
Power Supply
Voltage Rating 24VDC (±15%), 12V from base
Input/channel: 24VDC, 5mA typical
Power Rating
Output/Channel: 250mA @ 24VDC
Optical Isolation for all I/O points. High isolation
Isolation
voltage (BV= Greater than 1.5kV)
Local I/O Specification
Number of Inputs 16 Inputs Bi-directional Type
Input Design According to EN 61131-2 Type 1
ON Voltage Min.: 15VDC, Max.: 30VDC
OFF Voltage Min.: -3VDC, Max.: 5VDC
Nominal Input Voltage 24VDC
Nominal Input Current 5mA typical
Input Response Time ON: 10msec, OFF: 10msec
Input Impedance 4.8kΩ
High Speed Inputs 2 pairs, X0-X1, X2-X3
Max Input Frequency 200kHz
Max Input Count 4,294,967,295 (32-bit)
2 PNP type transistor outputs
Number of Outputs
and 12 Relay type outputs
Min ON: 22VDC, Max. ON: 30VDC (Voltage across
ON Output Voltage
load)
Min OFF: 0.2VDC
OFF Output Voltage
Max. OFF: 1VDC
Nominal Output Voltage 30VDC
Nominal Output Current 250mA type/channel, 2A @ 230VAC
Output Response Time ON: 10msec, OFF: 10msec
96Ω/6W (resistive) @ 24VDC 6VA (inductive, unity
Nominal Load Max.
power factor)
High Speed Output (PWM) 1, Y0
Max. o/p frequency 1kHz
PWM Duty Cycle 0 to 100%
Analog I/O Specification
Analog Input Total Channels 2 Input channels (16 bit resolution)
0-20mA, 4-20mA &
Input Type
0-10VDC, 0-5VDC
Analog Output Total Channels 1 Output channels (12 bit resolution)
0-20mA, 4-20mA and
Output type
0-10VDC, 0-5VDC
Accuracy ± 0.2% of full scale @ 25°C
[Note: HMC3 I/O Module V2 Series only compatible with HMC2000/ HMC4000
Series Base Model]
SPECIFICATIONS
Environment & Approvals
Operating
0 to 60°C
Temperature**
Storage
-20 to 85°C
Temperature
Humidity 10 to 90% (Non-Condensing)
Short Circuit
Yes
Protection
Product 48mm x 108mm x 35.7mm
Dimensions (W x H x D)
Approvals CE, UL
Operating temperature: For UL 0 to 50
**
Dimension Details
C
°
