Quick Start Guide
HMC7-MIO-08
Description:
HMC7-MIO-08 I/O expansion module with four universal
analog inputs and two analog outputs.
Contents:
 One HMC7-MI0-08 (in plastic bag )
 Quick Start Guide
Programming software (MAPware-7000), cables, and power
supply purchased separately.
Specifications:
Power: 3.9VDC from HMC7000 base
24VDC 80mA max user supplied
Analog Inputs: Four (Voltage, Millivolts, Current,
RTD(PT100( α1, α2), PT1000) and
Thermocouple (TYPE J, K)
Resolution: 16 bit
Voltage Ranges: 0 to 10 V, 0 to 5 V, -10 to +10V
Millivolt Ranges: 0-100mV, 0-50mV
RTD Ranges: PT100 α1: -200 to 850°C
PT100 α2: -100 to 457°C
PT1000: -200 to 850°C
Thermocouple Ranges: Type J: -210 to 1200°C
Type K: -200 to 1373 °C
Input Impedance: 1 MΩ (V,mV, TC, RTD)
100Ω (mA)
Maximum Input: +/- 30 VDC, 30mA
Accuracy: 1% of full scale
Analog Outputs: 2 (0 to 5V, 0 to 10V; 0 to 20mA, 4-20mA)
Resolution: 16 bit
Accuracy: 1% of full scale
Load: 1 KΩ (Min) for V
500Ω (Max) for mA
Connection Method: Removable terminals (3.81 mm pitch)
Operating Temp: 0 to 55° C
Humidity: 10% to 90% (non-condensing)
Dimensions: 3.11 x 1.18 x 1.42 inches
[79x30x36mm]
Doc. No. 1011-0715

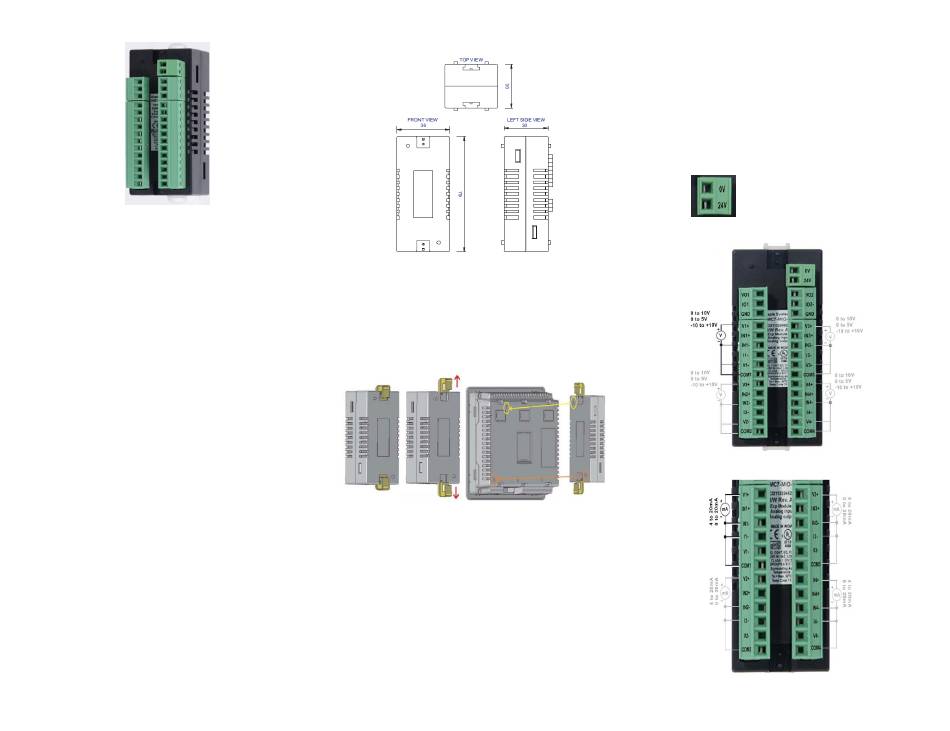

Dimensional Details:
Mounting Module to HMC7000:
The HMC7 I/O module must be mounted onto the back of a
HMC7000 Series unit using one of the HMC expansion ports.
When locating equipment behind the HMC7000 ensure that AC
power wiring, PLC output modules, contactors, starters, relay
and any other source of electrical interference are located
away from the HMC7000. Make sure that variable speed drives
and switching power supplies are located away from the unit.
Step 1
Step 1: Pull the two white lock connectors out from the center
of the module.
Step 2: Place the module onto the HMC7000 expansion port so
that the I/O module interconnect plug can attach to the
HMC7000 socket. Note: remove the protective tab on the
HMC7000 expansion port to expose the socket.
Step 3: Push down the lock connectors to safely secure the I/O
Expansion module.
Maple Systems Inc., 808 134th Street SW, Suite 120, Everett, WA 98204-7333 • www.maplesystems.com
Step 2 Step 3
Page 1 of 2
Wiring I/O Expansion Modules:
The HMC7 I/O module has green block terminals that are used
to wire the module to the digital input devices (i.e. switches,
contacts, etc). The block terminals can be physically removed
from the module to facilitate connection (18-gauge wire
recommended). Note: A 3/32" flat blade screwdriver should be
used to tighten the screws of the terminal block.
Note: 24VDC must be supplied to the pins as marked or the
module will not be recognized by the HMC or function.
Connection for analog voltage inputs:
Connection for analog current inputs:
Rev. 05, 05/18/2016
.
